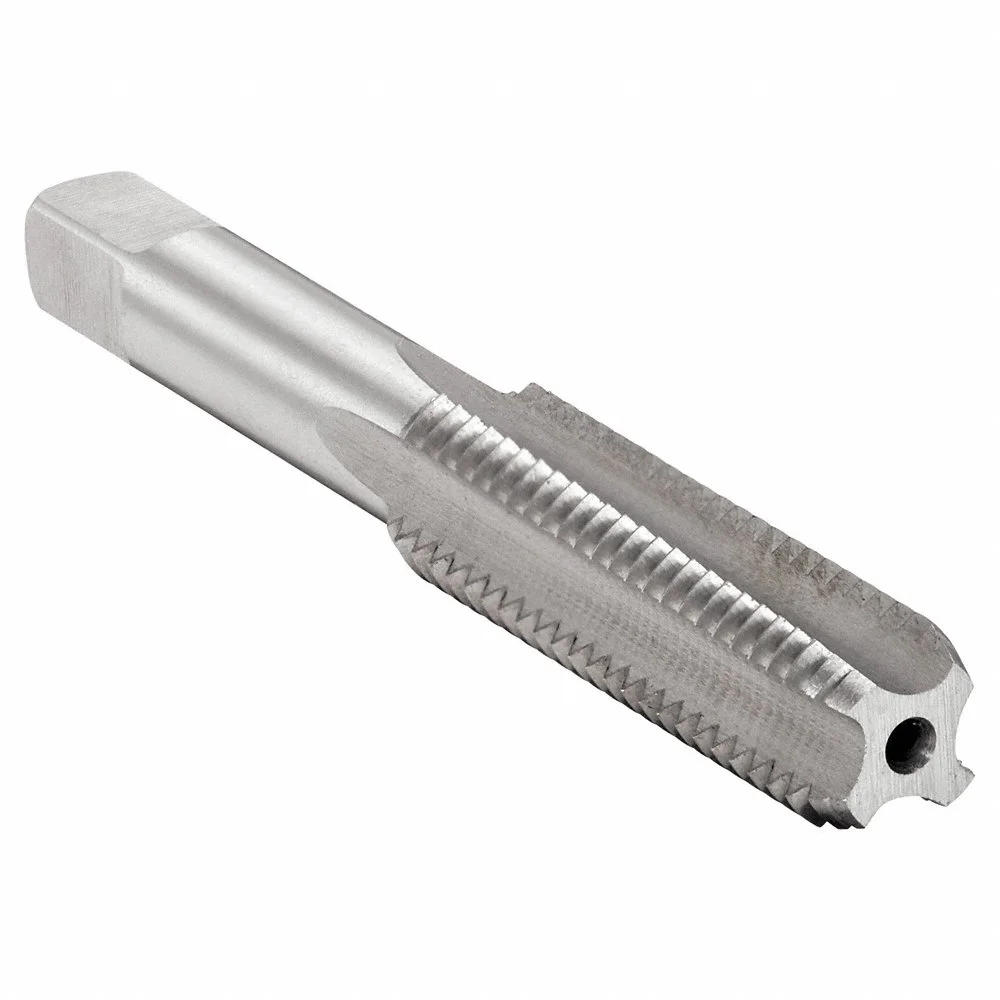

WESTWARD 2LWT5 Hand Tap Bottom High Speed Steel M18 x 1.5
Item: AC2PTUModel: 2LWT5
7 In Stock
Ships within 2 days via
10.00% off
€36.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hand Tap |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 41/64" |
| Finish | Uncoated |
| Material | High Speed Steel |
| Material Grade - Machining | Grade M2 |
| Measurement System | Metric |
| Number Of Flutes | 4 |
| Overall Length | 4 1/32" |
| Pitch Diameter Limits | D7 |
| Pitch Type | 1.5 mm |
| Primary Material Application | All Materials |
| Shank Dia. | 17/32" |
| Shank Type - Machining | Straight |
| Size | M18 |
| Square Size | 0.406" |
| Standards | Asme |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Style | Straight Flute |
| Tap Type | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 1 13/16" |
| Thread Limit | D7 |
| Thread Limit/class Of Fit | D7 |
| Thread Pitch | 1.5 mm |
| Thread Size | M18 x 1.5 |
| Thread Standard | Metric Fine |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 0.51 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 4.57 |
| HS code | 8207403000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Number Of Flutes | Overall Length | Thread Length | Thread Size | Thread Limit | Shank Dia. | Tap Type | Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2LWF1 | 4 | 2 1/2" | 1" | 1/4"-20 | H5 | 1/4" | Tapered | Coarse | €9.70 | |
 |
2LWF5 | 4 | 2 23/32" | 1 1/8" | 5/16"-18 | H5 | 5/16" | Taper | Coarse | €10.39 | |
|
2LWF7 | 4 | 2 15/16" | - | 3/8"-16 | H5 | 3/8" | Taper | Coarse | €14.13 | |
|
2LWG2 | 4 | 3 3/8" | 1 21/32" | 1/2"-13 | H5 | 23/64" | Taper | Coarse | €18.47 | |
|
2LWG5 | 4 | - | 1 21/32" | - | - | 0.429" | Taper | Fine | €26.27 | |
 |
2LWH1 | 3 | 1 7/8" | 9/16" | #4-40 | H2 | 9/64" | Plug | Coarse | €16.15 | |
|
2LWH3 | 4 | 2 1/8" | 3/4" | #8-32 | H3 | 5/32" | Plug | Coarse | €12.71 |
