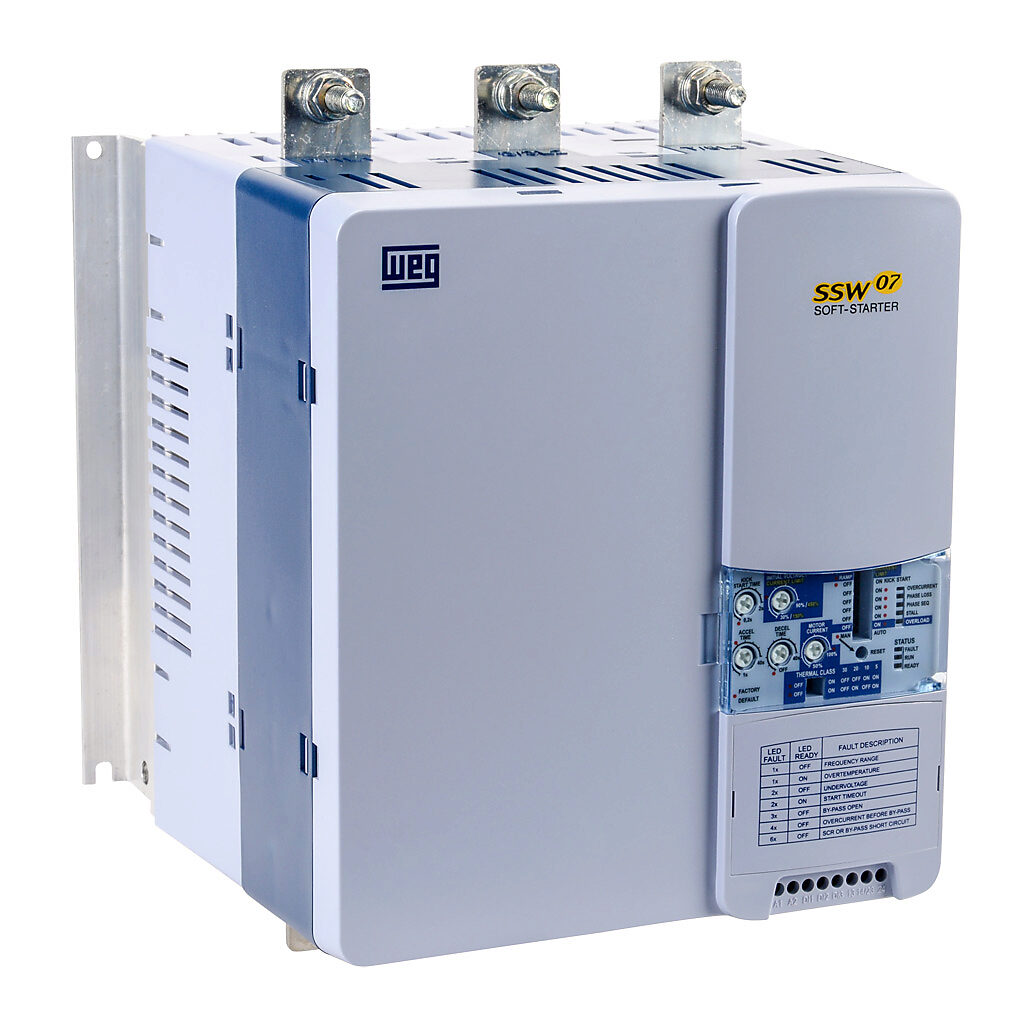

WEG SSW070171T5SZ Starter, 171 A | BC7RUH

WEG SSW070171T5SZ 10233130 Starter, 171 A

Item: BC7RUHModel: SSW070171T5SZCross Ref: 10233130

Check Availability

In Stock

Get it by Tuesday, Aug 25

€2,965.51 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Starter
230v Heavy Duty Hp	50 hp
230v Std. Duty Hp	60 hp
460v Heavy Duty Hp	100 hp
460v Std. Duty Hp	125 hp
575v Heavy Duty Hp	125 hp
575v Std. Duty Hp	150 hp
Amps	171A
Amps Limit	Yes
Amps Limitation Ramp	Programammable Via Optional
Control Power Requirement	110-240V AC
Controller Type	Basic
Direct On Line Start	Programmable Via Optional
Enclosure Rating	IP00
Enclosure Type	Open, Enclosed
Environment	Panel Mount
Frame	3
Frame Size	3
Heavy Duty Amps	94A
Input Voltage	220-575V AC
Inside Delta (6 Leads)	No
Internally Bypassed	Yes
Ip Rating	Ip00, Ip20
Modbus-rtu Rs-232	Available With Optional
Modbus-rtu Rs-485	Available With Optional
Modbus-rtu Usb	No
Mounting	Panel, Wall
No. Of Controlled Output Phases	3
No. Of Input Phase	3
No. Of Output Phases	3
Nominal Input Voltage	220-240/440-480/575V AC
Nominal Output Voltage	220-240/440-480/575V AC
Output Frequency	50-60 Hz
Output Type	SCR
Parameterization Via Keypad	Available With Optional
Parameterization Via Software	Superdrive G2
Parameterization Via Trimpots And Dip Switches	Yes
Phase	3
Power Supply	220-575V
Pump Control	Programmable Via Optional
Sccr Rating	65 kA
Series	SSW07 Series
Softplc Ladder Programming	No
Standard (3 Leads)	Yes
Standard Duty Amps	130A
Starting Duty Cycle	AC-53b 3-30:1170
Starting Regime (with Ventilation Kit)	AC-53b 3-30:330
Starts Per Hour	3
Temp.	0°C to 55°C
Torque Control	No
Trip Class	Class 5, Class 10, Class 20, Class 30
Voltage Ramp	Yes
Voltage Ramp And Amps Limit	No

Shipping Info:

Ship weight (kg)	8.5
Ship height (cm)	15.24
Ship length (cm)	15.24
Ship width (cm)	15.24
Country of Origin	BR

Product Variants

Model	Amps	Height	Frame	Amps Limitation Ramp	Starting Duty Cycle	Frame Size	230v Std. Duty Hp	Heavy Duty Amps	Price
SSW070412T5SH2Z	412A	-	4	Programammable	AC-53b 3-30:330	-	-	-	€5,682.71
SSW070085T5SZ	85A	-	2	Programammable	AC-53b 3-30:1170	2	30 hp	60A	-	RFQ
SSW070061T5SZ	61A	8 1/5"	2	Programammable	AC-53b 3-30:1170	2	25 hp	15A	€1,654.61
SSW070200T5SZ	200A	-	3	Programammable	AC-53b 3-30:1170	3	75 hp	125A	€3,515.29
SSW070130T5SZ	130A	-	3	Programammable	AC-53b 3-30:1170	3	50 hp	94A	€2,334.51
SSW070024T5SZ	24A	6.38"	1	Programammable	AC-53b 3-30:330	1	7 1/2 hp	20A	€1,813.68
SSW070045T5SZ	13A	8 1/5"	2	Programammable	AC-53b 3-30:1170	2	15 hp	31A	€2,136.42
