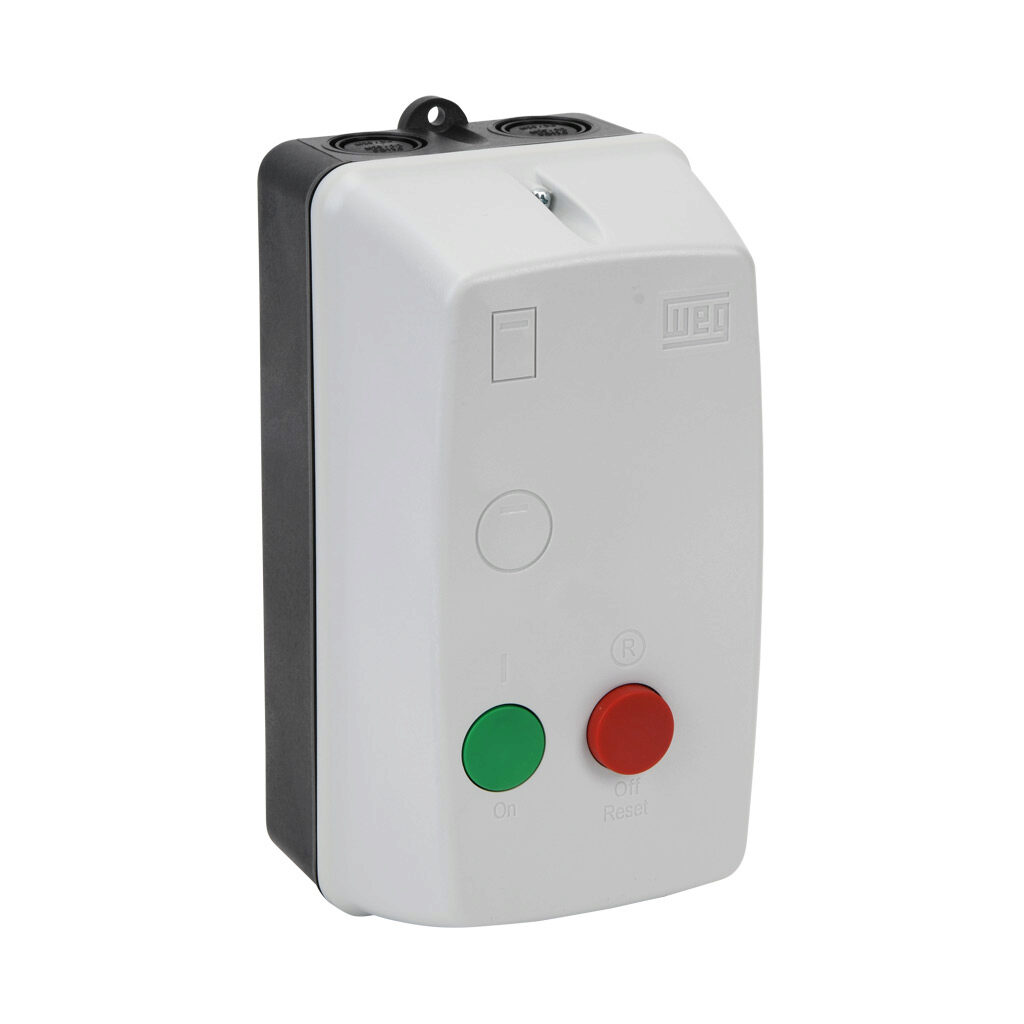

WEG PESWS-B9D15AX-RM61 14942493 Enclosed Starter, 1 Phase, 9A Rated, 4-6.3 A Range, On/Off Control, Plastic Crate, 120V50/60HZ
Item: BF6PKXModel: PESWS-B9D15AX-RM61Cross Ref: 14942493
7 In Stock
Ships within 2 days via
€133.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Magnetic Motor Starter |
| Amps | 9A |
| Assembly Method | Plastic Crate |
| Assembly Method (start Key) | Plastic Crate |
| Auxiliary Contacts | NO/NC |
| Button Color | Not Specified |
| Button Type | Unspecified |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Connection Type | Screw Terminal |
| Control Devices | A On Off Button |
| Control Voltage | 120V |
| Degree Of Protection | NEMA 4X |
| Enclosure Type | NEMA 4/4X , NEMA 4X |
| Frequency | 60/50 Hz |
| Full Load Amps | 4-6.3A |
| Hp | 1/2 hp , 1/4 hp, 1/2 hp |
| Included | Start, Stop And Reset Pushbuttons |
| Maximum Power Rating | Not Applicable |
| Measuring Tool And Accessories | Not Applicable |
| Mounting | Wall |
| No. Of Phase | 1 |
| No. Of Poles | 2 |
| Over Load | 4-6.3A |
| Overload Relay | 4-6.3A |
| Overload Type | Bi-Metallic |
| Phase | 1 |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Rated Amps (ac-3) | 9A (CWB9) |
| Rated Operational Voltage | 600V |
| Reference | PESWS |
| Sccr Rating | 5 kA |
| Series | PESWS Series |
| Start Type | Direct Single Phase |
| Starter Type | Non Combination |
| Starters Complements | Does Not Contain |
| Trip Class | Class 10 |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 1.01 |
| Ship height (cm) | 22.95 |
| Ship length (cm) | 11.26 |
| Ship width (cm) | 12.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Coil Voltage | Frequency | Amps | Type | Hp | Control Voltage | Start Type | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PESWS-12V24AX-RM31 | 208-240V | - | - | Start/Stop And Reset | 2 hp | 180-208/208-240V | Direct Single Phase | - | €162.64 | |
 |
PESWS-25V18AX-RM33 | 120V | - | - | Start/Stop And Reset | 1 1/2 hp | 110/120V | Direct Single Phase | - | €174.91 | |
 |
PESWS-25V24EX-RM33 | 208-240V | - | - | Reset Only | - | 180-208/208-240V | Direct Single Phase | - | €161.47 | |
 |
PESWS-9V18EX-RM28 | 120V | - | - | Reset Only | 0.33 hp | 110/120V | Direct Single Phase | - | €125.58 | |
 |
PESWS-50V24AX-RM38 | 208-240V | - | 50A | Start/Stop And Reset | 7 1/2 hp | 180-208/208-240V | Direct Single Phase | 208/230V AC | €420.93 | |
 |
PESWS-25V18EX-RM34 | 120V | - | - | Reset Only | - | 110/120V | Direct Single Phase | 115V AC | €161.47 | |
 |
PESWS-18V18EX-RM32 | 120V | - | - | Reset Only | - | 110/120V | Direct Single Phase | 115V AC | €149.81 |
