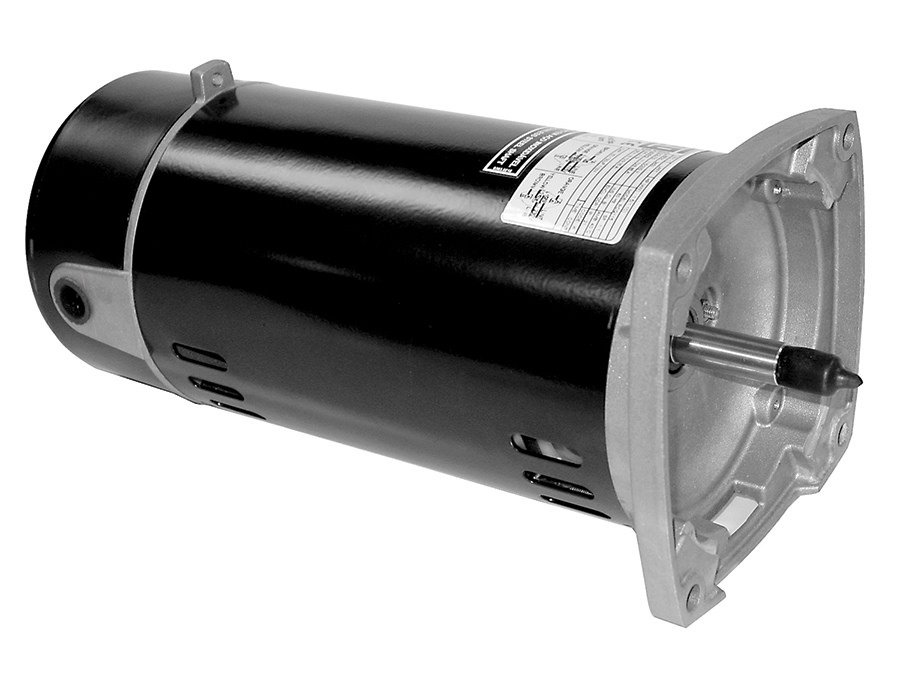

WEG PCQ125 10839756 Pool & SPA Motor, 2.5 HP, 3600 RPM, 230 V, 1 Phase, ODP, 48Y Frame, Square Flange-Start Capacitor-Low Service Factor
Get it by Friday, Feb 13
€596.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Application | Pool & Spa |
| Efficiency | 50% |
| Electrical Type | Capacitor Start |
| Enclosure Iec | IP21 |
| Enclosure Nema Rating | Open Dripproof |
| Enclosure Type | ODP |
| Frame | 48Y |
| Frequency | 60 Hz |
| Hp | 2 1/2 hp |
| Insulation Class | Class B |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA M48Y |
| Nema Mount | Square Flange |
| Number Of Poles | 2 |
| Output Hp | 2 1/2 hp |
| Output Kw | 1.9 kW |
| Output Rpm | 3450 RPM |
| Phase | 1 |
| Product Datasheet | weg-pcq125.pdf |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Thermal Protection | Automatic |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Full Load Amps | Service Factor | Voltage | Hp | Frame | No Load Amps | Torque | Output Kw | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

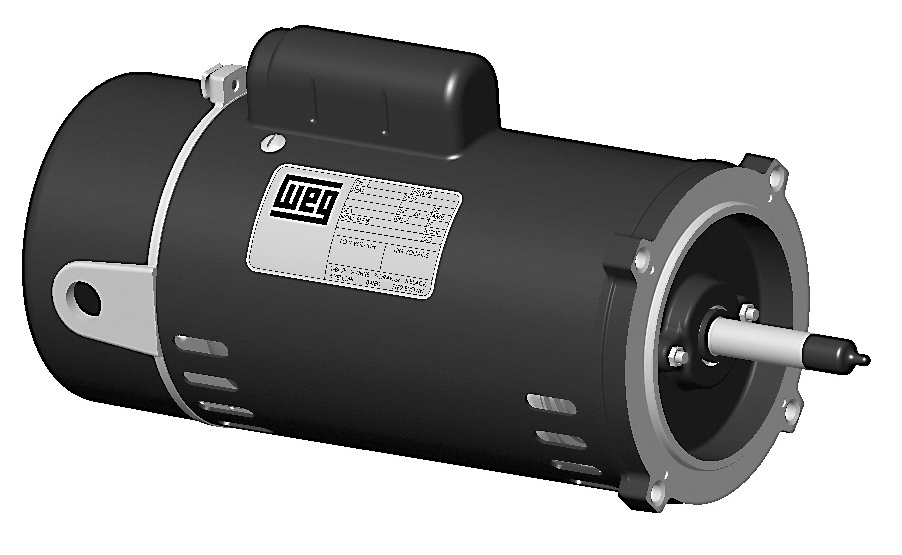

PCJ115 | 8.85/17.7A | 1 | 115/230V | 1 1/2 hp | 56J | 5.25/10.5A | 2.25 lbs.-ft. | 1.1 kW | €357.92 | |
![]() |
PCJ110 | 6.25/12.5A | 1 | 115/230V | - | 56J | 4.15/8.3A | 1.49 lbs.-ft. | 0.75 kW | €313.77 | |
![]() |
PCJ120 | 9.3A | 1.1 | - | - | 56J | 3.9A | 2.99 lbs.-ft. | 1.5 kW | €477.24 | |
![]() |
PCJ107 | 5.1/10.2A | 1.3 | 115/230V AC | 3/4 hp | 56J | 3.85/7.7A | 1.12 lbs.-ft. | 0.55 kW | €292.83 | |
![]() |
PCQ110 | 6.25/12.5A | 1 | 115/230V | - | 48Y | 4.15/8.3A | 1.49 lbs.-ft. | 0.75 kW | €328.10 | |
![]() |

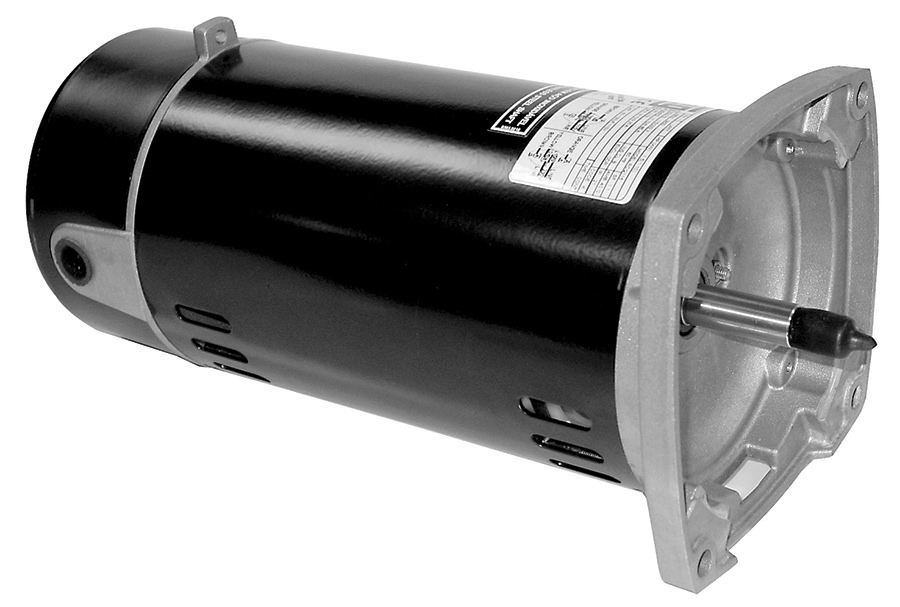

PCQ120H | 9.2A | 1 | 230V | - | 48Y | 3.6A | 2.97 lbs.-ft. | 1.5 kW | €596.53 | |
![]() |
PCQ120 | 9.3A | 1 | 230V | - | 48Y | 3.9A | 2.99 lbs.-ft. | 1.5 kW | €490.36 |
