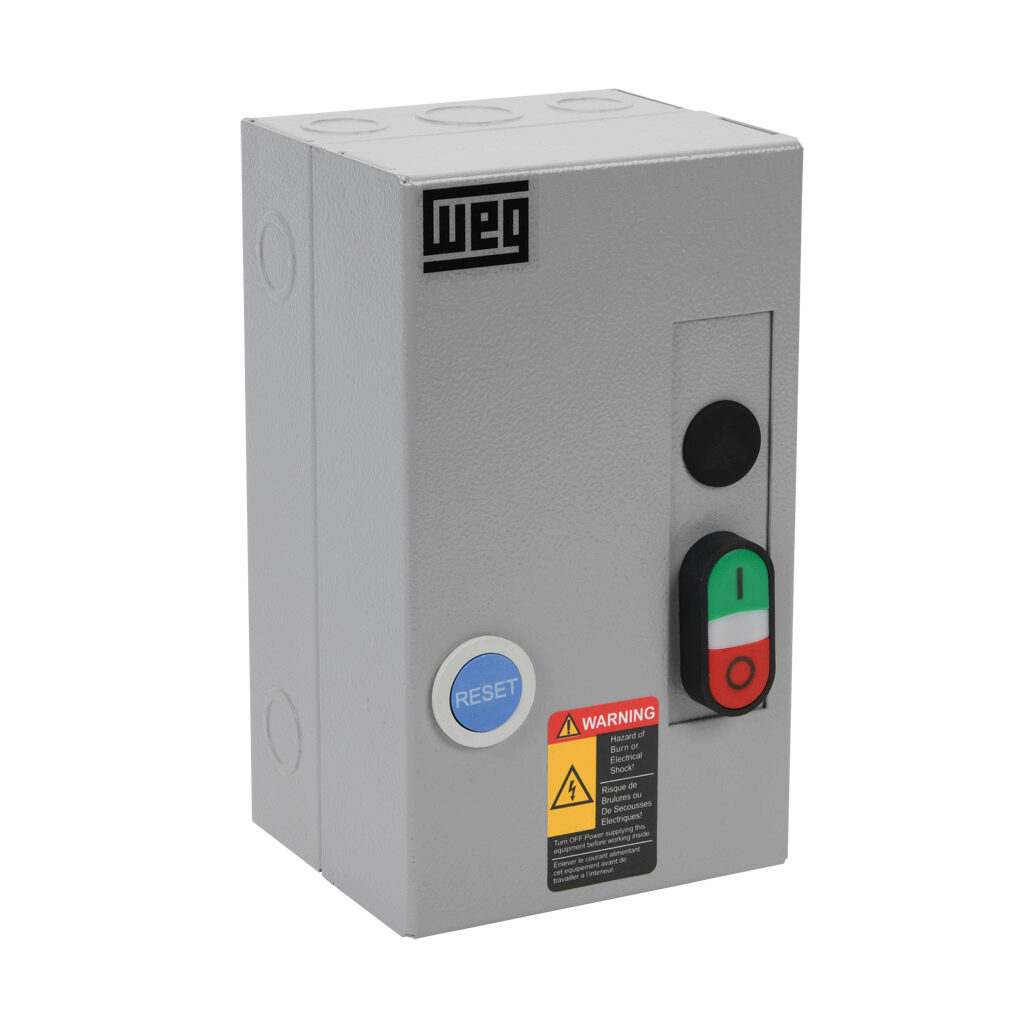

WEG ESWS-B9V24A-RM27 10711774 Magnetic Starters, 0.25 HP, 115V, 0.5 HP, 230 V, 1 Phase, NEMA 1, START/STOP/RESET
Item: CV6UCEModel: ESWS-B9V24A-RM27Cross Ref: 10711774
7 In Stock
Ships within 2 days via
€179.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Starter |
| Amps | 9A |
| Assembly Method | Metallic Crate |
| Assembly Method (start Key) | Metallic Crate |
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 180-208/208-240V AC |
| Connection Type | Screw Terminal |
| Control Voltage | 180-208/208-240V |
| Enclosure Type | NEMA 1 |
| Frequency | 60/50 Hz |
| Full Load Amps | 4-6.3A |
| Hp | 1/2 hp |
| Included | Start, Stop And Reset Pushbuttons |
| Mounting | Wall |
| No. Of Poles | 2 |
| Overload Relay | 4-6.3A |
| Overload Type | Bi-Metallic |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Product Datasheet | weg-esw-b12d15a-r30.pdf |
| Rated Operational Voltage | 600V |
| Sccr Rating | 5 kA |
| Series | ESWS Series |
| Start Type | Direct Single Phase |
| Starter Type | Non Combination |
| Trip Class | Class 10 |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 13.97 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Coil Voltage | Amps | Start Type | Overload Relay | Series | Hp | Contact Rating | Control Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ESWS-B12D15A-RM30 | 120V AC | 12A | Direct Single Phase | 8-12.5A | ESWS Series | 2 hp | - | 120V | €246.60 | |
 |
ESWS-B12V24A-RM30 | 180-208/208-240V AC | 12A | Direct Single Phase | 8-12.5A | ESWS Series | 2 hp | - | 180-208/208-240V | €204.80 | |
 |
ESWS-B18D15A-RM31 | 120V AC | 18A | Direct Single Phase | 10-15A | ESWS Series | 2 hp | - | 120V | €257.40 | |
 |
ESWS-B18D15A-RM32 | 120V AC | 18A | Direct Single Phase | 11-17A | ESWS Series | 3 hp | - | 120V | €257.40 | |
 |
ESWS-B18V24A-RM32 | 180-208/208-240V AC | 18A | Direct Single Phase | 11-17A | ESWS Series | 3 hp | - | 180-208/208-240V | €257.40 | |
 |
ESWS-B25D15A-RM33 | 120V AC | 25A | Direct Single Phase | 15-23A | ESWS Series | 3 hp | - | 120V | €268.20 | |
 |
ESWS-B25V24A-RM33 | 180-208/208-240V AC | 25A | Direct Single Phase | 15-23A | ESWS Series | 3 hp | - | 180-208/208-240V | €222.98 |
