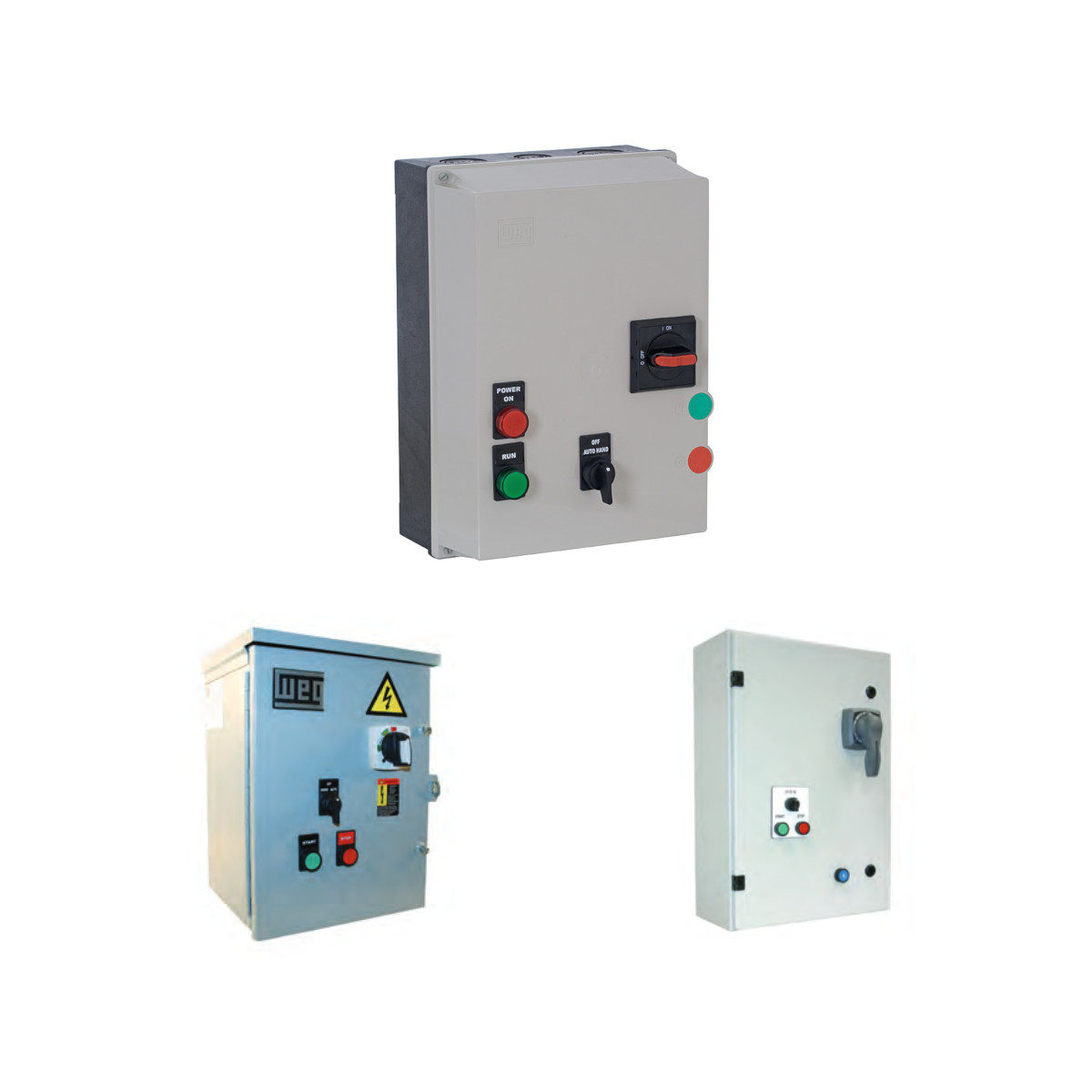

WEG ESWF-40T04N4-D14 14641477 Magnetic Starter, 10/10/20/25 HP, 200/230/460/575 V, 480 / 120 Control V, NEMA 4, F-2, H-O-A Selector Switch, On/Off, Rotary Handle, Reset
Get it by Monday, Aug 24
€1,608.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Control Options | Hand/Off/Auto Selector Switch |
| Control Power Transformer | 100 VA |
| Control Power Transformer Type | Open |
| Control Voltage | 120V |
| Disconnect Switch Type | Circuit Breaker Rotary Handle Disconnect |
| Enclosure Type | NEMA 4 , Type 4/12 |
| Frequency | 60 Hz |
| Hp | 10 hp, 20 hp, 25 hp , 20 hp |
| Main Voltage | 460V |
| Mounting Position | Wall Mount |
| Nominal Depth | 8" |
| Nominal Width | 12" |
| Panel Type | Across The Line |
| Phase | 3 |
| Sccr Rating | 5 kAIC |
| Series | ESWF Series |
| Voltage | 200/230/460/575V AC |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 30.48 |
Product Variants
| Model | Voltage | Hp | Enclosure Type | Main Voltage | Control Voltage | Nominal Width | Sccr Rating | Nominal Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ESWF-95T04N4-D23 | 200/230/460/575V AC | 60 hp | NEMA 4 | 460V | 120V | 16" | 5 kAIC | 20" | €2,450.11 | |
| ESWF-50T04N4-D19 | 230/460/575V AC | 25 hp | NEMA 4 | 460V | 120V | 12" | 5 kAIC | 16" | €1,604.23 | |
| ESWF-40V18N4-D14 | 200/230/460/575V AC | 20 hp | NEMA 4 | 460V | - | - | - | - | €1,457.98 | |
| ESWF-50V24N4-D19 | 230/460/575V AC | 25 hp | NEMA 4 | 230V | - | - | - | - | €1,483.31 | |
| ESWF-40V24N3-D14 | 200/230/460/575V AC | 20 hp | NEMA 3R | 230V | - | - | - | - | €1,085.19 | |
| ESWF-9V47N4-D07 | 200/230/460/575V AC | 1 1/2 hp | NEMA 4 | 460V | - | - | - | - | €1,063.49 | |
| ESWF-9V24N4-D09 | 200/230/460/575V AC | 3 hp | NEMA 4 | 230V | - | - | - | - | €1,063.49 |
