Retaining Washers

Filter

Retaining washers are suitable for holding assemblies that are subjected to excessive vibration, increased torque, heat or corrosion. Raptor Supplies offers a wide array of retaining washers...Read more

APPROVED VENDOR -

Spring Steel Retaining Washers

APPROVED VENDOR 4HFU9A
APPROVED VENDOR 4HFV1B
APPROVED VENDOR 138660003C

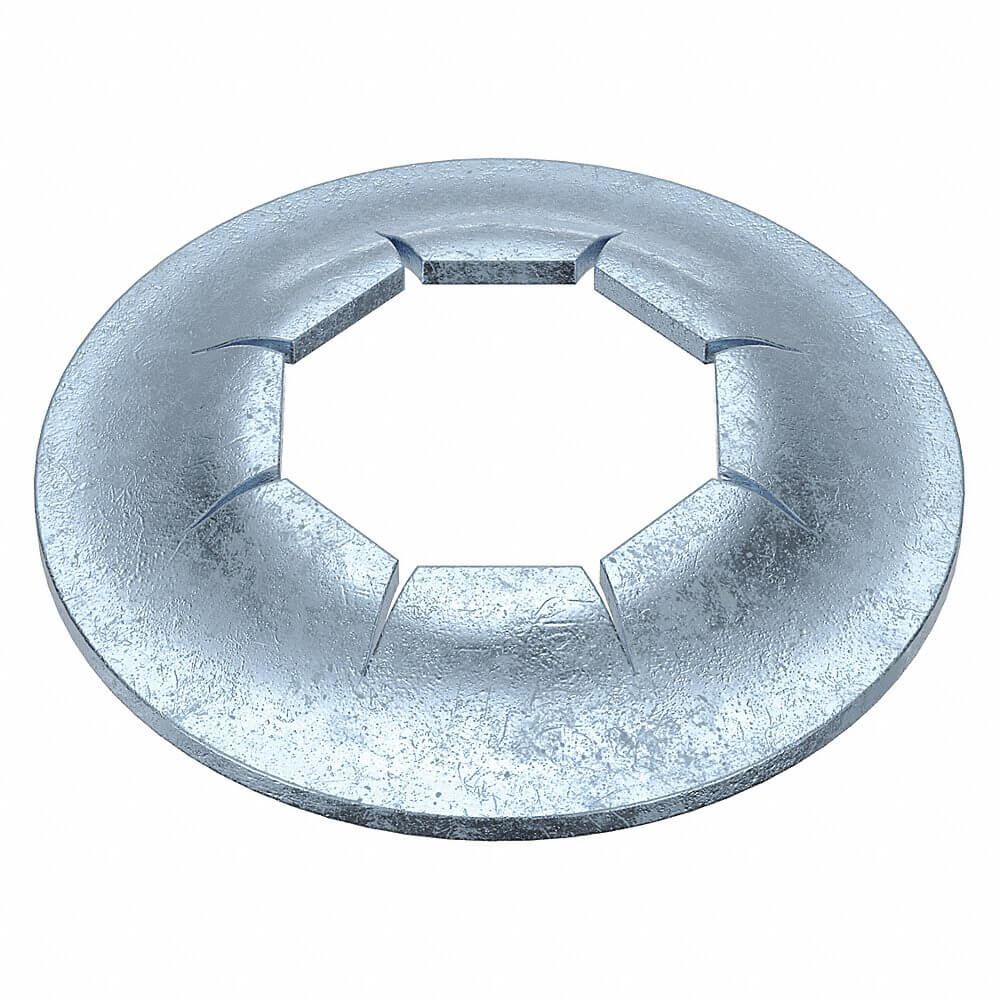

APPROVED VENDOR 138638003D
APPROVED VENDOR 4HFV2E

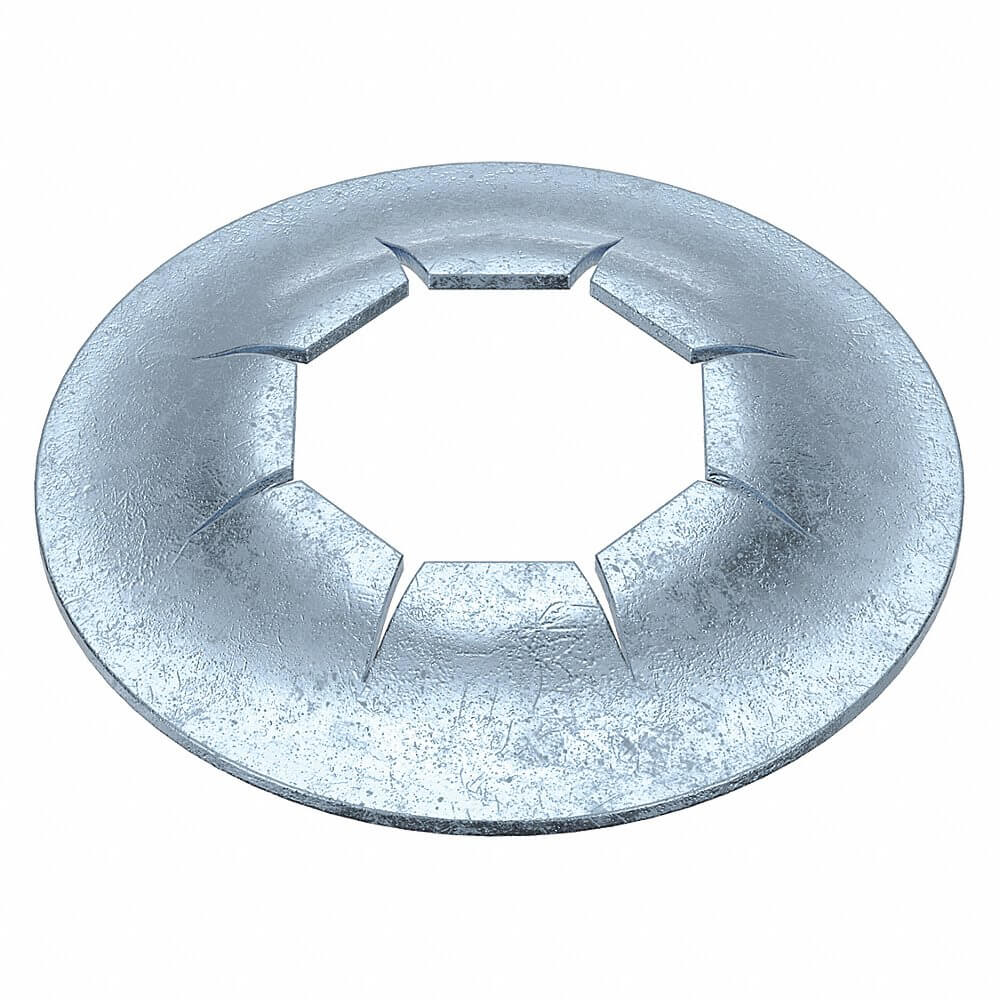

APPROVED VENDOR 4HFW5F
APPROVED VENDOR 4HFW6G

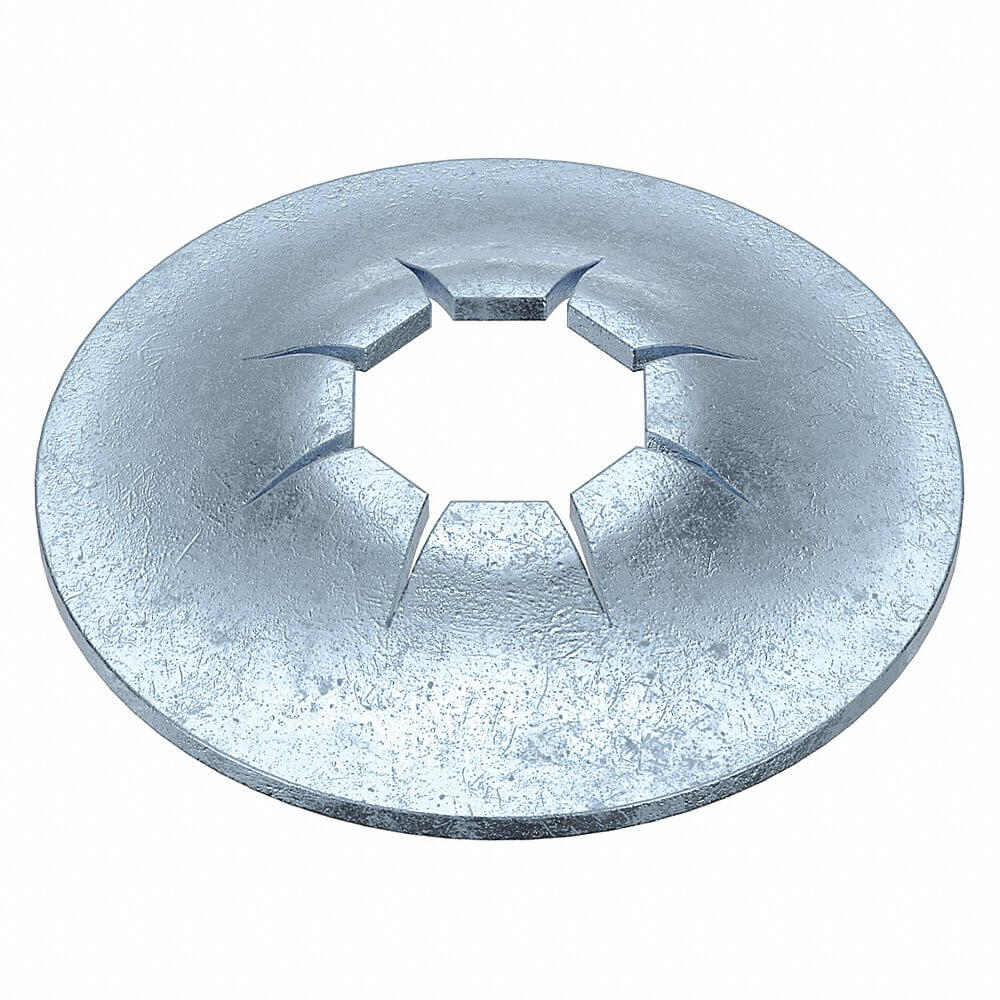

APPROVED VENDOR 4HFW1H
APPROVED VENDOR 4HFV4I

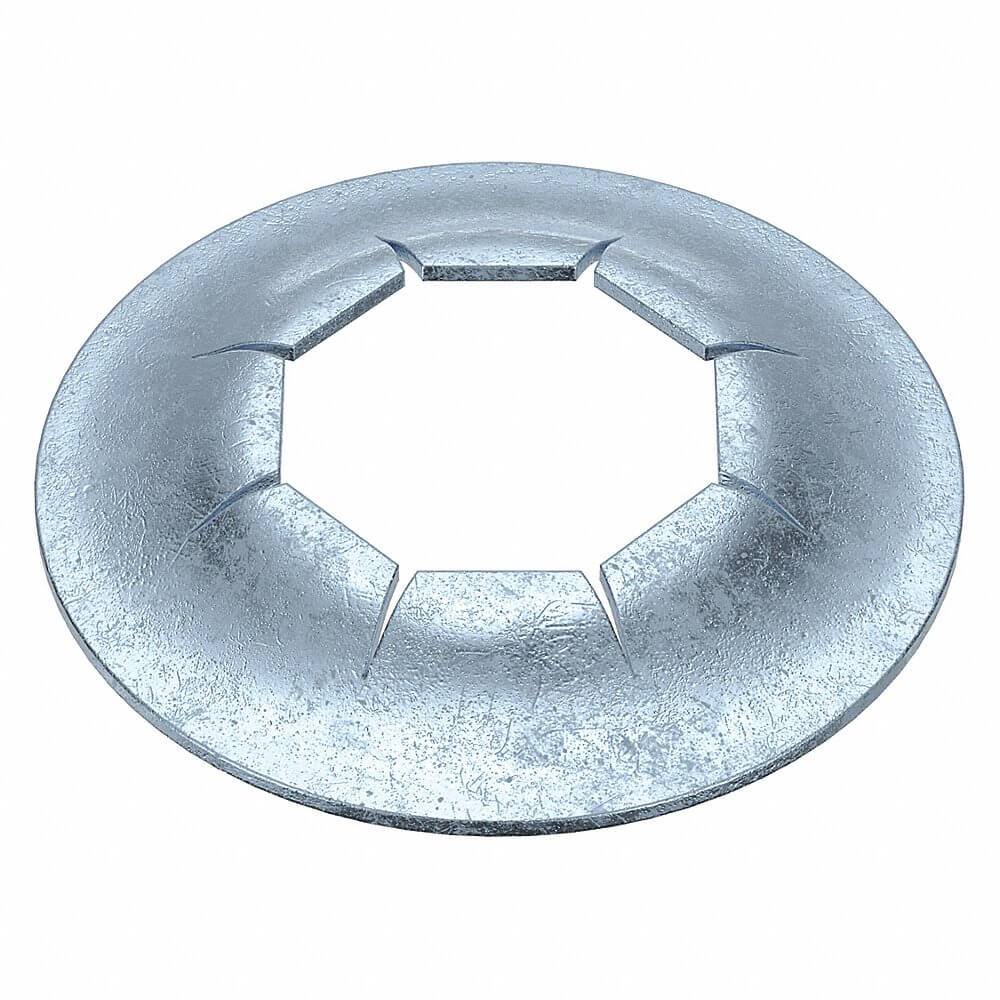

APPROVED VENDOR 4HFW9J

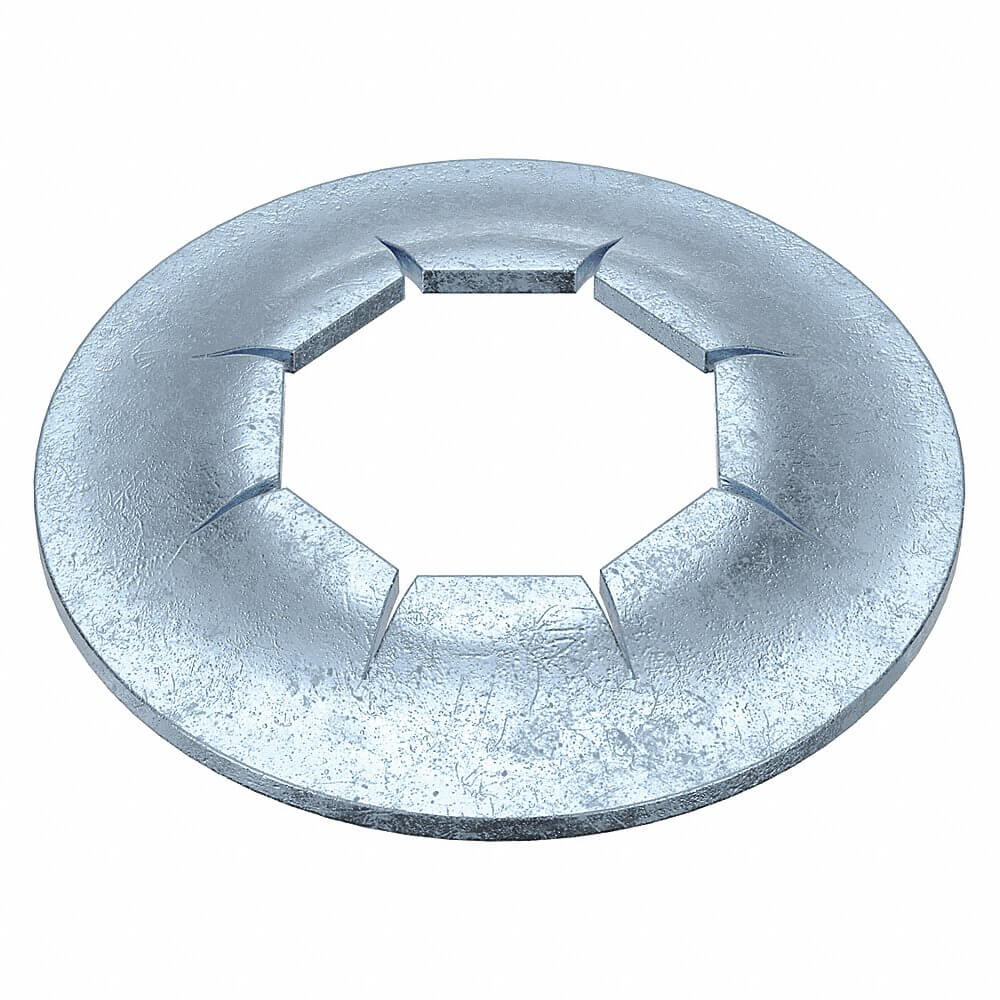

APPROVED VENDOR 4HFX1K

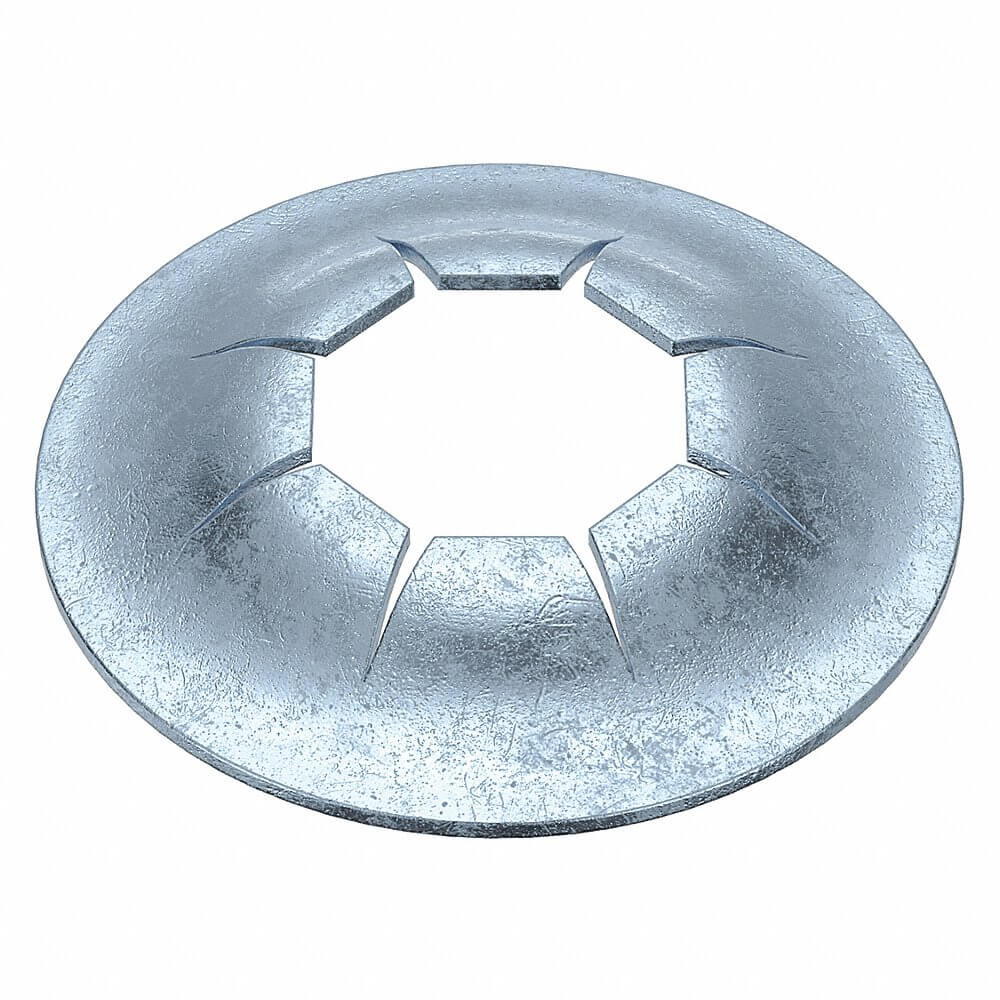

APPROVED VENDOR 4HFW2L

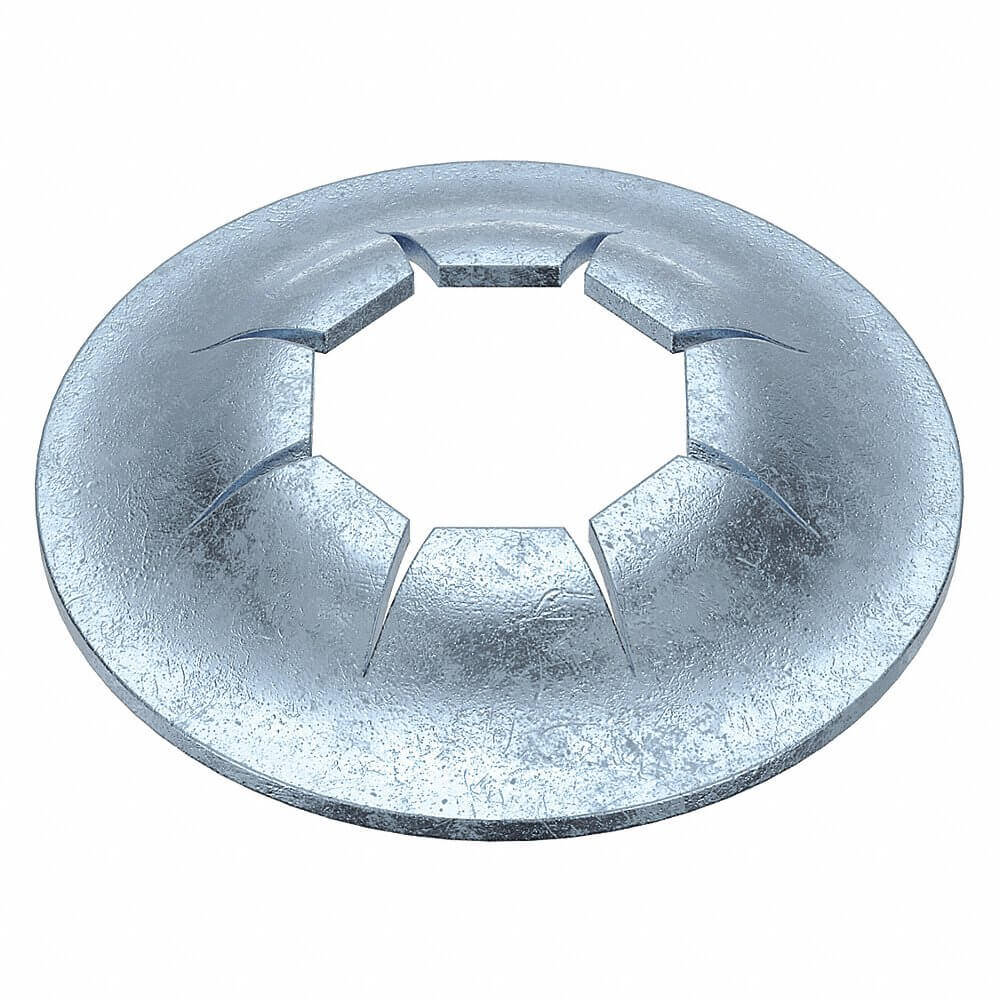

APPROVED VENDOR 4HFW3M
APPROVED VENDOR 138615002N

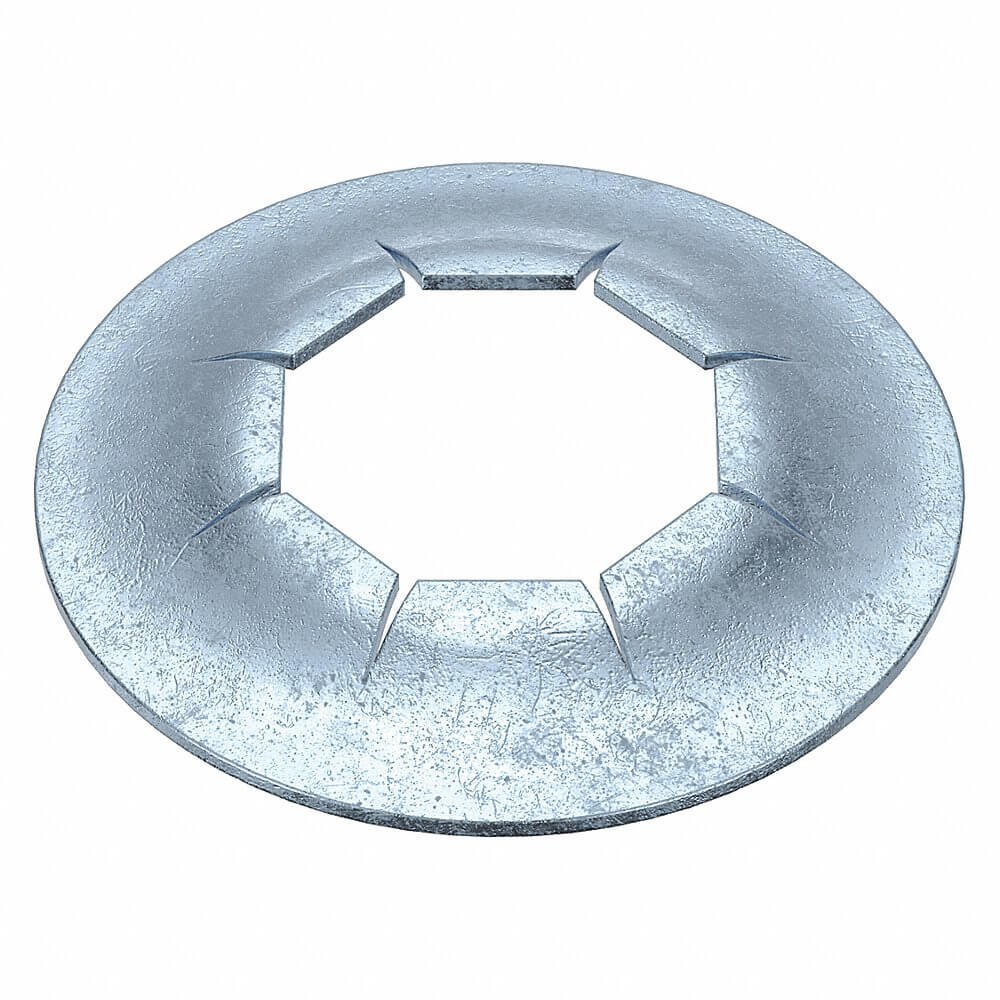

APPROVED VENDOR 4HFW7O

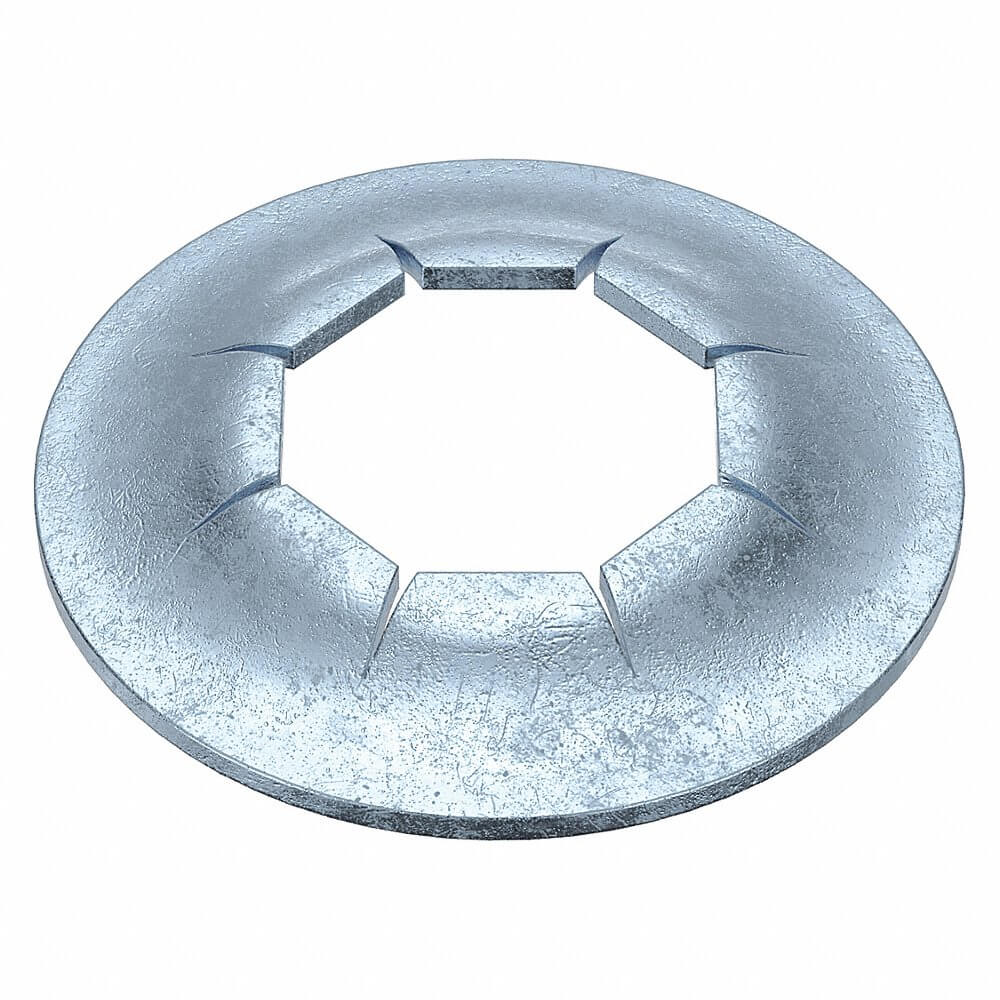

APPROVED VENDOR 138631002P
APPROVED VENDOR 138657002Q
APPROVED VENDOR 138659004R

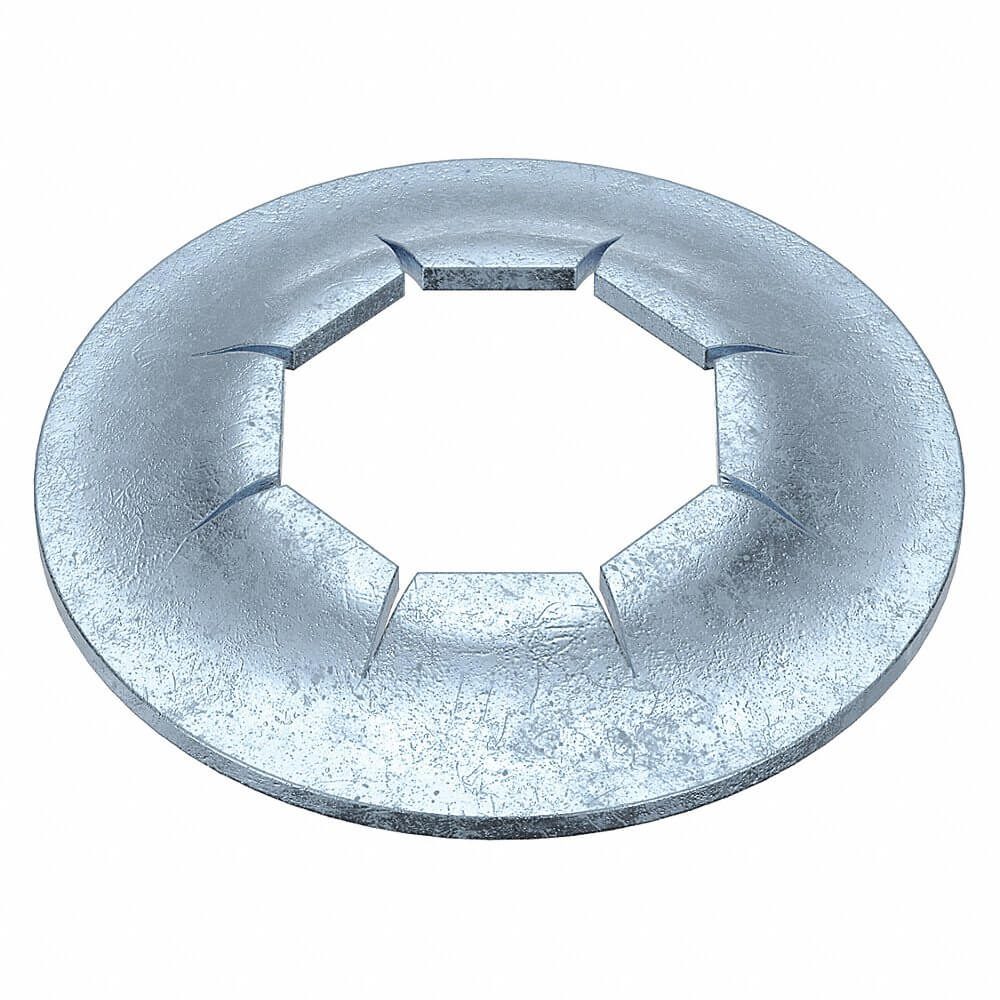

APPROVED VENDOR 138637001S

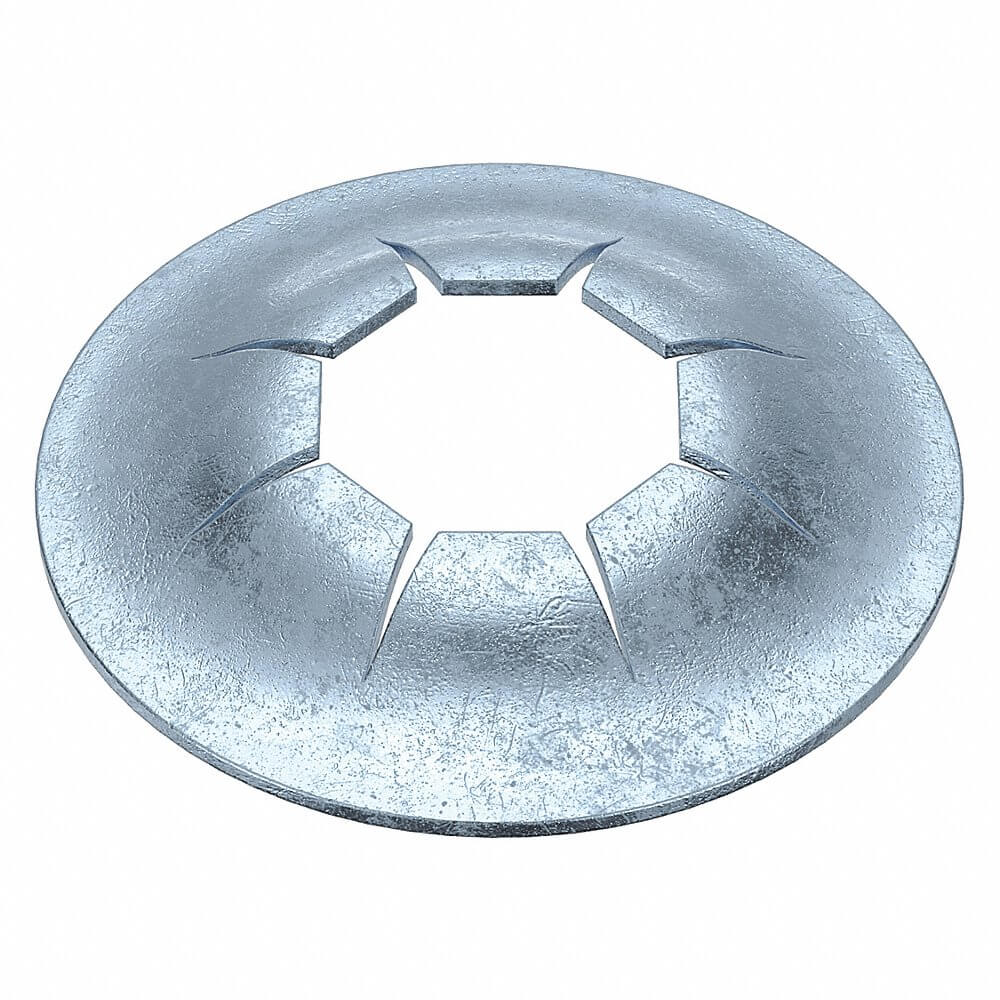

APPROVED VENDOR 138580001T
StyleModelFits Bolt SizesInside Dia.Outside Dia.ThicknessOutside Dia. ToleranceThickness TolerancePricePkg. Qty.
A4HFU9#80.136"3/8"0.01"-0.01" to +0.01"-€30.11100
B4HFV1#104/25"7/16"0.012"-0.01" to +0.01"-€34.56100
C1386600031/2"0.463"15/16"0.015"-0.01" to +0.01"-€72.79100
D1386380031/2"0.73"1"0.035"-0.005" to +0.005"-0.003" to +0.003"€27.2850
E4HFV21/4"1/4"1/2"0.01"-0.01" to +0.01"-€36.04100
F4HFW51/4"0.388"17/32"0.012"-0.005" to +0.005"-0.003" to +0.003"€25.67200
G4HFW61/4"0.388"17/32"0.016"-0.005" to +0.005"-0.003" to +0.003"€21.52200
H4HFW11/8"0.228"3/8"0.013"-0.005" to +0.005"-0.003" to +0.003"€14.66200
I4HFV43/8"0.34"25/32"0.015"-0.01" to +0.01"-€54.58100
J4HFW93/8"0.546"3/4"0.017"-0.005" to +0.005"-0.003" to +0.003"€40.12200
K4HFX13/8"0.546"3/4"0.026"-0.005" to +0.005"-0.003" to +0.003"€11.8750
L4HFW23/16"8/25"7/16"0.01"-0.005" to +0.005"-0.003" to +0.003"€18.65200
M4HFW33/16"8/25"7/16"0.014"-0.005" to +0.005"-0.003" to +0.003"€17.27200
N1386150023/32"0.161"0.195"0.01"-0.005" to +0.005"-0.003" to +0.003"€21.23200
O4HFW75/16"0.456"5/8"0.014"-0.005" to +0.005"-0.003" to +0.003"€25.41200
P1386310025/16"0.456"5/8"0.021"-0.005" to +0.005"-0.003" to +0.003"€32.66200
Q1386570025/16"0.274"5/8"0.013"-0.01" to +0.01"-€38.21100
R1386590047/16"13/32"27/32"0.015"-0.01" to +0.01"-€60.13100
S1386370017/16"0.638"7/8"0.029"-0.005" to +0.005"-0.003" to +0.003"€19.3450
T1385800017/32"0.388"17/32"0.012"-0.005" to +0.005"-0.003" to +0.003"€24.84200
MICRO PLASTICS -

Nylon Retaining Washers

MICRO PLASTICS 16FWRT004032A

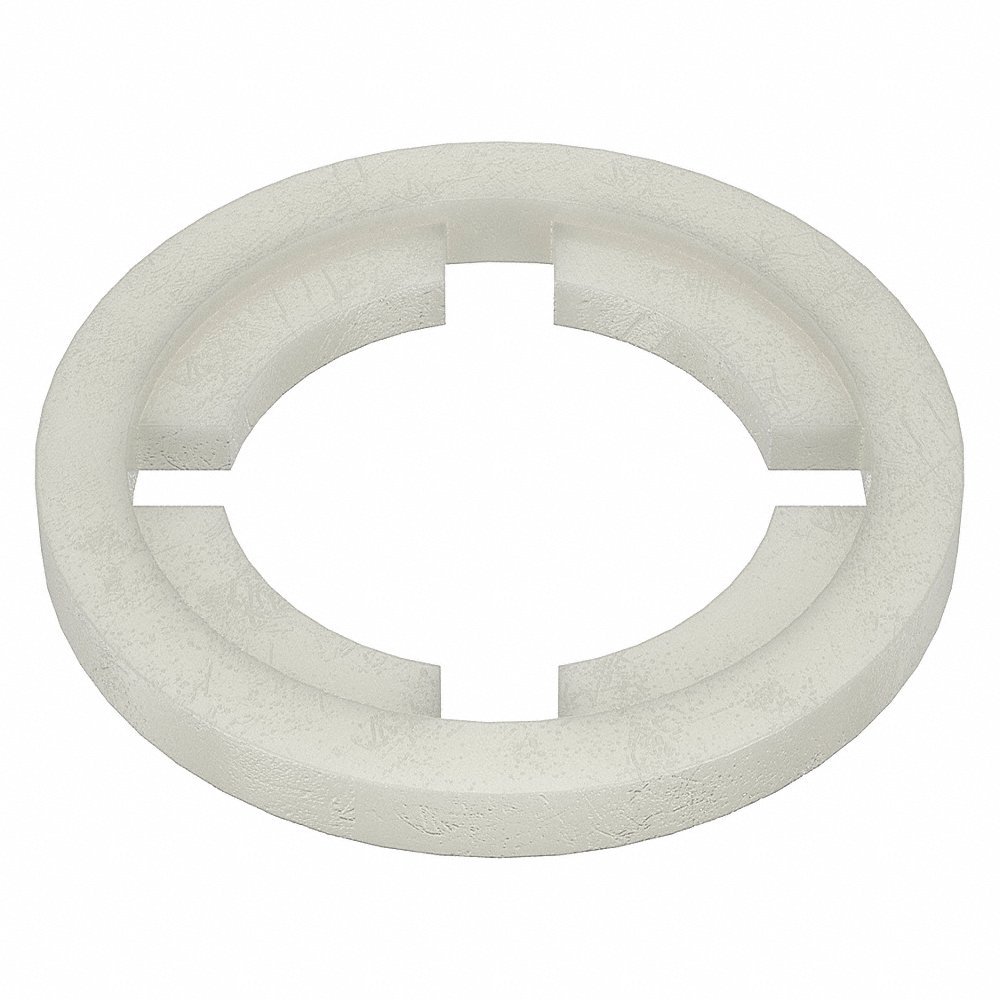

MICRO PLASTICS 16FWRT006032B

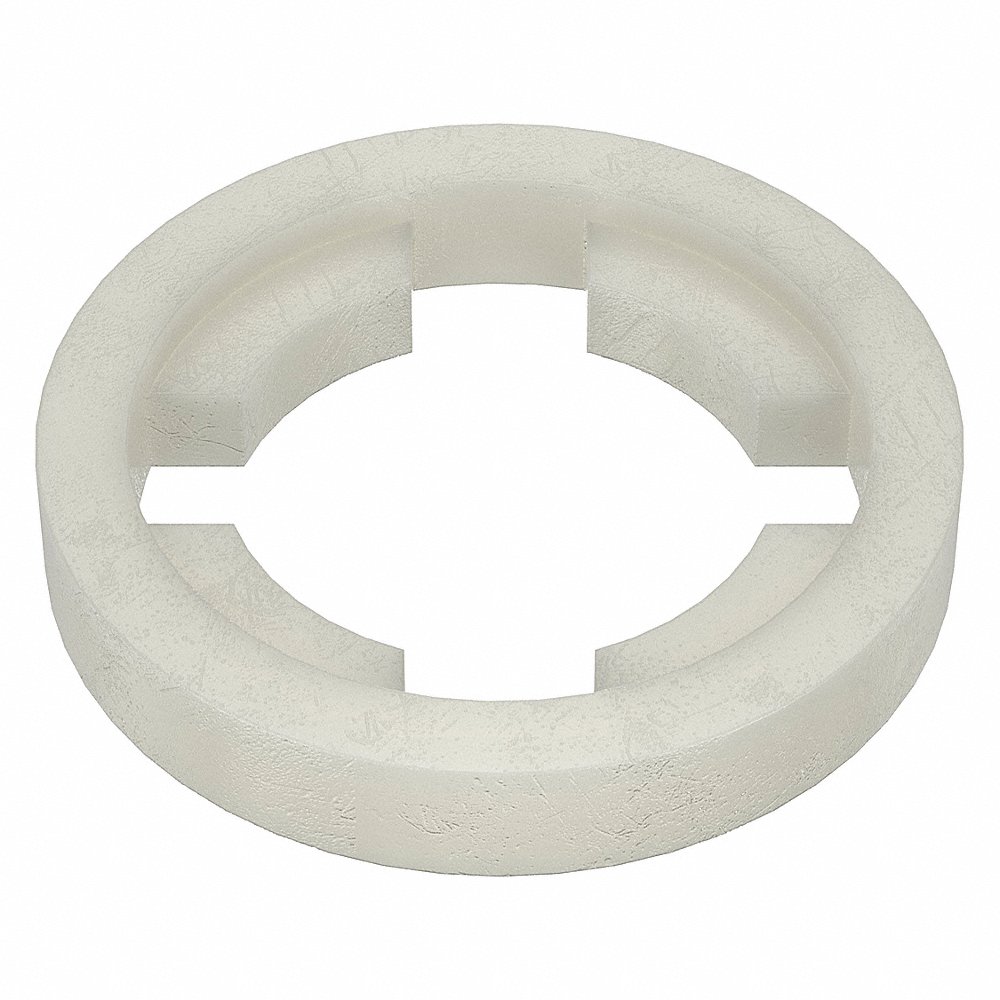

MICRO PLASTICS 16FWRT008062C

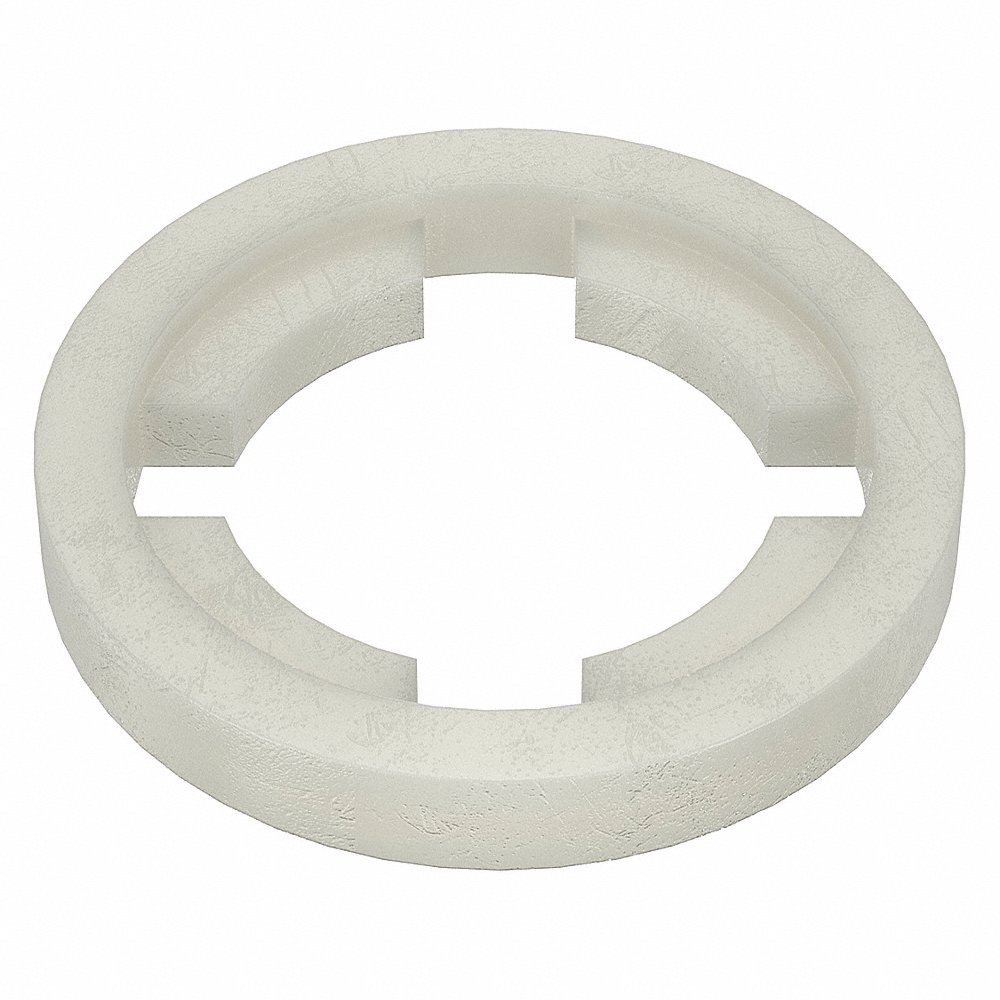

MICRO PLASTICS 16FWRT010062D

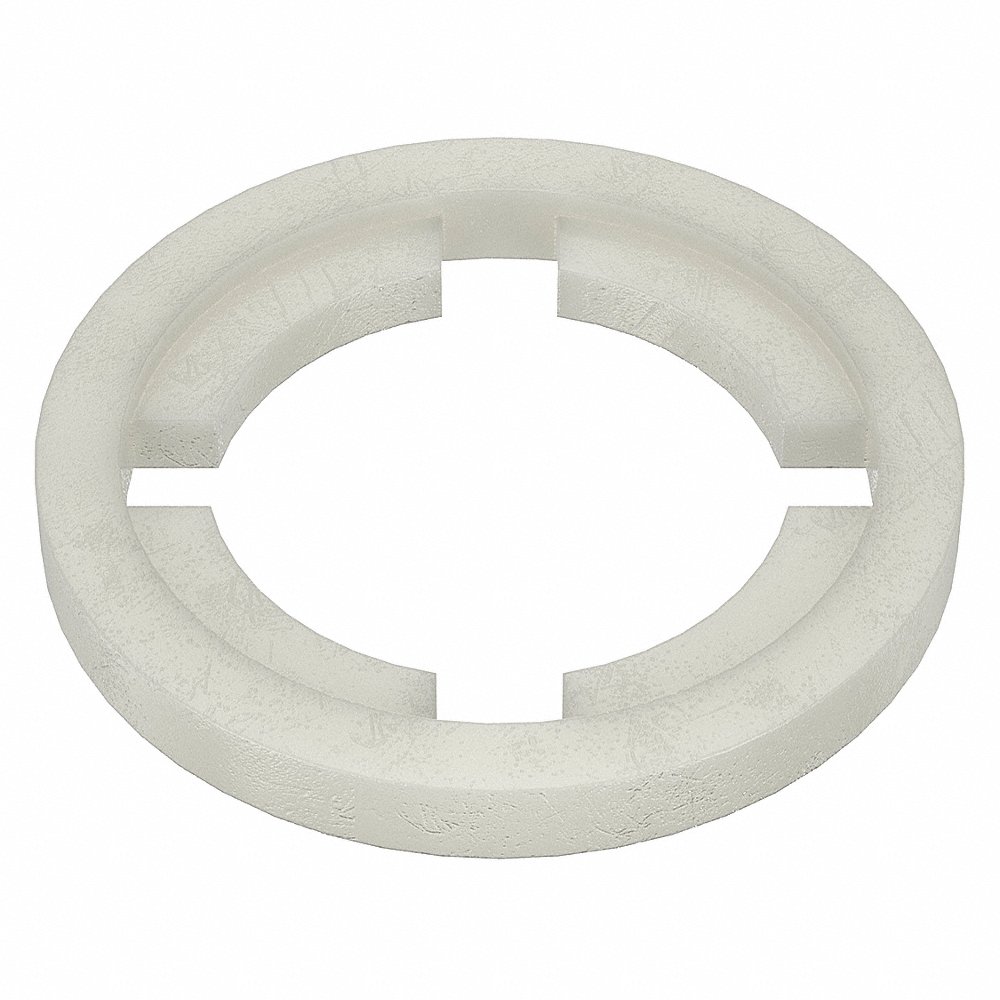

MICRO PLASTICS 16FWRT250062E

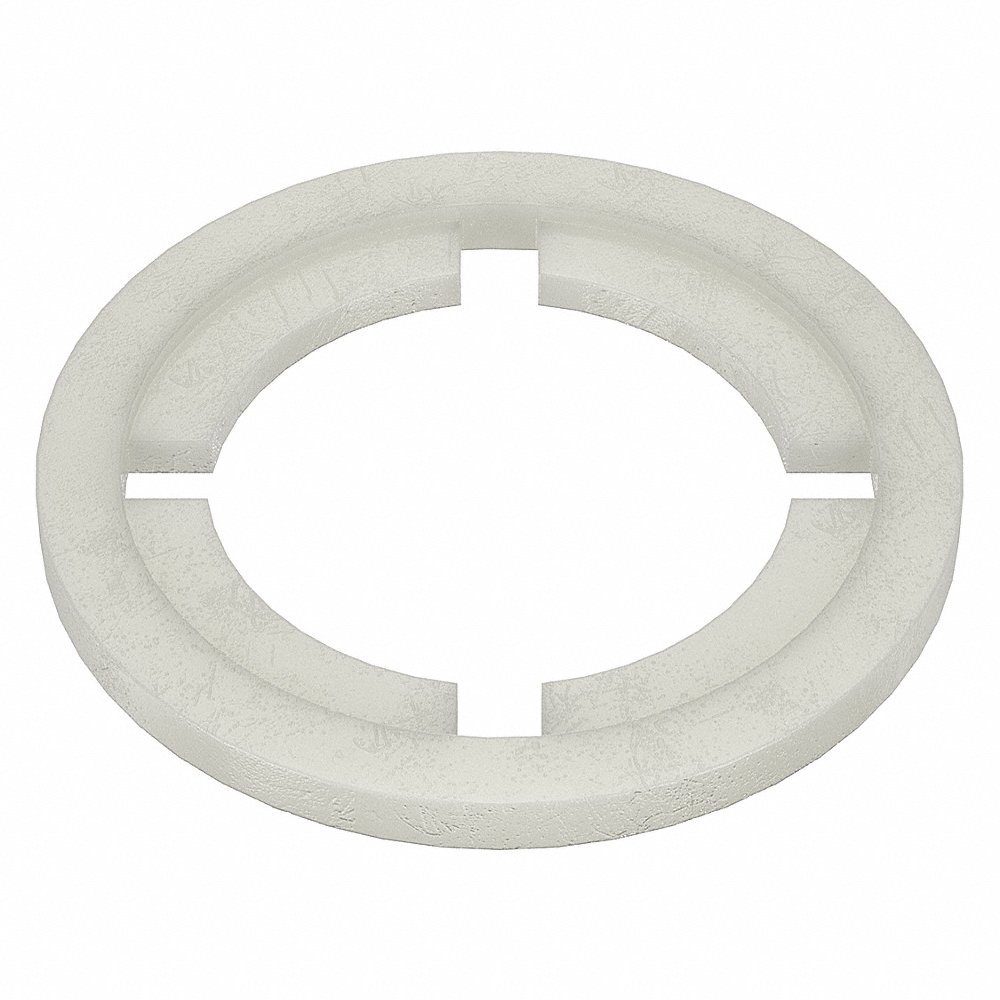

MICRO PLASTICS 16FWRT375062F
MICRO PLASTICS 16FWRT312062G
StyleModelFits Bolt SizesInside Dia.Outside Dia.ThicknessOutside Dia. ToleranceThickness ToleranceColorPricePkg. Qty.
A16FWRT004032#45/32"17/64"0.032"-0.015" to +0.015"-0.005" to +0.005"Off White€4.1750
B16FWRT006032#60.198"21/64"0.032"-0.015" to +0.015"-0.005" to +0.005"Off White€11.3250
C16FWRT008062#80.235"25/64"0.062"-0.015" to +0.015"-0.005" to +0.005"Off White€6.6250
D16FWRT010062#100.277"29/64"0.062"-0.015" to +0.015"-0.005" to +0.005"Off White€21.9750
E16FWRT2500621/4"3/8"19/32"0.062"-0.015" to +0.015"-0.005" to +0.005"Off White€14.1350
F16FWRT3750623/8"0.564"57/64"0.062"-0.015" to +0.015"-0.005" to +0.005"Off White€14.8450
G16FWRT3120625/16"0.47"47/64"0.062"-0.015" to +0.015"-0.005" to +0.005"Off White€6.5450

Retaining Washers

Retaining washers are suitable for holding assemblies that are subjected to excessive vibration, increased torque, heat or corrosion. Raptor Supplies offers a wide array of retaining washers for fitting bolt sizes ranging from 7/16 to 1/2 inches, from brands like Fabory and Micro Plastics.

Frequently Asked Questions

What is the Rockwell Hardness of these retaining washers?

They have a Rockwell Hardness rating of R120.

What temperature range can these retaining washers handle?

These retaining washers can handle temperatures ranging from -40 to 180 degrees Fahrenheit.
