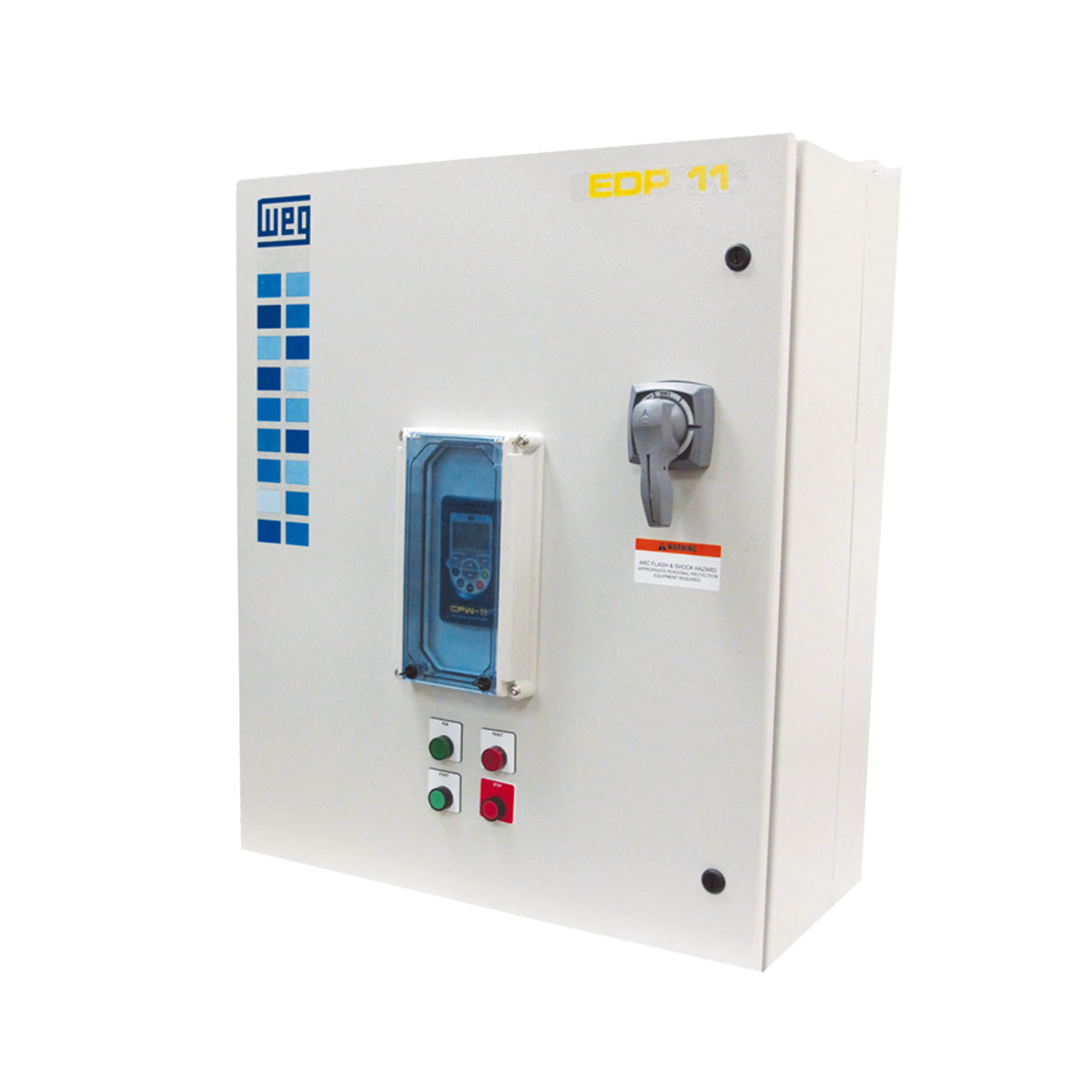

WEG EDP11S515GN12 14404599 Drive Panel, 450 HP, 460V, Keypad, Forced air ventilation
400 hp
€65,362.77 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Panel |
| By-pass Type | None |
| Communication | None |
| Contact Rating | 120V |
| Control Options | Start Pushbutton, Stop Pushbutton, Run Light, Fault Light And Keypad |
| Disconnect Switch Type | Circuit Breaker Flange Handle Disconnect |
| Enclosure Rating | Type 12 |
| Enclosure Type | Free Standing |
| Frequency | 60 Hz |
| General Enclosure Options | None |
| Hp | 400 hp |
| Main Voltage | 460V |
| Nominal Depth | 600 mm |
| Nominal Height | 78.7" |
| Nominal Width | 56" |
| Open Control Power Transformer | 500 VA |
| Panel Type | Vfd |
| Reactor/filter | None |
| Sccr Rating | 5 kAIC |
| Series | EDP11 Series |
| Thermal Managment | Forced Air Ventilation |
Shipping Info:
| Ship height (cm) | 199.9 |
| Ship length (cm) | 59.94 |
| Ship width (cm) | 142.24 |
Product Variants
| Product | Model | Hp | Main Voltage | Enclosure Rating | Nominal Depth | Nominal Height | Nominal Width | Open Control Power Transformer | Enclosure Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EDP11S016DN12 | 5 hp | 230V | Type 12 | 203.2 mm | 23 3/5" | 20" | 100 VA | Wall Mount | €7,051.77 | RFQ
|
 |
EDP11S017GN1211000 | 10 hp | 460V | Type 12 | 203.2 mm | 30" | 24" | 100 VA | Wall Mount | €9,533.70 | RFQ
|
|
EDP11S024GN1201000 | 15 hp | 460V | Type 12 | 203.2 mm | 23 3/5" | 20" | 100 VA | Wall Mount | €8,498.16 | RFQ
|
 |
EDP11S024GN3R | 15 hp | 460V | Type 3R | 203.2 mm | 23 3/5" | 20" | 100 VA | Wall Mount | €9,555.48 | RFQ
|
|
EDP11S031GN1201000 | 20 hp | 460V | Type 12 | 203.2 mm | 23 3/5" | 20" | 100 VA | Wall Mount | €9,249.57 | RFQ
|
|
EDP11S033DN1211000 | 10 hp | 230V | Type 12 | - | - | - | - | - | €11,656.26 | RFQ
|
|
EDP11S070DN12 | 25 hp | 230V | Type 12 | 203.2 mm | 30" | 24" | 100 VA | Wall Mount | €12,040.38 | RFQ
|
