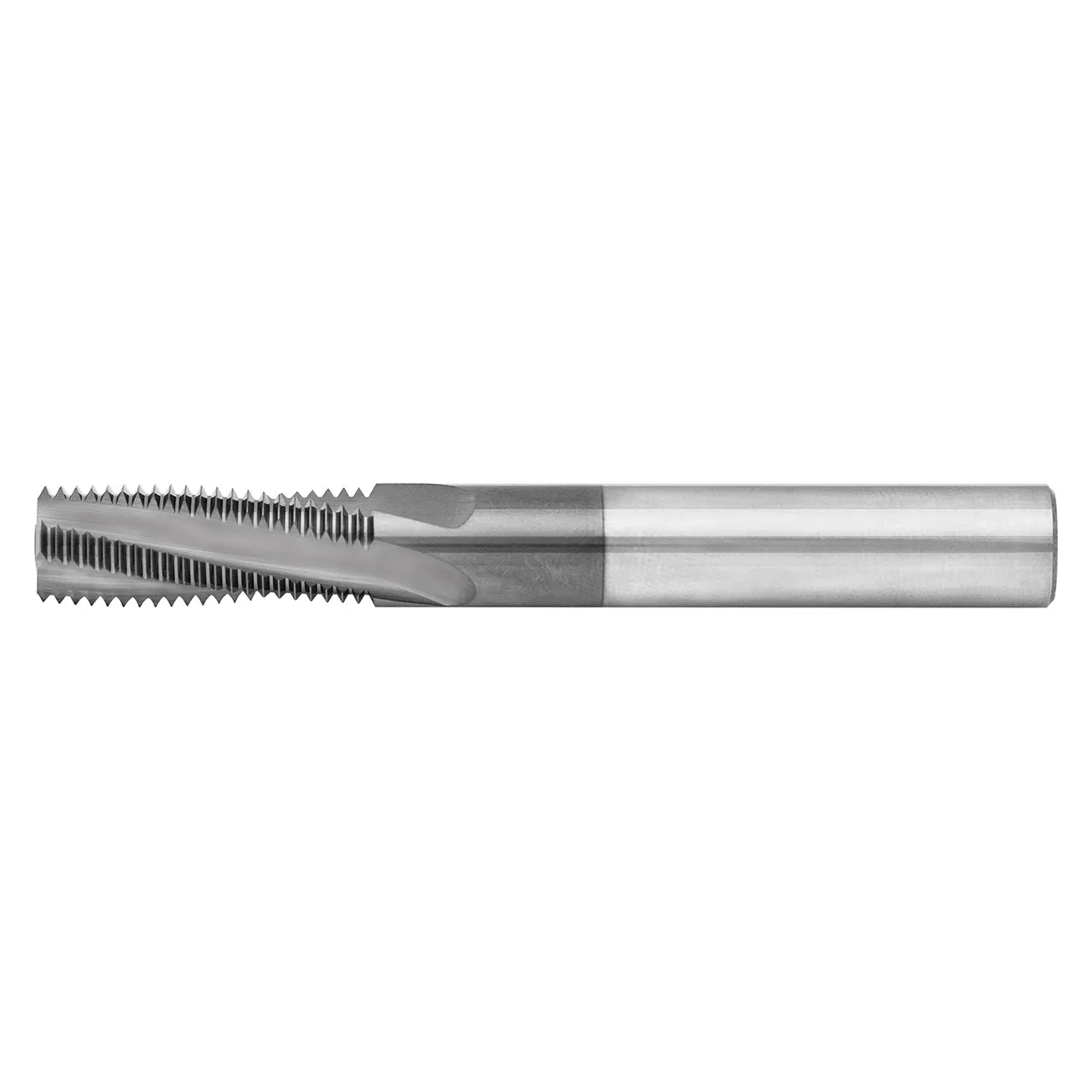

SCIENTIFIC CUTTING TOOLS TMI470-11HA 103063 Thread Mill, Carbide, TiAlN, 4 Flute, 5/8 Inch Size-11 Thread Size, 4 Inch Overall Length
Item: CU2GBQModel: TMI470-11HACross Ref: 4PFW2 / 103063
7 In Stock
Ships within 2 days via
10.00% off
€267.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Mill |
| Cutting Dia. | 0.47" |
| Cutting Length | 1.309" |
| Drilling Tool Configuration | Individual |
| End Mill Material | Carbide |
| Finish | TiAlN |
| Flute Type | Helical |
| List Number | TMI |
| Material | Solid Carbide |
| Material Applications | Composite, Steel |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 4" |
| Primary Material Application | All Materials |
| Product Type | Helical Flute Thread Mill |
| Shank Dia. | 1/2" |
| Shank Length | 3.089" |
| System Of Measurement | Imperial |
| Teeth Per Inch | 11 |
| Thread Size | 5/8"-11 |
| Thread Standard | Universal |
| Thread Type | Inch |
| Type | Helical, Internal |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 8207400000 |
| Country of Origin | US |
Product Variants
| Model | Overall Length | Shank Dia. | Material | Primary Material Application | List Number | Number Of Flutes | Thread Size | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

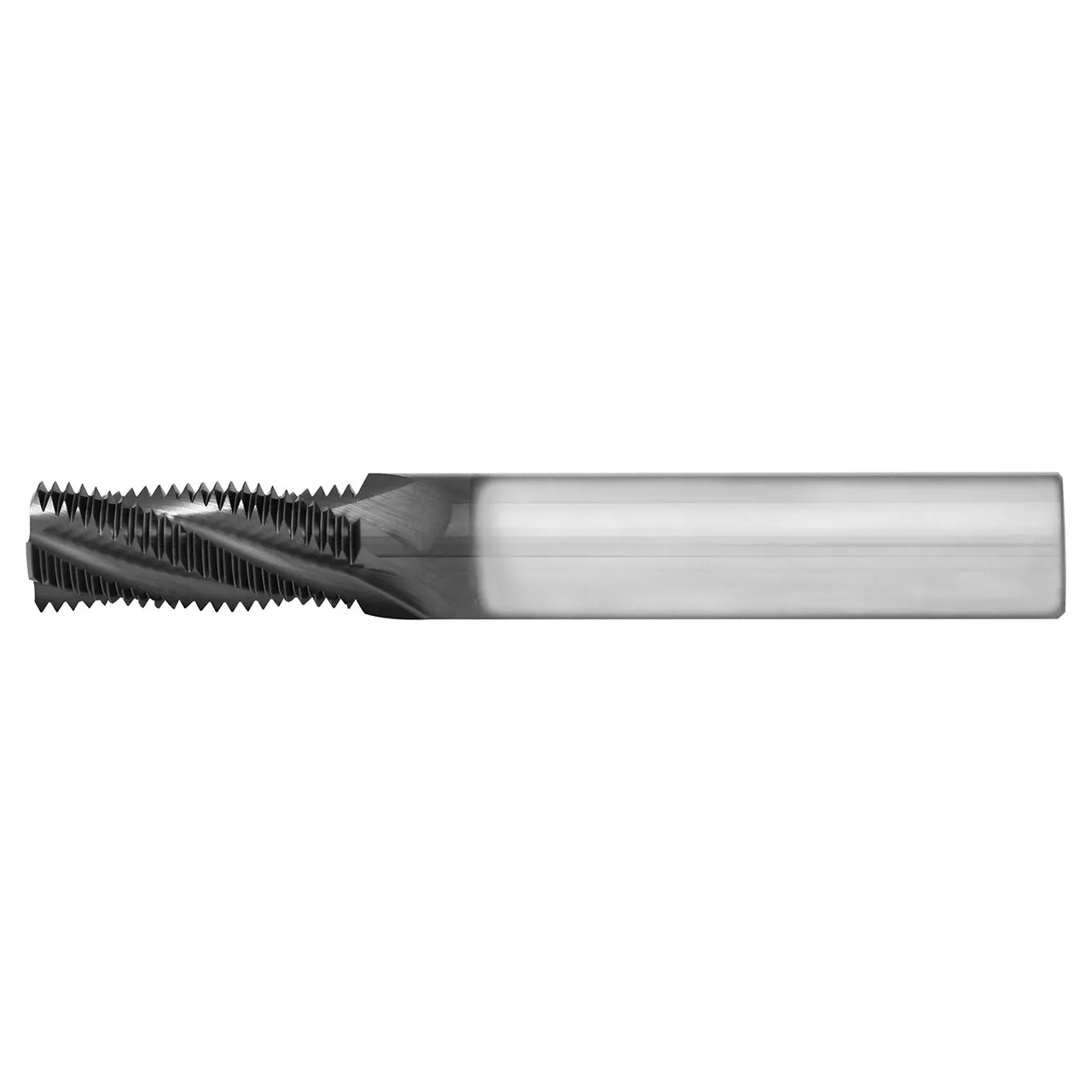

| TM125-24H | 2 1/2" | 1/4" | Solid Carbide | Composite | TM | 3 | #10-24 | Uncoated | €248.32 | |
| TM140-24H | 2 1/2" | 1/4" | Solid Carbide | Composite | TM | 3 | #10-24 | Uncoated | €248.32 | |
| TM140-32H | 2 1/2" | 1/4" | Solid Carbide | Composite | TM | 3 | #10-32 | Uncoated | €250.31 | |
| TM140-48H | 2 1/2" | 1/4" | Solid Carbide | Composite | TM | 3 | #10-48 | Uncoated | €248.32 | |
| TM125-32H | 2 1/2" | 1/4" | Solid Carbide | Composite | TM | 3 | #8-32 | Uncoated | €246.20 | |
| TM110-32H | 2 1/2" | 1/4" | Solid Carbide | All Materials | TM | 3 | #8-32 | Uncoated | €246.20 | |
| TM170-20H | 2 1/2" | 1/4" | Solid Carbide | Composite | TM | 3 | 1/4"-20 | Uncoated | €248.32 |
