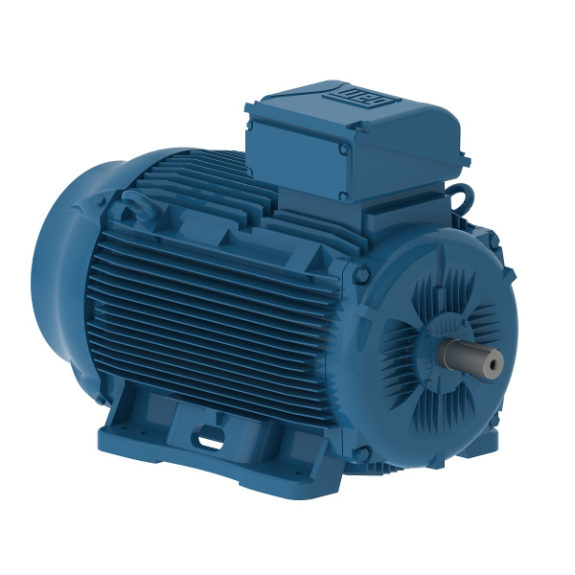

WEG E11018EP3Y315SMF3-W2 14421482 General Purpose Motor, Cast Iron 315S/M Frame, 150 HP, 1791 RPM, 460 V
Get it by Wednesday, Aug 26
€18,317.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 118/205A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Break Down Torque | 200% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 46 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | N |
| Dimensions C | 50.157" |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 94.6% |
| Efficiency 75% | 94.9% |
| Efficiency @ 100% | 94.9% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Fl Efficiency | 95% |
| Flamps@415 V | 192A |
| Flange | Without |
| Flange Type | Without |
| Frame | 315 S/M |
| Frame Material | Cast Iron |
| Frequency | 50 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| Kw | 110 kW |
| L. R. Amps | 1228A , 708/1230A |
| Locked Rotor Time (cold) | 46 sec. |
| Locked Rotor Time(hot) | 26 sec. |
| Locked Rotor Torque | 180% |
| Main Terminal Box Hole | 2 x M63 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia (j) | 60.9 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | B3T , Foot Mounted |
| Nde Bearing Seal | Yes |
| No Load Amps | 31.1/54A |
| No. Of Pins | 6 |
| No. Of Poles | 4 |
| Noise Level | 71 dBA |
| Output Rating | 110 kW , 150 hp |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.86 |
| Power Factor 50% | 0.78 |
| Power Factor 75% | 0.85 |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 0.87% |
| Speed | 1487 RPM , 1500/1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1500 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Top |
| Torque | 521 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380-400-415/660-690/460V , 380-400-415/660-690/460V AC , 380/660V |
| Winding Thermal Protection | Thermistor 2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 950.78 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Frequency | Hp | Frame | Insulation Class | No. Of Poles | Synchronous Speed | Shaft Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E07512EP3Y315SMF3-W2 | 380-400-415/660-690/460V AC | 50 Hz | - | 315 S/M | Class F | 6 | 1000 RPM | Carbon Steel | €16,046.02 | |
| E03718EP3Y225SMF3-W2 | 380-400-415/660-690/460V AC | 50 Hz | - | 225 S/M | Class F | 4 | 1500 RPM | Carbon Steel | €6,800.11 | |
| E02212EP3Y200LF3-W22 | 380-400-415/660-690/460V AC | 50 Hz | - | 200 L | Class F | 6 | 1000 RPM | Carbon Steel | €4,837.96 | |
| E02236EP3Y180MF3-W22 | 380-400-415/660-690/460V AC | 50 Hz | - | 180 M | Class F | 2 | 3000 RPM | Carbon Steel | €3,431.07 | |
| E09036EP3Y280SMF3-W2 | 380-400-415/660-690/460V AC | 50 Hz | - | 280 S/M | Class F | 2 | 3000 RPM | Carbon Steel | €16,280.86 | |
| E11036EP3Y315SMF3-W2 | 380-400-415/660-690/460V AC | 50 Hz | - | 315 S/M | Class F | 2 | 3000 RPM | Carbon Steel | €20,465.64 | |
| E01112EP3Y160LF3-W22 | 380-400-415/660-690/460V AC | 60 Hz | - | 160 L | Class F | 6 | 1000 RPM | Carbon Steel | €3,105.10 |
