WEG E04536EP3Y225SMF3-W2 Electric Motor, 60Hp, 50Hz, 3000 Rpm | BB6TGV

WEG E04536EP3Y225SMF3-W2 14420952 General Purpose Motor, Cast Iron 225S/M Frame, 60 HP, 3570 RPM, 460V, 20.0 A No Load Current

Item: BB6TGVModel: E04536EP3Y225SMF3-W2Cross Ref: 14420952
Check Availability
In Stock

Get it by Tuesday, Apr 7

€7,752.09 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap Yes
Breakdown Torque 250%
Connection Cables Quantity 6
Dimension(c) 33.701"
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 92.9%
Efficiency @ 50% 92.2%
Efficiency @ 75% 92.8%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Fl Efficiency 93.8%
Flamps@415 V 75.8A
Flange Without
Flange Type Without
Frame 225 S/M
Frame Material Cast Iron
Frequency 50 Hz
Grounding Lugs Double
Impregnation Method Constant Resin Flow
Insulation Class Class F
Kw 45 kW
L.r. Amperes 320/556A
Locked Rotor Time 7 sec.
Locked Rotor Time (cold) 12 sec.
Locked Rotor Torque 220%
Main Terminal Box Hole 2 x M50 x 1.5
Main Terminal Box Hole Size M50 x 1.5
Moment Of Inertia (j) 5.91 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting B3T , Foot Mounted
No Load Amps 11.5/20A
No. Of Holes 2
No. Of Pins 6
No. Of Poles 2
Noise Level 75 dBA
Output Rating 45 kW , 60 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 203A (ISO 12944-C2)
Phase 3
Power Factor 50% 0.83
Power Factor 75% 0.88
Power Factor_100% 0.9
Rated Current 47.1/81.8A
Rated Speed 2955 RPM
Rated Torque 107 lbs.-ft.
Rated Voltage 380/660V
Regreasing System At Drive End And Non Drive End , At Drive End And Non-Drive End
Rotation CW/CCW
Rpm 3000 RPM
Screw Cap Stainless Steel
Service Factor 1
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 1.5%
Starting Method Direct On Line
Synchronous Speed 3000 RPM
Temp. Rise 80 K
Terminal Block BMC
Terminal Box Top
Terminal Type BMC
Tropicalized Painting Without
Voltage 380-400-415/660-690/460V AC
Winding Thermal Protection Thermistor-2 Wires 1 Per Phase 155°C

Shipping Info:

Ship weight (kg) 444.77
Ship height (cm)2.54
Ship length (cm)85.6
Ship width (cm)2.54

Product Variants

ProductModelVoltageHpFrameNo. Of PolesSynchronous SpeedMountingOutput RatingGrounding LugsPrice

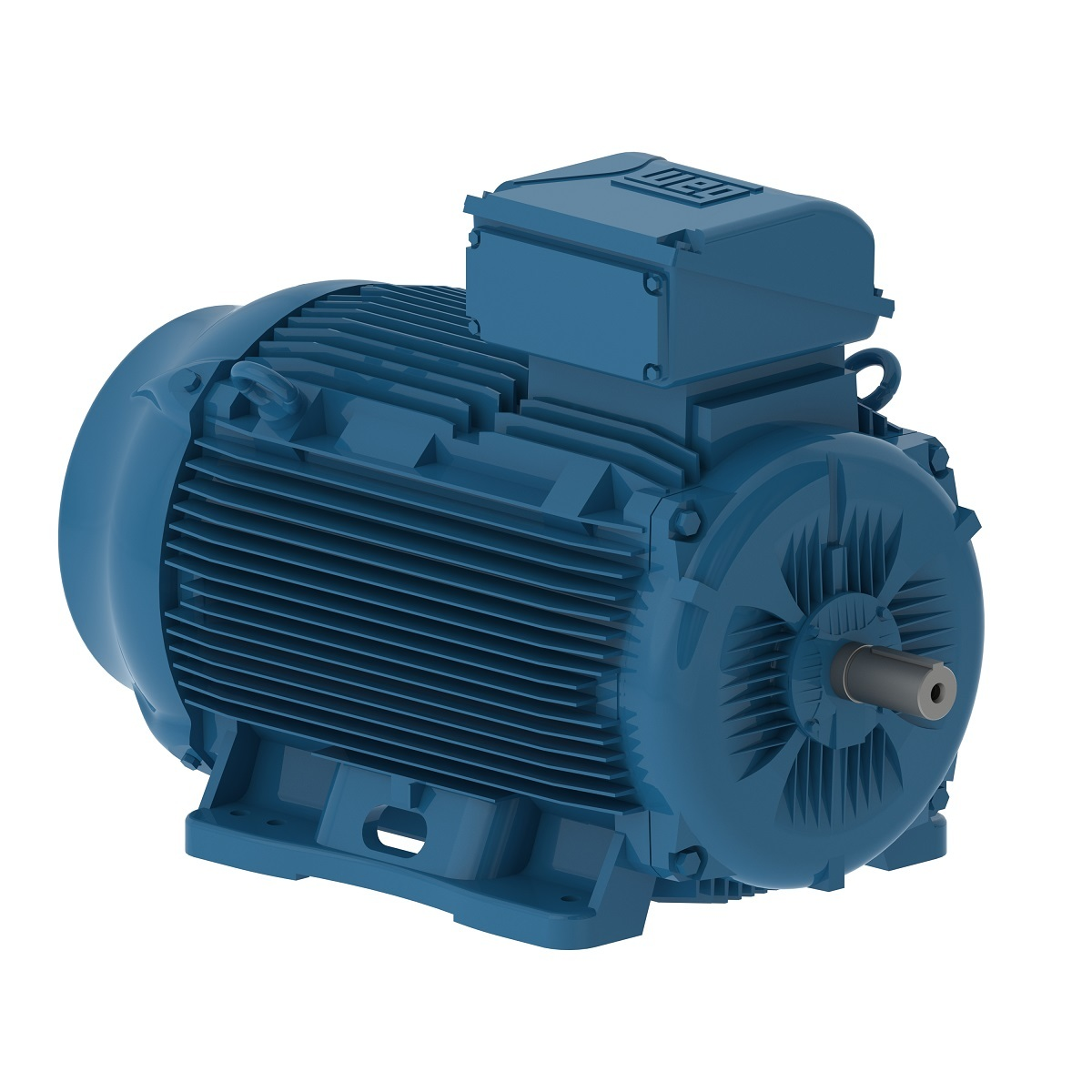

WEG E07512EP3Y315SMF3-W2 Electric Motor, 100Hp, 50Hz, 1000/1200 Rpm | BB4JBT E07512EP3Y315SMF3-W2380-400-415/660-690/460V AC-315 S/M61000 RPMFoot Mounted100 hpDouble€16,046.02
WEG E03718EP3Y225SMF3-W2 Electric Motor, 50Hp, 50Hz, 1500/1800 Rpm | BB4MRL E03718EP3Y225SMF3-W2380-400-415/660-690/460V AC-225 S/M41500 RPMFoot Mounted50 hpDouble€6,800.11
WEG E02212EP3Y200LF3-W22 Electric Motor, 30Hp, 50Hz, 1000/1200 Rpm | BB4UDW E02212EP3Y200LF3-W22380-400-415/660-690/460V AC-200 L61000 RPMFoot Mounted30 hpSingle€4,837.96
WEG E02236EP3Y180MF3-W22 Electric Motor, 30Hp, 50Hz, 3000 Rpm | BB6BTM E02236EP3Y180MF3-W22380-400-415/660-690/460V AC-180 M23000 RPMFoot Mounted30 hpSingle€3,431.07
WEG E09036EP3Y280SMF3-W2 Electric Motor, 125Hp, 50Hz, 3000 Rpm | BB6DPU E09036EP3Y280SMF3-W2380-400-415/660-690/460V AC-280 S/M23000 RPMFoot Mounted125 hpDouble€16,280.86
WEG E11036EP3Y315SMF3-W2 Electric Motor, 150Hp, 50Hz, 3000 Rpm | BB6DPV E11036EP3Y315SMF3-W2380-400-415/660-690/460V AC-315 S/M23000 RPMFoot Mounted150 hpDouble€20,465.64
WEG E01112EP3Y160LF3-W22 Electric Motor, 15Hp, 50Hz, 1000/1200 Rpm | BB6EFT E01112EP3Y160LF3-W22380-400-415/660-690/460V AC-160 L61000 RPMFoot Mounted15 hpSingle€3,105.10
