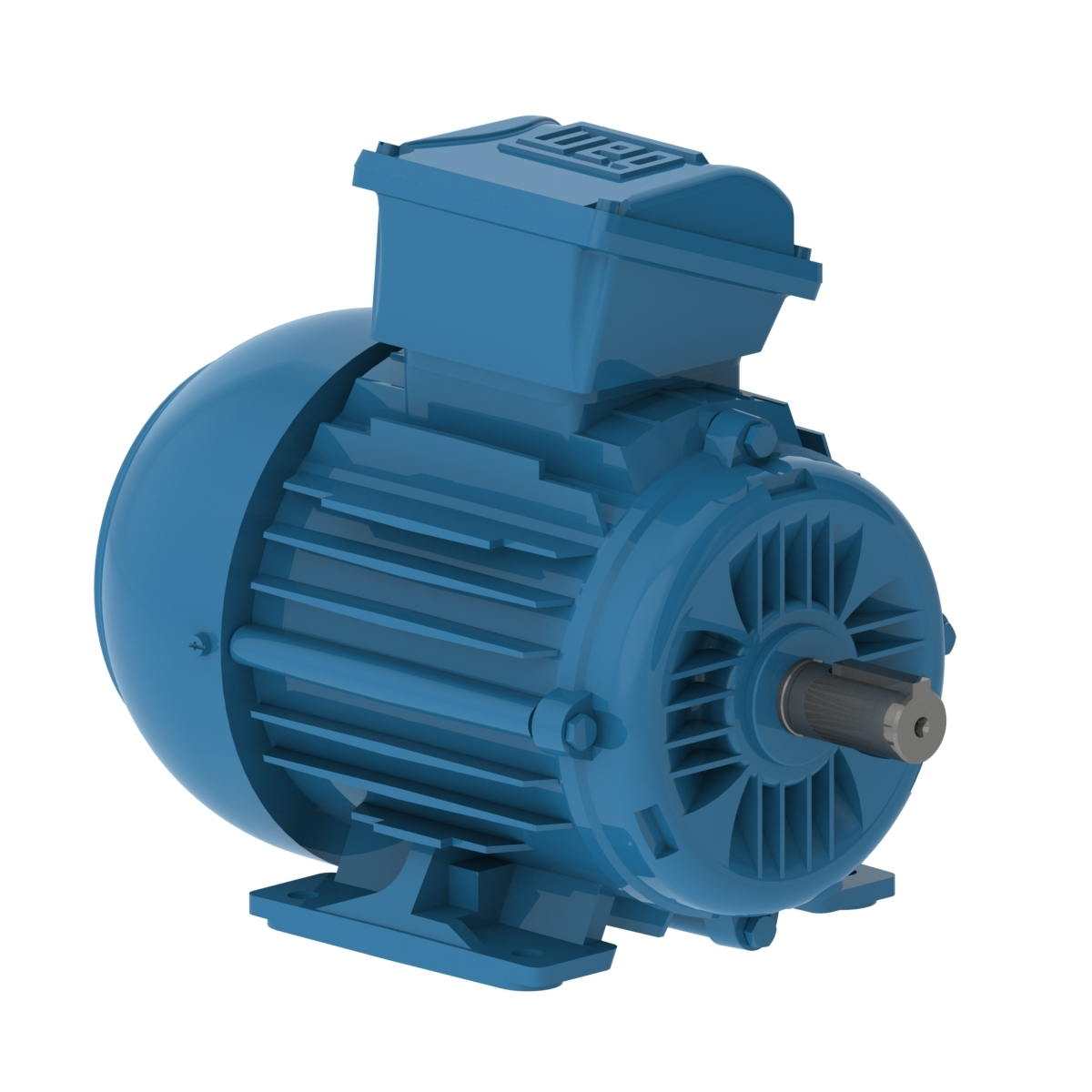

WEG E00136ET3WAX80F3-W22 Electric Motor, 1.1Hp, 50Hz, 3000 Rpm | BC3JLM

WEG E00136ET3WAX80F3-W22 12861069 Hazardous Area IEC-Ex/ATEX Motor, EX-EC, IE3 1.1 KW, 2 Poles, 80 Frame, 3 Phase, 220-230-240/380-400-415//460 V, 50 Hz, IC411-TEFC-B3T

Item: BC3JLMModel: E00136ET3WAX80F3-W22Cross Ref: 12861069
Check Availability
In Stock

Get it by Tuesday, Sep 1

€848.27 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 2.41/4.16A
Balancing Method Not Balanced
Bearing Cap No
Break Down Torque 290%
Cable Press Material Sem
Composition Cast Iron
Connection Cables Quantity 6
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 82%
Efficiency 75% 82.7%
Efficiency @ 100% 82.7%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Conductive Plastic , Plastic
Flange Without
Flange Type Without
Frame 80
Frame Material Cast Iron
Frequency 50 Hz
Grounding Lugs Double
Hp 1 1/2 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 15.9/27.5A
Locked Rotor Time (cold) 30 sec.
Locked Rotor Time(hot) 17 sec.
Locked Rotor Torque 330%
Main Terminal Box Hole 2 x M20 x 1.5
Main Terminal Box Hole Size M20 x 1.5
Moment Of Inertia (j) 0.0221 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting B3T , Foot Mounted
No Load Amps 1.1/1.9A
No. Of Holes 2
No. Of Pins 6
No. Of Poles 2
Noise Level 59 dBA
Output Rating 1 1/2 hp , 1.1 kW
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 205P (ISO 12944-C3)
Phase 3
Power Factor 100% 0.84
Power Factor 50% 0.66
Power Factor 75% 0.78
Rotation CW, CCW
Screw Cap Stainless Steel
Service Factor 1
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 6.17%
Speed 2815 RPM , 3000 RPM
Starting Method Direct On Line
Synchronous Speed 3000 RPM
Temp. Rise 80 K
Terminal Block BMC
Terminal Box Top
Terminal Type BMC
Torque 2.75 lbs.-ft.
Tropicalized Painting Without
Voltage 220-230-240/380-400-415/460V AC , 220/380V
Winding Thermal Protection Thermistor-2 Wires 1 Per Phase 140°C

Shipping Info:

Ship weight (kg) 15.75
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelFrequencyHpFrameNo. Of PolesSynchronous SpeedShaft MaterialMountingOutput RatingPrice
WEG E04512EP3YAX280SMF3W Electric Motor, 60Hp, 50/60Hz, 1000/1200 Rpm | BB4JBR E04512EP3YAX280SMF3W50 Hz60 hp280 S/M61000 RPMCarbon SteelFoot Mounted60 hp€23,462.45
WEG E00418EP3YAX112MF3-W Electric Motor, 5.5Hp, 50/60Hz, 1500/1800 Rpm | BB6BTL E00418EP3YAX112MF3-W50 Hz5 1/2 hp112 M41500 RPMCarbon SteelFoot Mounted5 1/2 hp€1,655.98
WEG E09018EP3YAX280SMF3W Electric Motor, 125Hp, 50/60Hz, 1500/1800 Rpm | BB6KEP E09018EP3YAX280SMF3W50 Hz125 hp280 S/M41500 RPMCarbon SteelFoot Mounted125 hp€24,408.69
WEG E11012EP3YAX315SMF3W Electric Motor, 150Hp, 50/60Hz, 1000/1200 Rpm | BB6KVY E11012EP3YAX315SMF3W60 Hz150 hp315S/M61000 RPMCarbon SteelFoot Mounted150 hp€36,453.57
WEG E01812EP3YAX200LF3-W Electric Motor, 25Hp, 50/60Hz, 1000/1200 Rpm | BB6UPC E01812EP3YAX200LF3-W50 Hz25 hp200 L61000 RPMCarbon SteelFoot Mounted18.5 kW€8,590.64
WEG E01512EP3YAX180LF3-W Electric Motor, 20Hp, 50/60Hz, 1000/1200 Rpm | BB6XHF E01512EP3YAX180LF3-W60 Hz20 hp180 L61000 RPMCarbon SteelFoot Mounted20 hp€6,172.34
WEG E05518EP3YAX250SMF3W Electric Motor, 75Hp, 50/60Hz, 1500/1800 Rpm | BB6ZLL E05518EP3YAX250SMF3W50 Hz75 hp250 S/M41500 RPMCarbon SteelFoot Mounted75 hp€16,443.53
