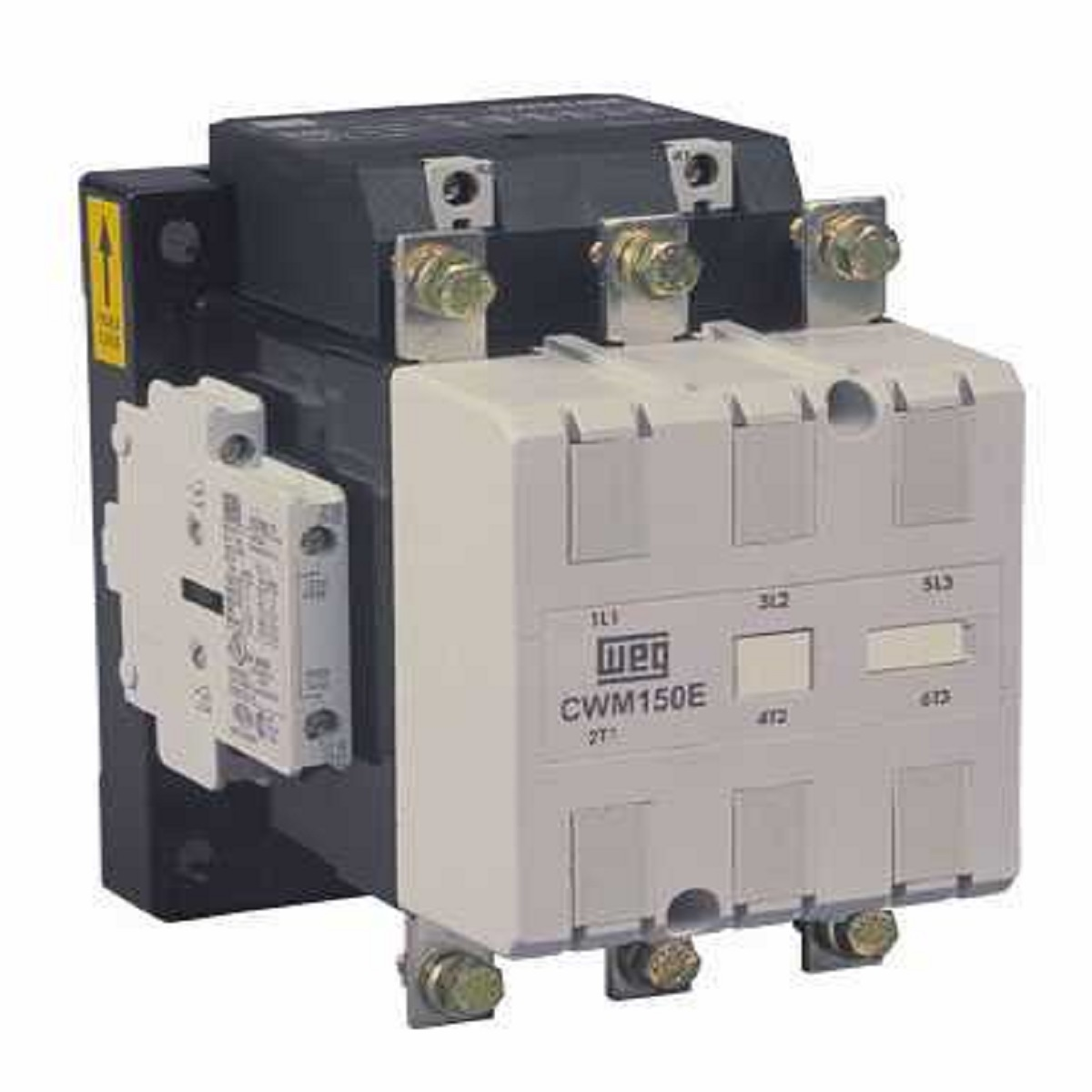

WEG CWM150-22-30E02 10535726 Contactor, 150 A Rated, 3 NO Main Contact, 2 NO, 2 NC Aux Contact, 24-28V 50/60Hz-DC
Item: BC9ECEModel: CWM150-22-30E02Cross Ref: 10535726
7 In Stock
Ships within 2 days via
€728.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Amps | 150A |
| Contact Type | NO |
| Control Voltage | 24-28V DC |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP00 |
| Depth | 5.79" |
| Electrical Lifespan | 1 Million Cycles |
| Frequency | 60/50 Hz |
| Height | 6 2/5" |
| Length | 5.79" |
| Main Contact | 3 NO |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 10 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting Type | Frontal, Side |
| No. Of Contacts | 2 , 3 NO |
| Poles | 3 |
| Rated Insulation Voltage | 1000V |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 1000V |
| Rated Operational Amps | 225A |
| Rated Operational Voltage | 1000V |
| Reference | CWM |
| Series | CWM Series |
| Terminal Connection | Screw |
| Terminal Type | Screw |
| Voltage | 24V |
| Width | 4.65" |
Shipping Info:
| Ship weight (kg) | 3.05 |
| Ship height (cm) | 16.26 |
| Ship length (cm) | 14.71 |
| Ship width (cm) | 11.81 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Height | Terminal Type | Control Voltage | No. Of Contacts | Rated Operational Voltage | Rated Operational Amps | Min. Rated Operational Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

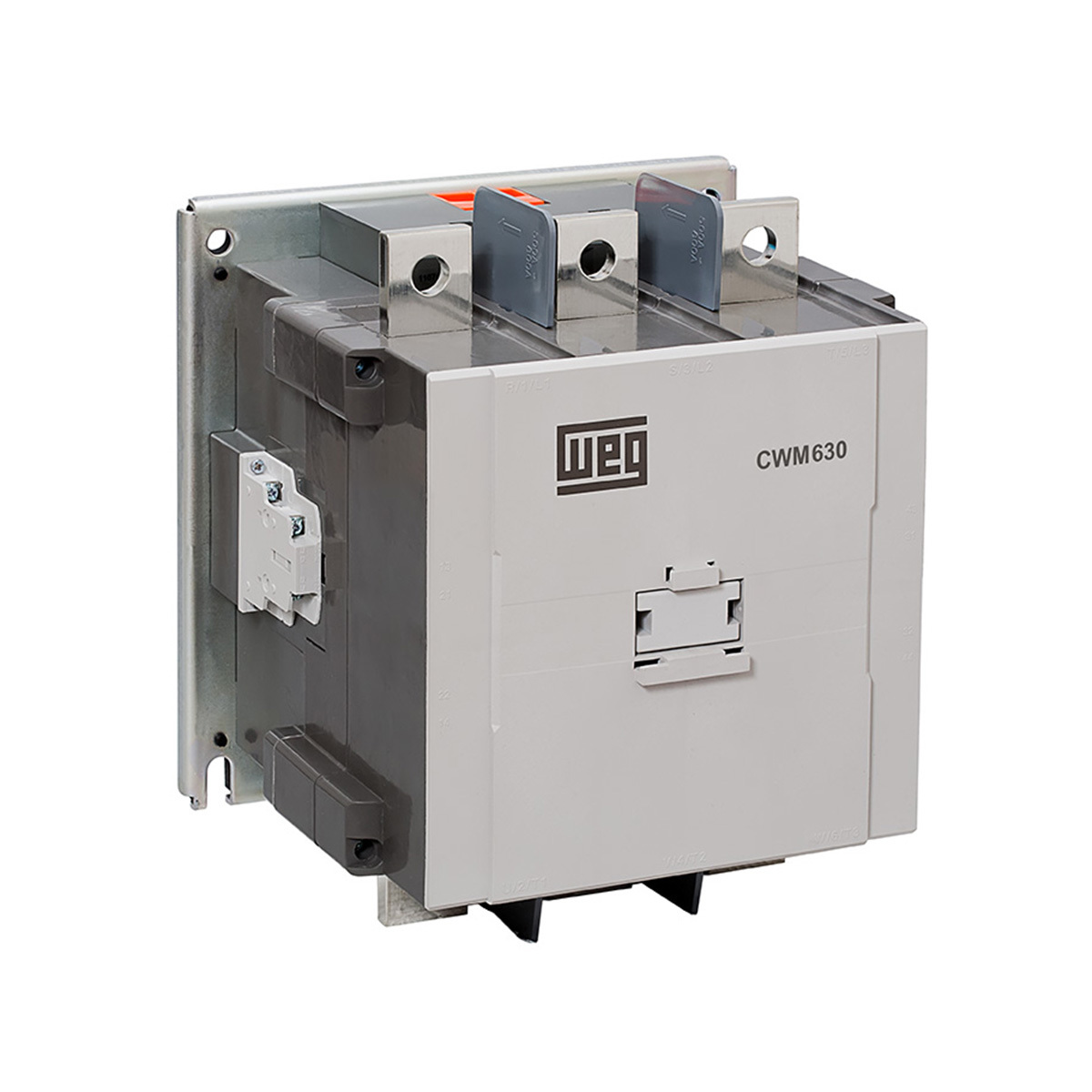

CWM630-22-30E35 | 630A | 12 1/5" | Screw | 100-127V/100-110V DC | 3 NO | 690V | 900A | 60 Hz | €2,901.55 | |
 |

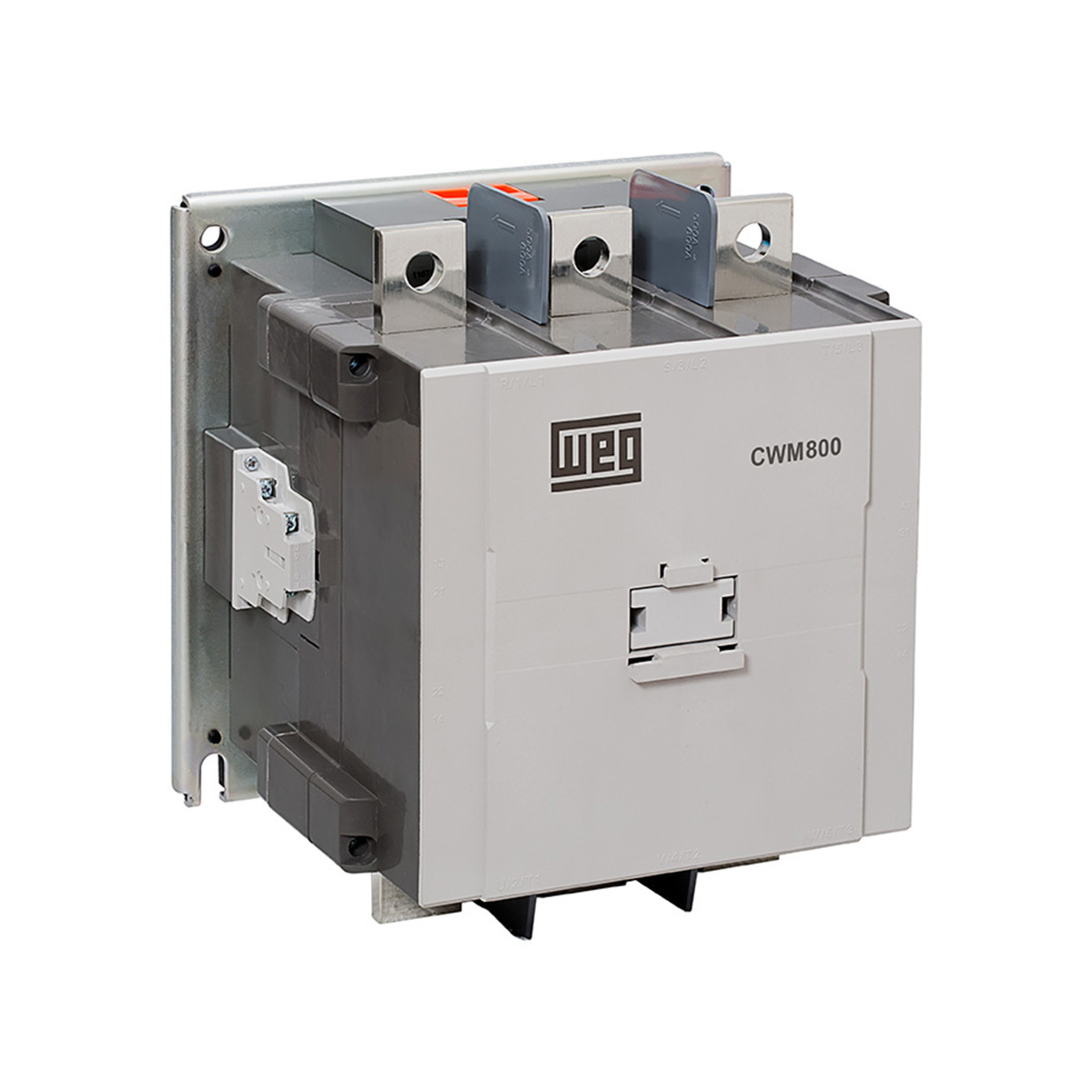

CWM800-22-30E35 | 800A | 12 1/5" | Screw | 100-127V/100-110V DC | 3 NO | 690V | 1050A | 60 Hz | €4,248.23 | |
 |
CWM800-22-30D82 | - | 12 1/5" | Screw Terminals | - | - | - | - | - | €4,248.23 | |
|
CWM630-22-30E39 | 630A | 12 1/5" | Screw | 200-240V/200-220V DC | 3 NO | 690V | 900A | 60 Hz | €2,901.55 | |
 |
CWM400-22-30E36 | 400A | 9.57" | Screw | 100-240V/100-220V DC | 3 NO | 690V | 520A | 60 Hz | €1,919.18 | |
 |

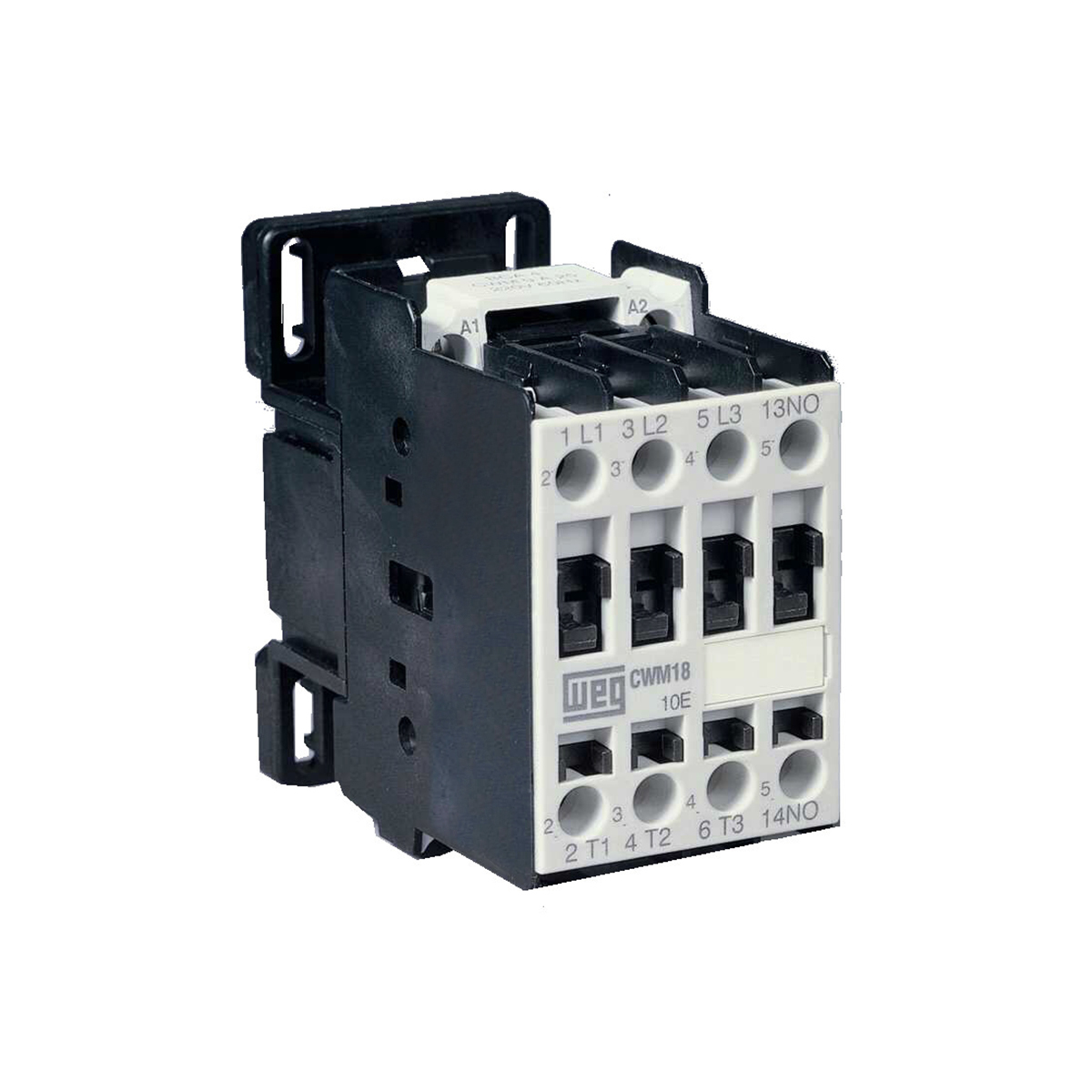

CWM18-00-20V04 | 18A | 3.19" | Screw | 20/24V | 2 | 690V | 32A | 400 Hz | €80.71 | |
|
CWM800-22-30E39 | 800A | 12 1/5" | Screw | 200-240V/200-220V DC | 3 NO | 690V | 1050A | 60 Hz | €4,248.23 |
