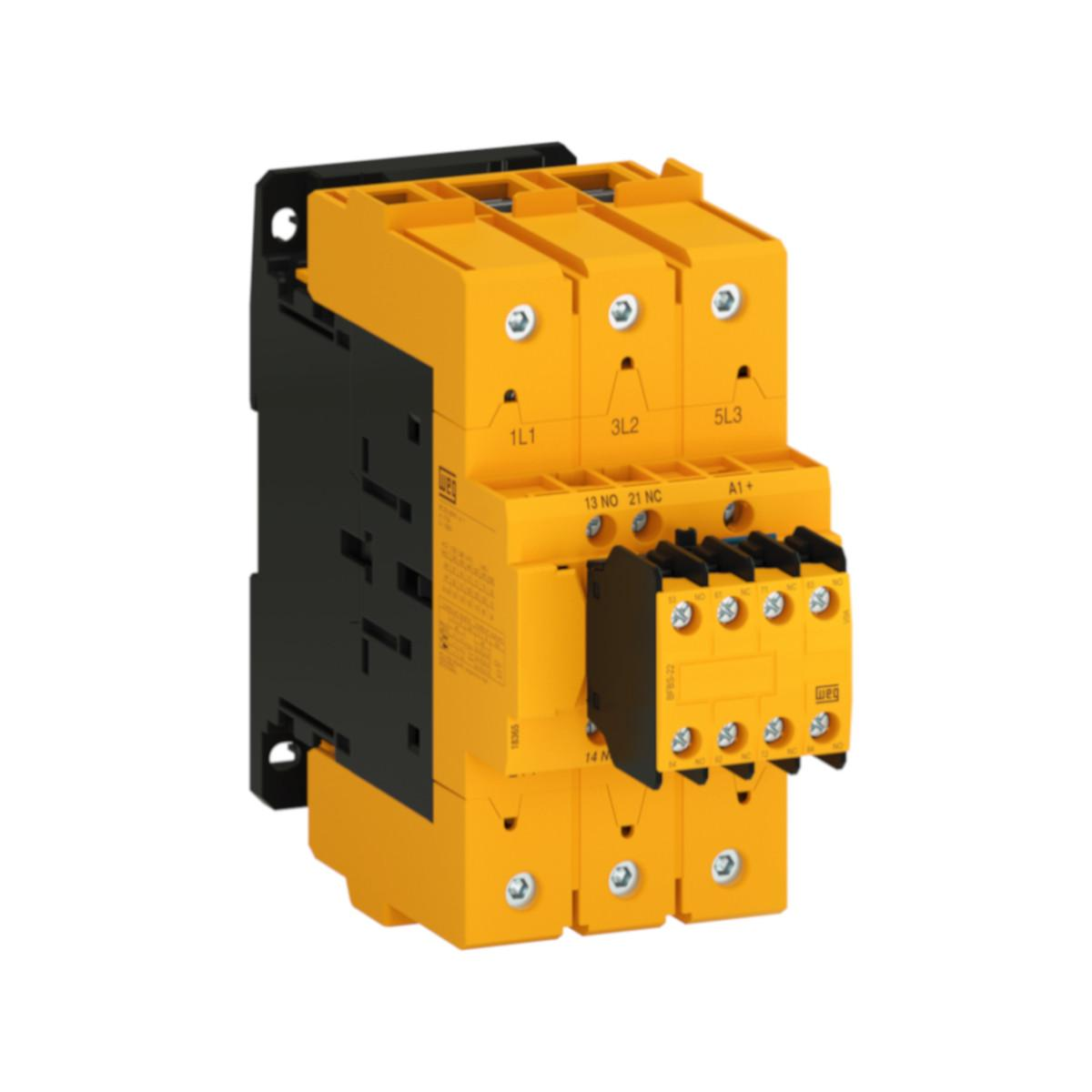

WEG CWBS95-33-30E65 16220935 Contactor, 95 A, 3 No Contact, 110-255V, 50/60 Hz-Dc
Item: EC2MQVModel: CWBS95-33-30E65Cross Ref: 16220935
7 In Stock
Ships within 2 days via
€582.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Amps | 95A |
| Contact Rating | 110-255V @ 50/60 Hz-DC |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP10 |
| Depth | 7.263" |
| Electrical Lifespan | 1.1 Million |
| Height | 149 mm |
| Main Contact | 3 NO |
| Max. Rated Operational Frequency | 400 Hz |
| Mechanical Lifespan (ac) | 6 Million |
| Mechanical Lifespan (dc) | 6 Million |
| Min. Rated Operational Frequency | 25 Hz |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3)-iec 60974-4-1 | 1000V |
| Rated Operational Amps | 140A |
| Rated Operational Voltage | 1000V |
| Reference | CWBS |
| Terminal Type | Screw |
| Width | 72 mm |
Shipping Info:
| Ship weight (kg) | 1.63 |
| Ship height (cm) | 14.91 |
| Ship length (cm) | 18.45 |
| Ship width (cm) | 7.2 |
