WEG .7582OS1AEC56 15668317 Air Handling Motor, Evaporative Cooler, 1/4/3/4 HP, 0.18 kW, 1200/1800 RPM, E56 Frame, 115 V
Get it by Wednesday, Apr 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€266.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Evaporative Cooler Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Bearing Type | Ball |
| Body Dia. | 6 7/16" |
| Breakdown Torque | 229% |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Dia. | 6 7/16" |
| Diameter | 6 7/16" |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 61.1% |
| Efficiency @ 50% | 54.5% |
| Efficiency @ 75% | 61% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Features | Epoxy Paint Over A Layer Of Zinc Phosphate Helps Prevent Corrosion |
| Feet | Craddle Ready |
| Flange | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10.3A |
| Grounding Lugs | Single |
| Hp | 3/4 hp, 1/4 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip and Bake Polyester |
| Ins. Class | Class B |
| Insulation Class | Class B |
| L.r. Amperes | 35A |
| Length | 9 9/16" |
| Length Less Shaft | 7 7/8" |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 110% |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 0.089 lbs.-sq. ft. |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Ring |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Evaporator Cooler |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting | F-1 |
| Mounting Type | Ring |
| No Load Amps | 7.8A |
| No. Of Poles | 4, 6 |
| No. Of Speeds | 2 |
| Noise Level | 46 dBA |
| Nominal Efficiency | 61.1% |
| Number Of Speeds | 2 |
| Output Rating | 3/4 hp, 1/4 hp |
| Output Wattage | 550 W |
| Output Watts | 550 W |
| Overall Length | 9 9/16" |
| Overload Protection | No |
| Phase | 1 |
| Power Factor 50% | 0.54 |
| Power Factor 75% | 0.66 |
| Power Factor_100% | 0.75 |
| Rated Current | 10.3A |
| Rated Speed | 1725 RPM |
| Rated Torque | 2.25 lbs.-ft. |
| Rated Voltage | 115V |
| Removable Base | Yes |
| Resilient Base | Without |
| Resilient Ring Dia. | 2 1/2" |
| Ring Dia. | 2 1/2" |
| Ring To Ring Center | 7 7/16" |
| Rotation | CW |
| Rpm | 1725/1140 RPM , 1800/1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 4.17% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200/1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 8.87 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 24.29 |
| Ship width (cm) | 17.78 |
| HS code | 8501514040 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Hp | Motor Design | No. Of Speeds | Shaft Dia. | Full Load Amps | Shaft Length | Ring To Ring Center | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
.3382OS1AEC56 | 115V AC | 1/3 hp, 1/9 hp | Split-Phase | 2 | 1/2" | 6.6/3.7A | 1 7/8" | 7 7/16" | €188.45 | |
 |

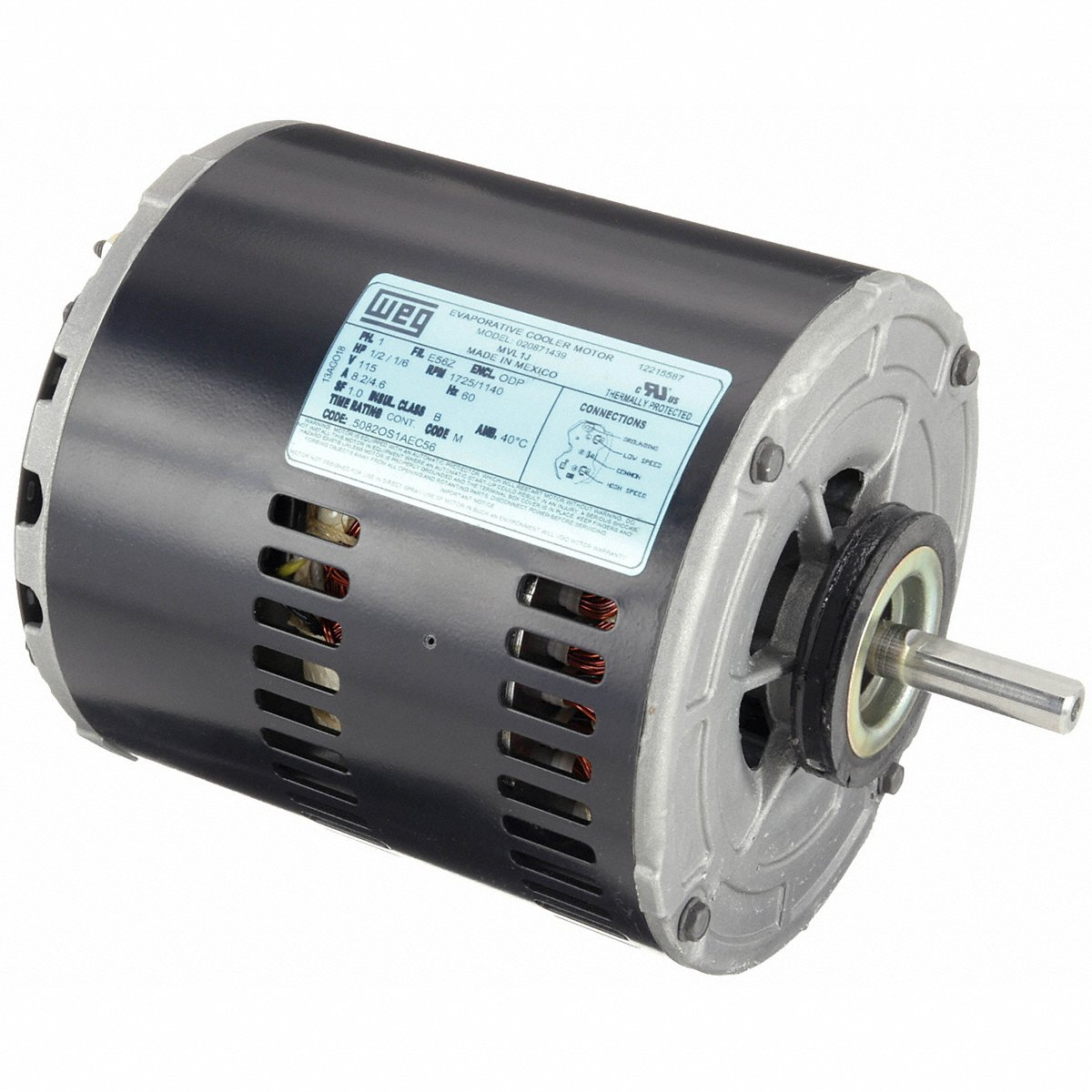

.5082OS1AEC56 | 115V AC | 1/2 hp, 1/6 hp | Split-Phase | 2 | 1/2" | 8.2/4.6A | 1 7/8" | 7 7/16" | €271.28 | |
 |

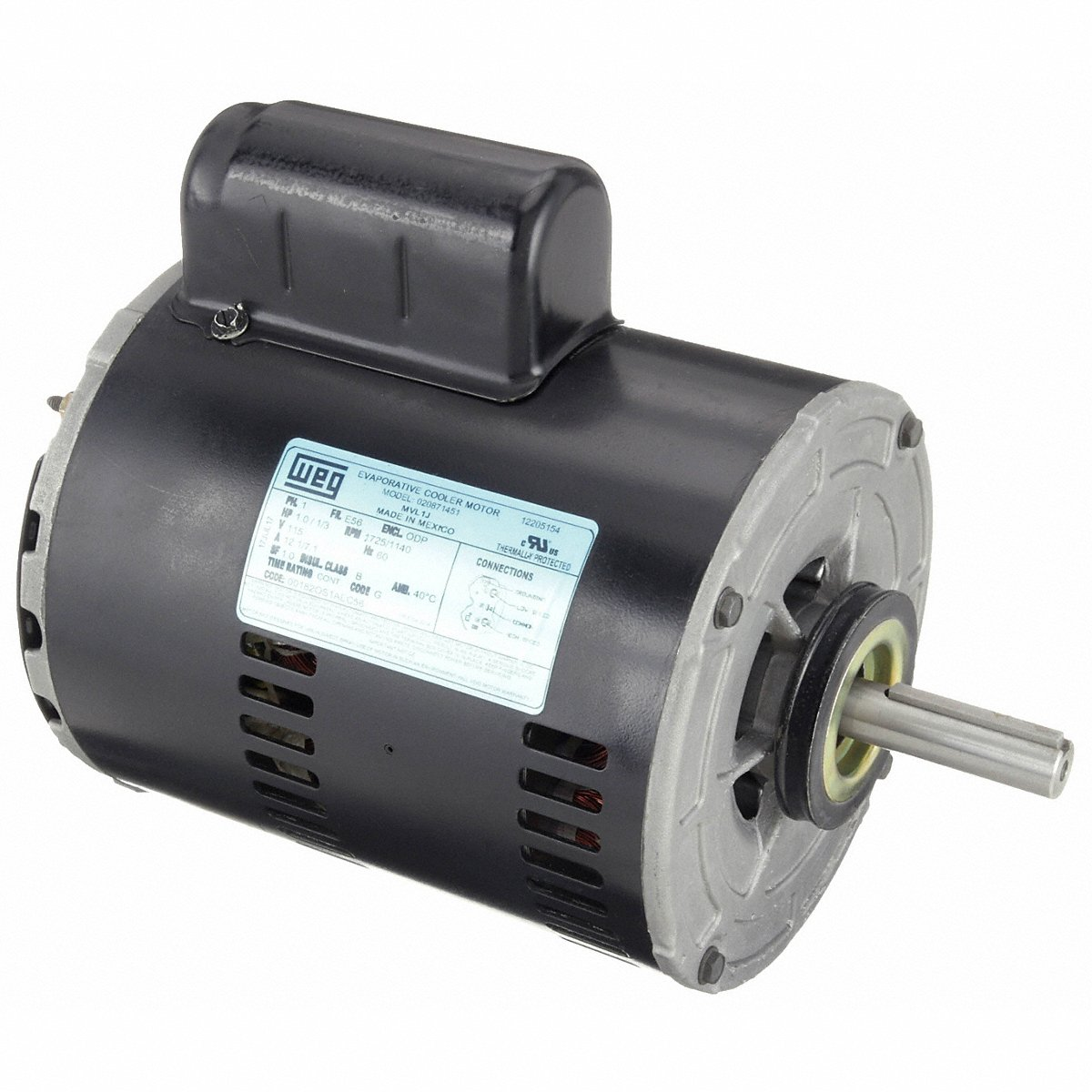

00182OS1AEC56 | 115V AC | 1 hp, 1/3 hp | Capacitor Start/Run | 2 | 5/8" | 12.1A | 1 7/8" | 8 7/16" | €438.67 | |
|
.5082OS1DEC56 | 240V | 1/2 hp, 1/6 hp | Split-Phase | 2 | 5/8" | 4.8/2.1A | 1 7/8" | 7 7/16" | €220.52 | |
|
.7582OS1DEC56 | 230V AC | 3/4 hp, 1/4 hp | Capacitor Start | 2 | 5/8" | 5.5A | 1 7/8" | 7 7/16" | €348.43 | |
|
00182OS1DEC56 | 230V AC | 1 hp, 1/3 hp | Capacitor Start | 2 | 5/8" | 6.45A | 1 7/8" | 8 7/16" | €477.29 | |
|
.5018OS1DEC56 | 230V AC | 1/2 hp | Split-Phase | 1 | 5/8" | 4.8A | 1 7/8" | 7 7/16" | €263.79 |
