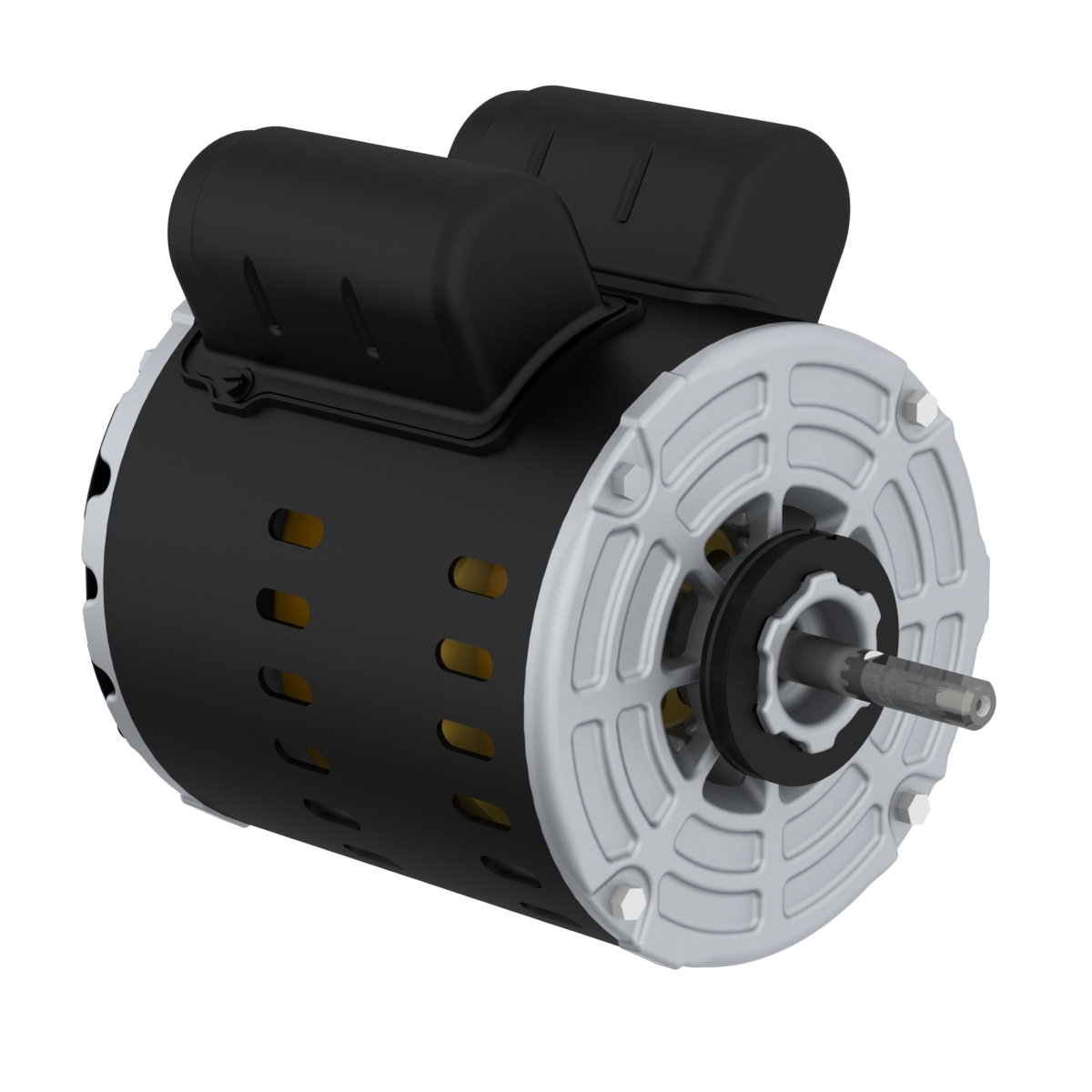

WEG .7518OS1AEC56 17496457 Air Handling Motor, Evaporative Cooler, 0.75 HP, 0.55 kW, 1800 RPM, E56 Frame, 115 V
Get it by Tuesday, Aug 25
€239.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 10.3A |
| Bearing Cap | No , No Without Bearing Cap |
| Body Dia. | 6 7/16" |
| Break Down Torque | 195% |
| Cold Locked Rotor Time | 18 sec. |
| De Bearing Seal | No |
| Degree Of Protection | IP21 |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure | IC01-ODP |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | E56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10.4A |
| Grade | Garde 1040/45 |
| Grounding Lugs Type | Single |
| Hp | 3/4 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 38.1A |
| Length Less Shaft | 7 7/8" |
| Locked Rotor Time(hot) | 10 sec. |
| Locked Rotor Torque | 114% |
| Lrc | 3.7x(Code G) |
| Material | Carbon Steel |
| Moment Of Inertia | 0.0902 lbs.-sq. ft. |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Ring |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Evaporator Cooler |
| Motor Thermal Protection | Automatic |
| Mounting | F-1 , Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 7.8A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Nominal Efficiency | 61.9% |
| Output Rating | 0.55 KW , 0.75 Hp |
| Overall Length | 9 9/16" |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1725 RPM |
| Rated Torque | 2.28 lbs.-ft. |
| Rated Voltage | 115V |
| Resilient Base | Without |
| Resilient Ring Dia. | 2 1/2" |
| Rotation | CW |
| Screw Cap | Carbon Steel Sae 1040/45 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Slip | 4.17% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Terminal Box1 | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 115V |
| Winding Thermal Protection | Thermostat 2 Wires 1 Per Phase 130°C |
Shipping Info:
| Ship weight (kg) | 8.91 |
| Ship length (cm) | 24.29 |
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Shaft Dia. | Shaft Length | Speed | No. Of Speeds | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.3382OS1AEC56 | 115V AC | 1/3 hp, 1/9 hp | 6.6/3.7A | 1/2" | 1 7/8" | 1160 RPM | 2 | 7 7/8" | €188.45 | |
 |
.5082OS1AEC56 | 115V AC | 1/2 hp, 1/6 hp | 8.2/4.6A | 1/2" | 1 7/8" | 1725 RPM | 2 | 7 7/8" | €271.28 | |
|
.7582OS1AEC56 | 115V AC | 3/4 hp, 1/4 hp | 10.3A | 1/2" | 1 1/2" | 1725 RPM | 2 | 7 7/8" | €280.25 | |
 |
00182OS1AEC56 | 115V AC | 1 hp, 1/3 hp | 12.1A | 5/8" | 1 7/8" | 1725 RPM | 2 | 8 13/16" | €438.67 | |
|
.5082OS1DEC56 | 240V | 1/2 hp, 1/6 hp | 4.8/2.1A | 5/8" | 1 7/8" | 1140 RPM | 2 | 7 7/8" | €220.52 | |
|
.7582OS1DEC56 | 240V | 3/4 hp, 1/4 hp | 5.5A | 5/8" | 1 7/8" | 1725 RPM | 2 | 7 7/8" | €348.43 | |
|
00182OS1DEC56 | 240V | 1 hp, 1/3 hp | 6.45A | 5/8" | 1 7/8" | 1725 RPM | 2 | 8 13/16" | €477.29 |
