WEG .7536ES1BJPR56C-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB9XER

WEG .7536ES1BJPR56C-S 14788840 Jet Pump Motor, 0.75 HP, 3600 RPM, 115/208-230 V, 1 Phase, TEFC, 56C Frame, Footless

Item: BB9XERModel: .7536ES1BJPR56C-SCross Ref: 14788840
Check Availability
In Stock
HP
Frame

Get it by Friday, Aug 21

€406.85 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 4-4.42/8A , 8/4.42-4A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 290%
Cable Press Material Sem
Cold Locked Rotor Time 18 sec.
Composition Steel
Design No
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 52% , 81%
Efficiency 75% 62%
Efficiency @ 1 % 91%
Efficiency @ 100% 66%
Efficiency @ 75 % 87%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 10 sec.
Hp 3/4 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 32-35.4/64A , 64/35.4-32A
Locked Rotor Time (cold) 18 sec.
Locked Rotor Time(hot) 10 sec.
Locked Rotor Torque 280%
Lrc 8.0X(Code L)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.0394 lbs.-sq. ft.
Moment Of Inertia (j) 0.0394 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3500 RPM
Mounting F-1 , Footless
No Load Amps 1.72-2/4A , 4/1.72-2A
No. Of Poles 2
Noise Level 68 dBA
Output 3/4 hp
Output Rating 3/4 hp
Overload Protection Automatic
Overload Protector Automatic
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 1
Power Factor 100% 0.91
Power Factor 50% 0.81
Power Factor 75% 0.87
Power Factor @ 1 % 66
Power Factor @ 50 % 52
Power Factor @ 75 % 62
Resilient Base Without
Rotation CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Slip 2.78%
Speed 3400-3600 RPM , 3500 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 1.13 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 18.45
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelVoltageHpFrameNo Load AmpsShaft MaterialMountingOutput RatingFan Cover MaterialPrice

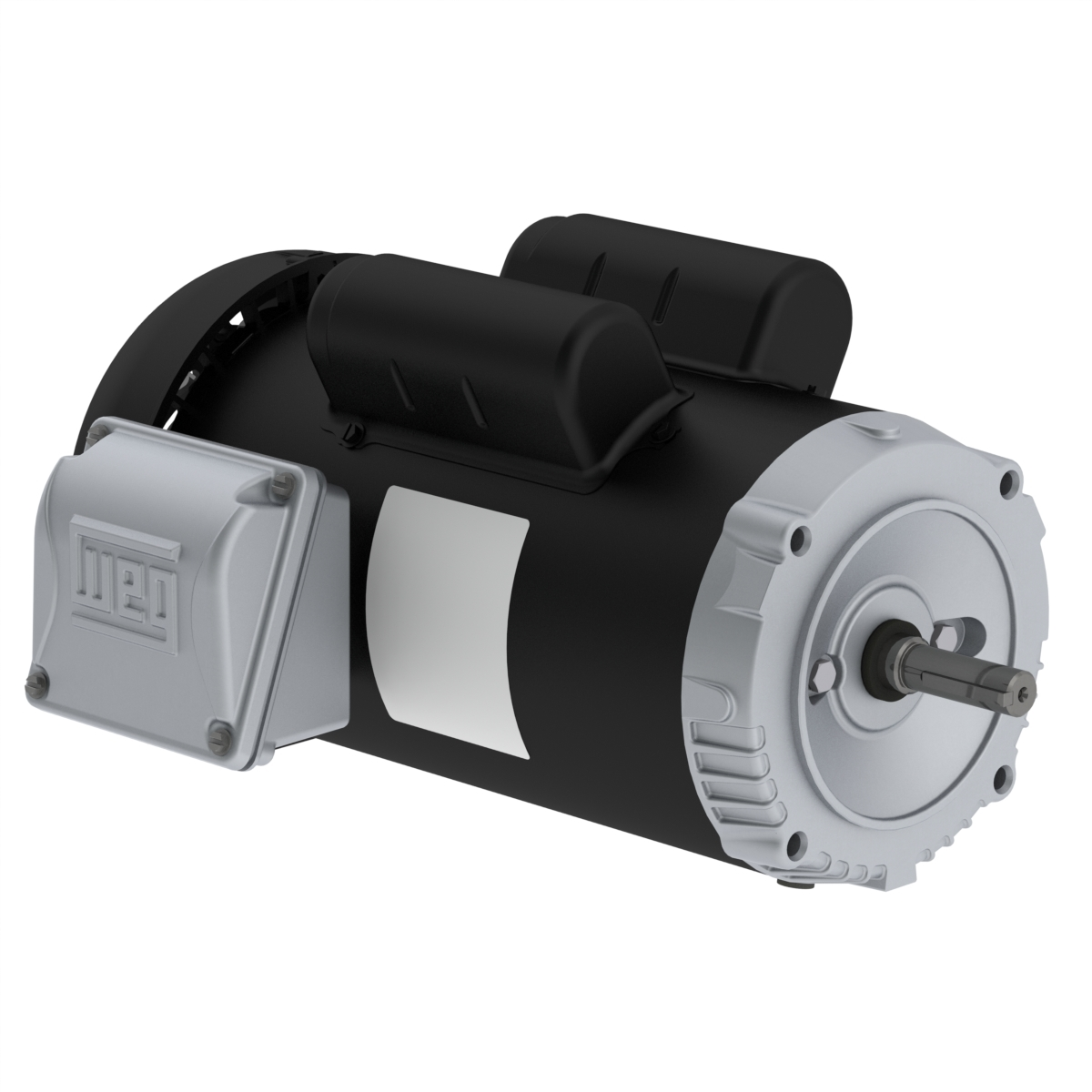

WEG .7536ES1BJPR56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB9DJD .7536ES1BJPR56J-S115/208-230V AC3/4 hp56J4/1.72-2AStainless SteelFootless3/4 hpSteel€400.88
WEG 00336ES1DJPR56J-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9MVF 00336ES1DJPR56J-S230V3 hp56J4AStainless SteelFootless3 hpSteel€683.62
WEG .5036ES1BJPRW56J-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB9PRV .5036ES1BJPRW56J-S115/208-230V AC1/2 hpW56J4.8/2.07-2.4AStainless SteelFootless1/2 hpPolymer€363.88
WEG 00136ES1BJPR56J-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BB9RHR 00136ES1BJPR56J-S115/208-230V AC1 hp56J5.5/2.37-2.75AStainless SteelFootless1 hpSteel€460.54

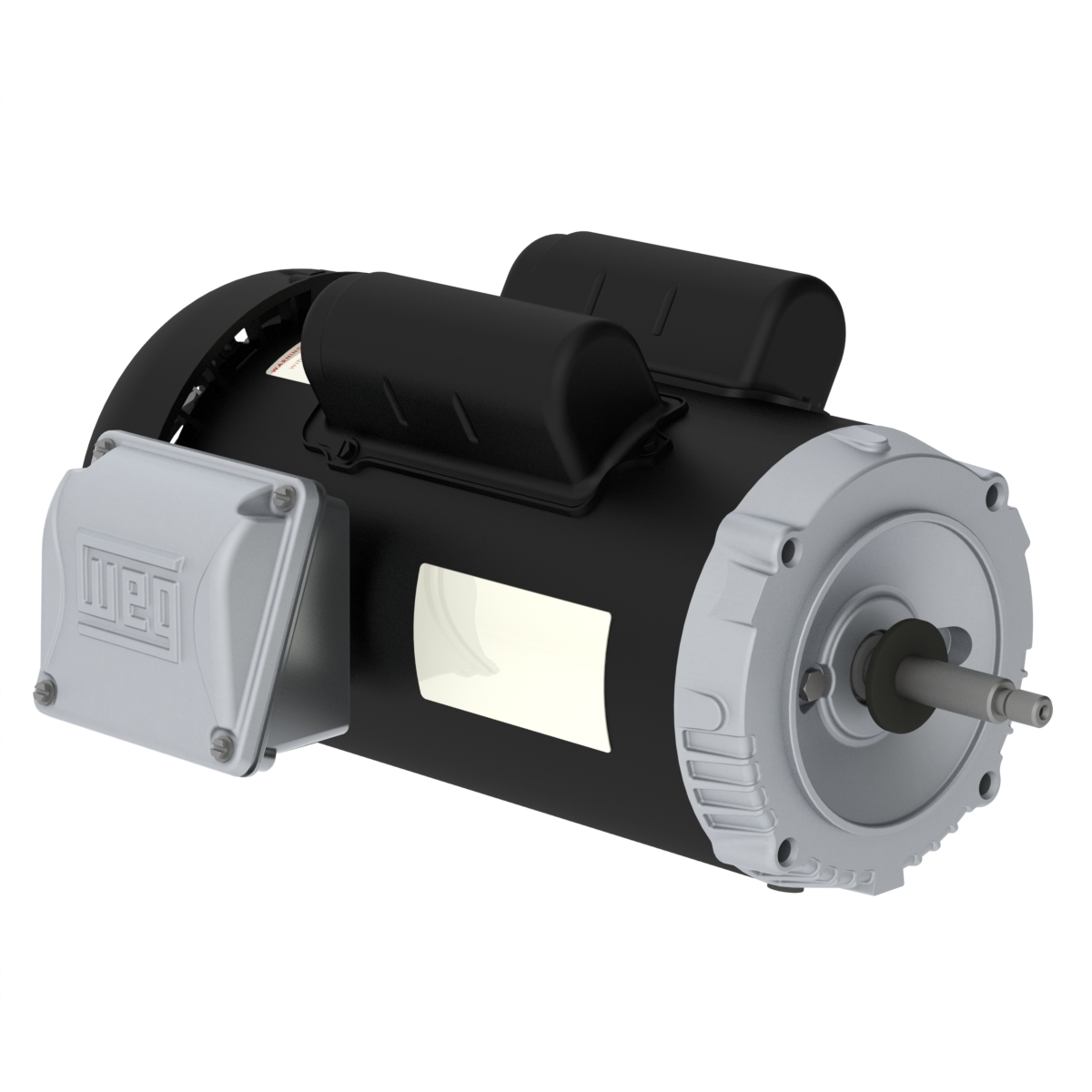

WEG 00236ES1BJPR56J-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9RHX 00236ES1BJPR56J-S115/208-230V AC-56J5/2.16-2.5AStainless SteelFootless2 hpSteel€594.14

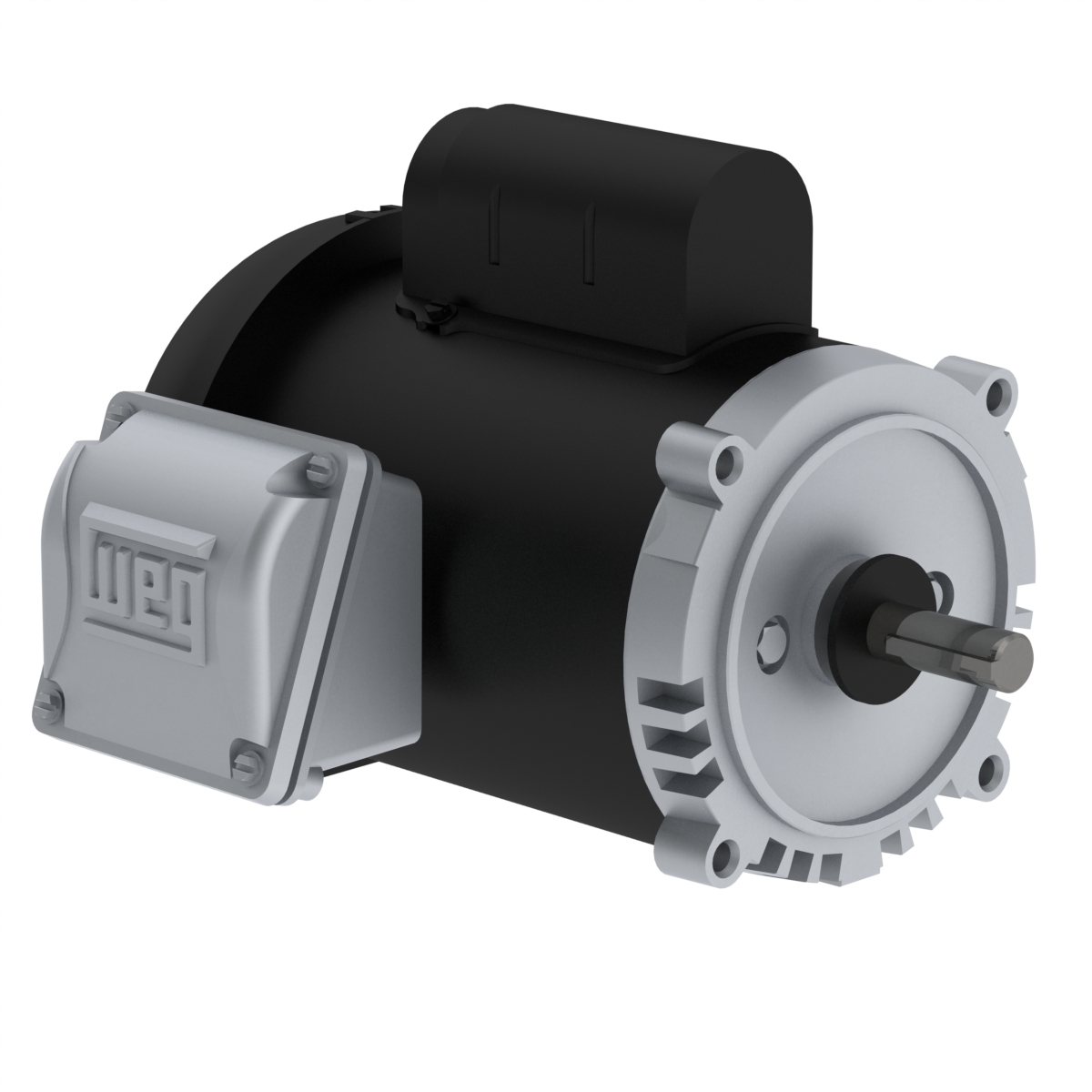

WEG .5036ES1BJPRW56C-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB9WPH .5036ES1BJPRW56C-S115/208-230V AC-W56C4.8/2.07-2.4AStainless SteelFootless1/2 hpPolymer€356.73
WEG 00136ES1BJPR56C-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BB9XRA 00136ES1BJPR56C-S115/208-230V AC-56C5.5/2.37-2.75AStainless SteelFootless1 hpSteel€425.94
