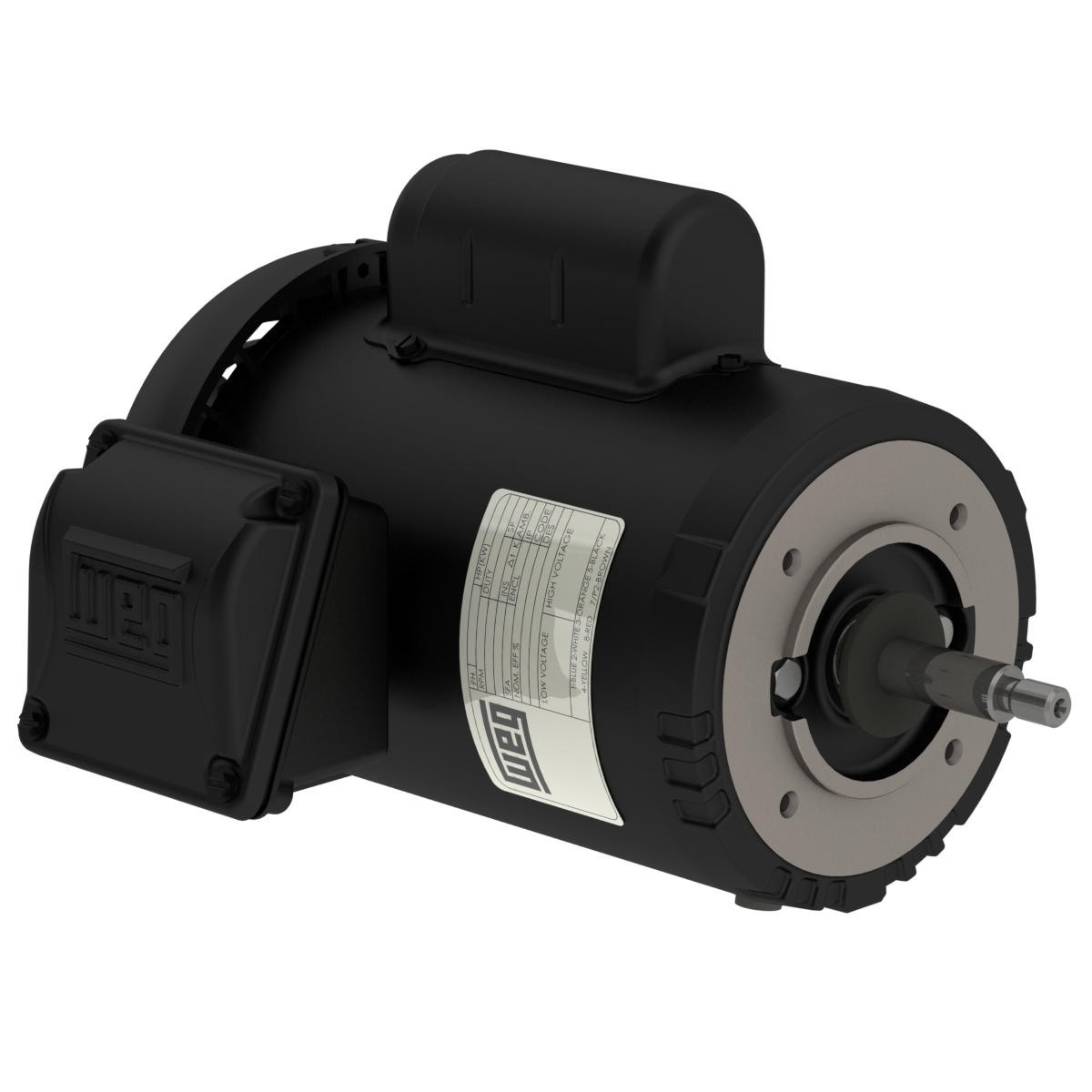

WEG .3336ES1BJPRW56J-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB9YHB

WEG .3336ES1BJPRW56J-S 13789730 Jet Pump Motor, 0.33 HP, 3600 RPM, 115/208-230 V, 1 Phase, TEFC, 56J Frame, Footless

Item: BB9YHBModel: .3336ES1BJPRW56J-SCross Ref: 13789730
Check Availability
In Stock
HP
Frame

Get it by Thursday, Apr 9

€353.16 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Bearing Cap Yes
Bolt Material Carbon Steel
Breakdown Torque 290%
Cable Press Material Sem
Composition Steel
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 56.5%
Efficiency @ 50% 44.5%
Efficiency @ 75% 52.5%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Industrial Polymer
Fan Material Plastic
Flange C
Flange Type C
Frame W56J
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hp 1/3 hp
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
L.r. Amperes 18.2-20.2/36.4A
Locked Rotor Time 8 sec.
Locked Rotor Time (cold) 14 sec.
Locked Rotor Torque 290%
Main Terminal Box Hole 0.881"
Moment Of Inertia (j) 0.019 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Mounting F-1 , Footless
No Load Amps 1.55-1.8/3.6A
No. Of Poles 2
Noise Level 66 dBA
Output Rating 0.33 hp , 1/3 hp
Overload Protection Automatic
Phase 1
Power Factor 50% 0.59
Power Factor 75% 0.67
Power Factor_100% 0.74
Rated Current 2.6-2.88/5.2A
Rated Speed 3490 RPM
Rated Torque 0.497 lbs.-ft.
Rated Voltage 115/208-230V
Resilient Base Without
Rotation CCW
Rpm 3400-3600 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Stainless Steel
Slip 3.06%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Voltage 115/208-230V AC

Shipping Info:

Ship weight (kg) 16.2
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelVoltageHpFrameNo Load AmpsShaft MaterialMountingOutput RatingFan Cover MaterialPrice
WEG .7536ES1BJPR56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB9DJD .7536ES1BJPR56J-S115/208-230V AC3/4 hp56J4/1.72-2AStainless SteelFootless3/4 hpSteel€400.88
WEG 00336ES1DJPR56J-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9MVF 00336ES1DJPR56J-S230V AC3 hp56J4AStainless SteelFootless3 hpSteel€683.62
WEG .5036ES1BJPRW56J-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB9PRV .5036ES1BJPRW56J-S115/208-230V AC1/2 hpW56J4.8/2.07-2.4AStainless SteelFootless1/2 hpPolymer€363.88
WEG 00136ES1BJPR56J-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BB9RHR 00136ES1BJPR56J-S115/208-230V AC1 hp56J5.5/2.37-2.75AStainless SteelFootless1 hpSteel€460.54
WEG 00236ES1BJPR56J-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9RHX 00236ES1BJPR56J-S115/208-230V AC-56J5/2.16-2.5AStainless SteelFootless2 hpSteel€594.14
WEG .5036ES1BJPRW56C-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB9WPH .5036ES1BJPRW56C-S115/208-230V AC-W56C4.8/2.07-2.4AStainless SteelFootless1/2 hpPolymer€356.73
WEG .7536ES1BJPR56C-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB9XER .7536ES1BJPR56C-S115/208-230V AC3/4 hp56C4/1.72-2AStainless SteelFootless3/4 hpSteel€406.85
