WEG .7518OS1DEC56 13898194 Air Handling Motor, Evaporative Cooler, 0.75 HP, 0.55 kW, 1800 RPM, E56 Frame, 240 V
Get it by Monday, May 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€293.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Evaporative Cooler Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Bearing Type | Ball |
| Body Dia. | 6 7/16" |
| Breakdown Torque | 210% |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Dia. | 6 7/16" |
| Diameter | 6 7/16" |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 59% |
| Efficiency @ 50% | 51.9% |
| Efficiency @ 75% | 59.1% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Features | Epoxy Paint Over A Layer Of Zinc Phosphate Helps Prevent Corrosion |
| Feet | Craddle Ready |
| Flange | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.47A |
| Grounding Lugs | Single |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip and Bake Polyester |
| Ins. Class | Class B |
| Insulation Class | Class B |
| L.r. Amperes | 31.7A |
| Length | 9 9/16" |
| Length Less Shaft | 7 7/8" |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 105% |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 0.0902 lbs.-sq. ft. |
| Motor Application | HVAC/R |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Evaporator Cooler |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting | F-1 |
| Mounting Type | Ring |
| Nameplate Rpm | 1725 RPM |
| No Load Amps | 4.6A |
| No. Of Speeds | 1 |
| Nominal Efficiency | 59% |
| Number Of Poles | 4 |
| Output Rating | 3/4 hp |
| Output Wattage | 550 W |
| Output Watts | 550 W |
| Overall Length | 9 9/16" |
| Overload Protection | No |
| Phase | 1 |
| Power Factor 50% | 0.47 |
| Power Factor 75% | 0.59 |
| Power Factor_100% | 0.71 |
| Product Datasheet | weg-7518os1dec56.pdf |
| Rated Current | 5.47A |
| Rated Speed | 1725 RPM |
| Rated Torque | 2.28 lbs.-ft. |
| Rated Voltage | 240V |
| Removable Base | Yes |
| Resilient Base | Without |
| Resilient Ring Dia. | 2 1/2" |
| Ring Dia. | 2 1/2" |
| Ring To Ring Center | 7 7/16" |
| Rotation | CW |
| Rpm | 1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 4.17% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 18.29 |
| Ship length (cm) | 24.29 |
| Ship width (cm) | 18.54 |
| HS code | 8501514040 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Motor Design | No. Of Speeds | Shaft Dia. | Full Load Amps | Shaft Length | Ring To Ring Center | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

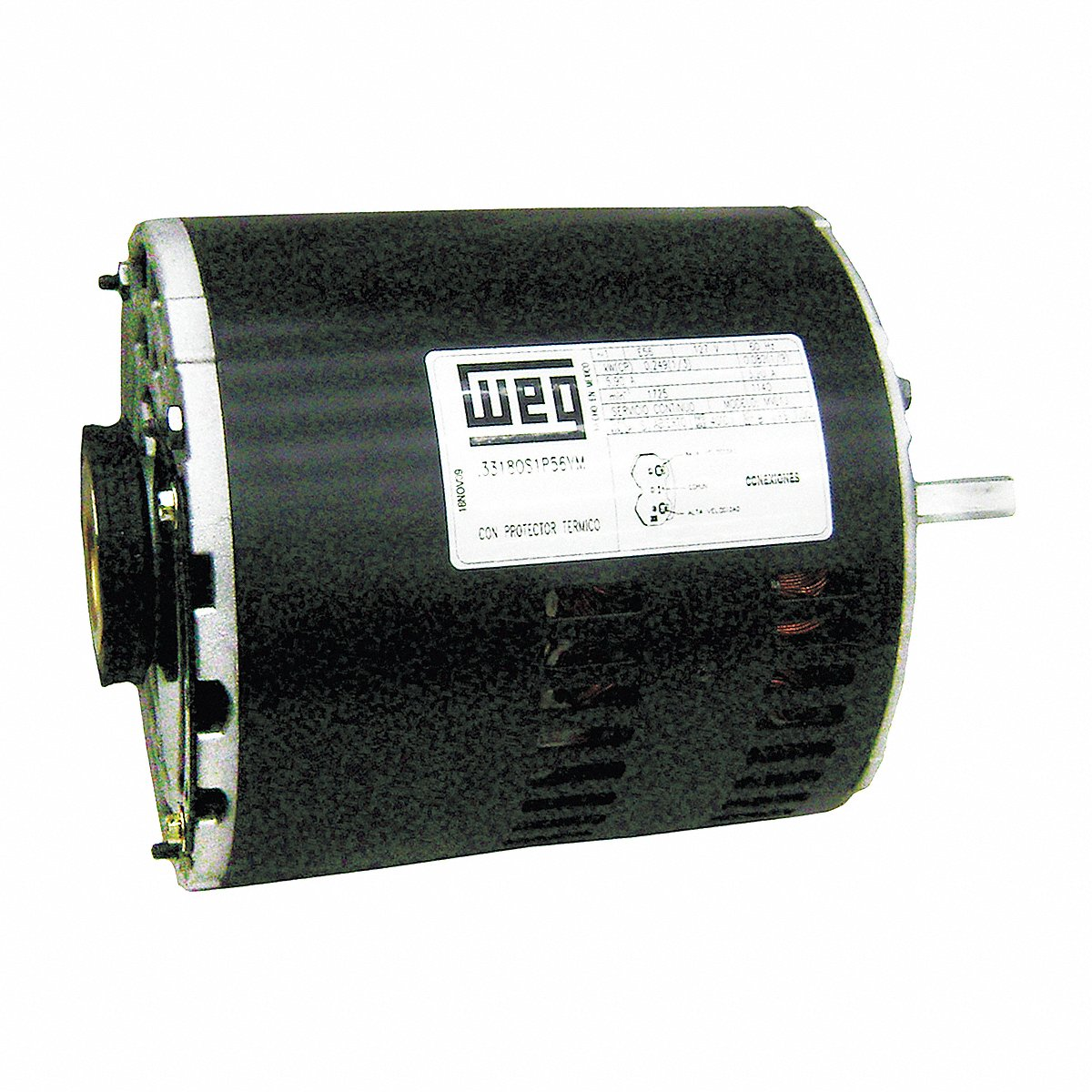

.3382OS1AEC56 | 115V AC | 1/3 hp, 1/9 hp | Split-Phase | 2 | 1/2" | 6.6/3.7A | 1 7/8" | 7 7/16" | €188.45 | |
 |

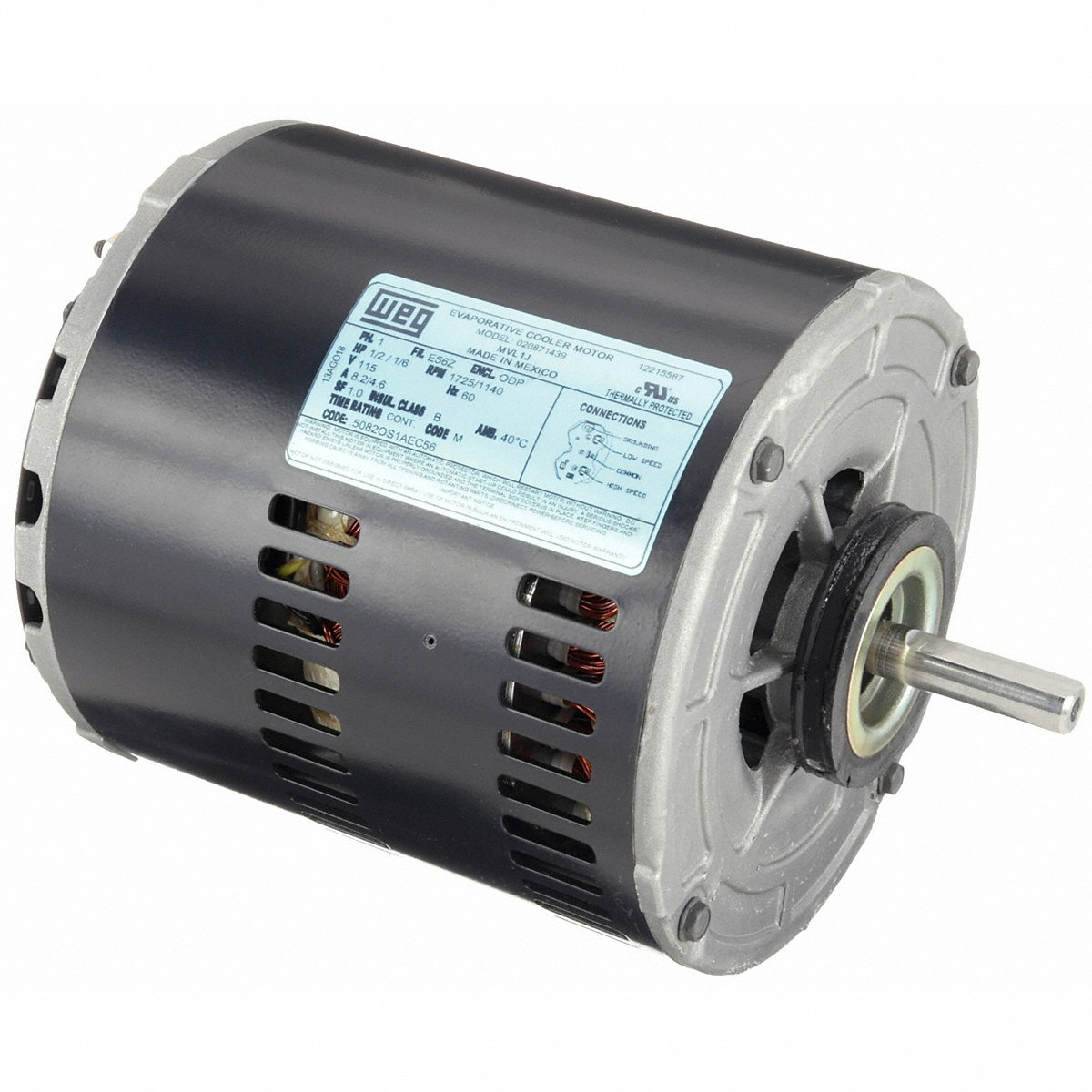

.5082OS1AEC56 | 115V AC | 1/2 hp, 1/6 hp | Split-Phase | 2 | 1/2" | 8.2/4.6A | 1 7/8" | 7 7/16" | €271.28 | |
|
.7582OS1AEC56 | 115V AC | 3/4 hp, 1/4 hp | Capacitor Start | 2 | 1/2" | 10.3A | 1 1/2" | 7 7/16" | €280.25 | |
 |

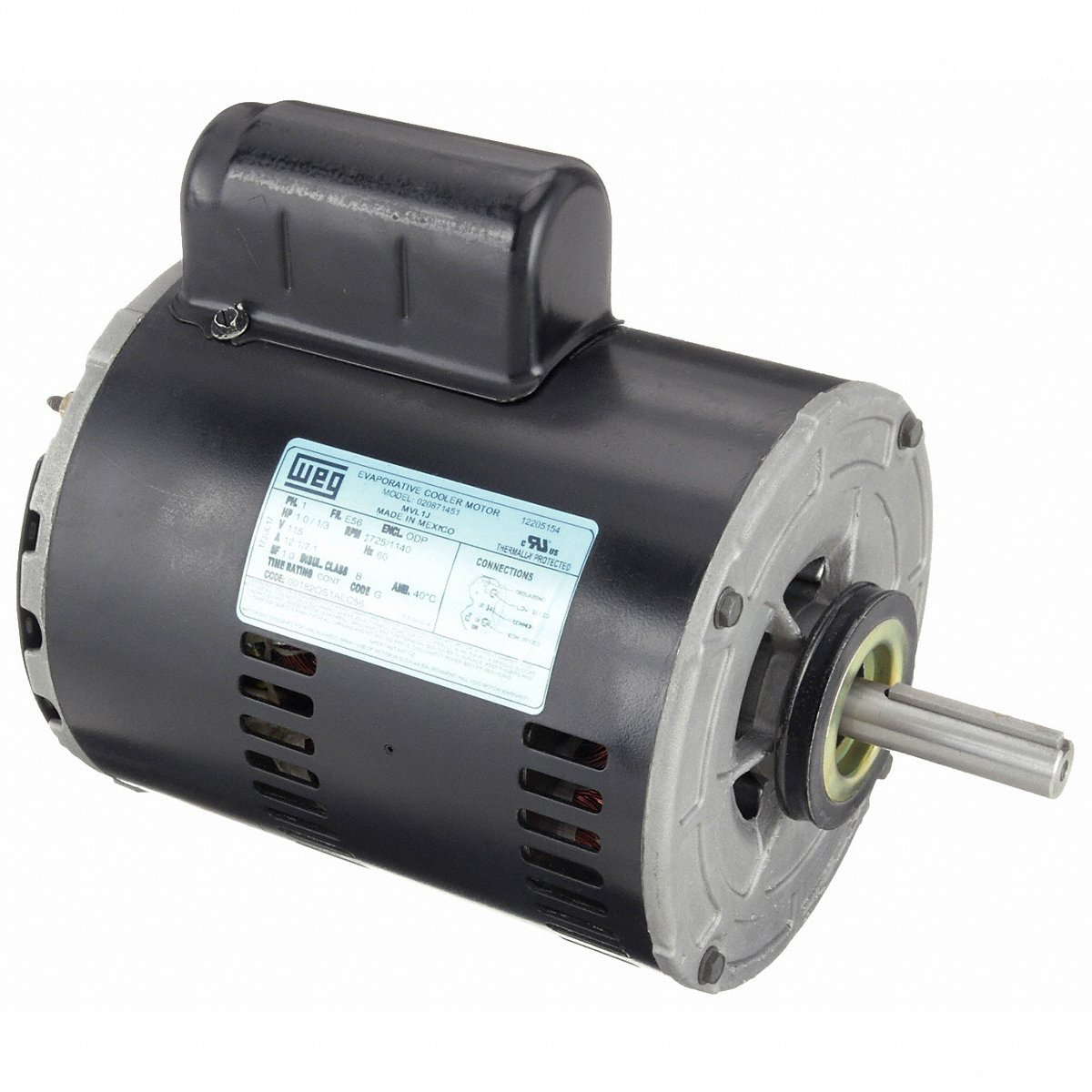

00182OS1AEC56 | 115V AC | 1 hp, 1/3 hp | Capacitor Start/Run | 2 | 5/8" | 12.1A | 1 7/8" | 8 7/16" | €438.67 | |
|
.5082OS1DEC56 | 240V | 1/2 hp, 1/6 hp | Split-Phase | 2 | 5/8" | 4.8/2.1A | 1 7/8" | 7 7/16" | €220.52 | |
|
.7582OS1DEC56 | 230V AC | 3/4 hp, 1/4 hp | Capacitor Start | 2 | 5/8" | 5.5A | 1 7/8" | 7 7/16" | €348.43 | |
|
00182OS1DEC56 | 230V AC | 1 hp, 1/3 hp | Capacitor Start | 2 | 5/8" | 6.45A | 1 7/8" | 8 7/16" | €477.29 |
