WEG 60012ET3X5809-W50MV 13305565 Electric Motor, 600Hp, 60Hz, 1200 Rpm
Get it by Tuesday, Aug 25
€110,467.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 147A |
| Balancing Method | 1/2" Key |
| Bearing Thermal Protection | PT100-3 Wires 1 on DE bearing |
| Bolt Material | Carbon Steel |
| Break Down Torque | 250% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 28 sec. |
| Connection Cables Quantity | 6 |
| Drain | Stainless Steel, Threaded |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 62% , 93.3% |
| Efficiency 75% | 94.5% |
| Efficiency @ 1 % | 79% |
| Efficiency @ 100% | 95% |
| Efficiency @ 75 % | 73% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Cast Iron |
| Flange | Without |
| Flange Type | Without |
| Foot Flatness | (0.005 Pol) 0.127 mm , 0.127 mm |
| Frame | 5809/10 |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Double Additional In Brass , Double, Additional in Brass |
| Hot Locked Rotor Time | 16 sec. |
| Impregnation Method | Sealed Winding, 2 x VPI, Pulverization , Vacuum Pressure Impregnation (VPI) |
| Insulation Class | Class F |
| Joints Seal | Molykote |
| L. R. Amps | 926A |
| Locked Rotor Time (cold) | 28 sec. |
| Locked Rotor Time(hot) | 16 sec. |
| Locked Rotor Torque | 90% |
| Lrc | 6.3X(Code G) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Size | 3" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 418 lbs.-sq. ft. |
| Moment Of Inertia (j) | 418 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1192 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 70.3A |
| No. Of Poles | 6 |
| Noise Level | 77 dBA |
| Output | 600 hp |
| Output Rating | 600 hp |
| Painting | RAL5009 214P (ISO 12944-C4) |
| Phase | 3 |
| Power Factor 100% | 0.79 |
| Power Factor 50% | 0.62 |
| Power Factor 75% | 0.73 |
| Power Factor @ 1 % | 95 |
| Power Factor @ 50 % | 93.3 |
| Power Factor @ 75 % | 94.5 |
| Regreasing System | Extended In Stainless Steel, At Drive End And Non-Drive End , Stainless Steel, At Drive End And Non Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1 |
| Shaft Locking Device | With |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.67% |
| Space Heater Voltage | 110-127/200-240V , 110-127/200-240V AC |
| Speed | 1100-1200 RPM , 1192 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position , With |
| Torque | 2640 lbs.-ft. |
| Tropicalized Painting | According To Ieee-841 (96H) |
| Voltage | 2300/4160V , 2300/4160V AC , 2300V AC |
| Winding Thermal Protection | PT100-3 Wires 2 Per Phase |
Shipping Info:
| Ship weight (kg) | 3069.48 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Hp | Frame | Insulation Class | Duty Cycle | No. Of Poles | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
40018ET3X5009-W50MV | 2300/4160V AC | 400 hp | 5009/10 | F | Continuous | 4 | 1800 RPM | 34A | €63,884.26 | |
|
70018ET3X6806-W50MV | 2300/4160V AC | 700 hp | 6806/07 | F | Continuous | 4 | 1800 RPM | 52.4A | €111,094.03 | |
|
30036ET3X5009-W50MV | 2300/4160V AC | 300 hp | 5009/10 | F | Continuous | 2 | 3600 RPM | 14A | €54,277.68 | |
 |
50036ET3X5809-W50MV | 2300/4160V AC | - | 5809/10 | Class F | S1 | 2 | 3600 RPM | 24A | €83,484.83 | |
|
60018ET3X5809-W50MV | 2300/4160V AC | - | 5809/10 | Class F | S1 | 4 | 1800 RPM | 44A | €96,205.40 | |
 |
20018ET3XL449-W22MV | 2300/4160V AC | - | L447/9T | Class F | S1 | 4 | 1800 RPM | 19A | €39,675.70 | |
 |

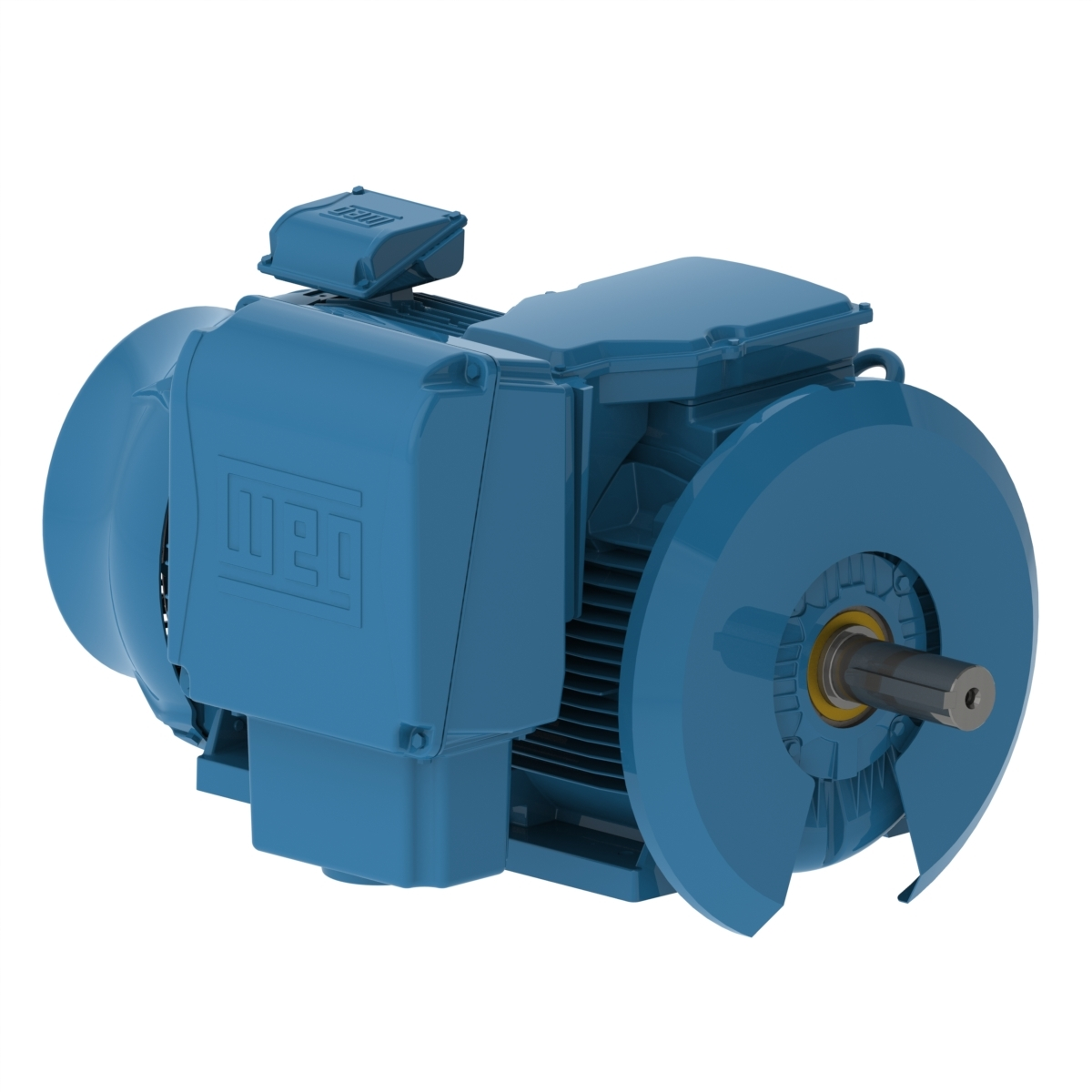

20012ET3XL449-W22MV | 2300/4160V AC | - | L447/9T | Class F | S1 | 6 | 1200 RPM | 24.3A | €45,186.61 |
