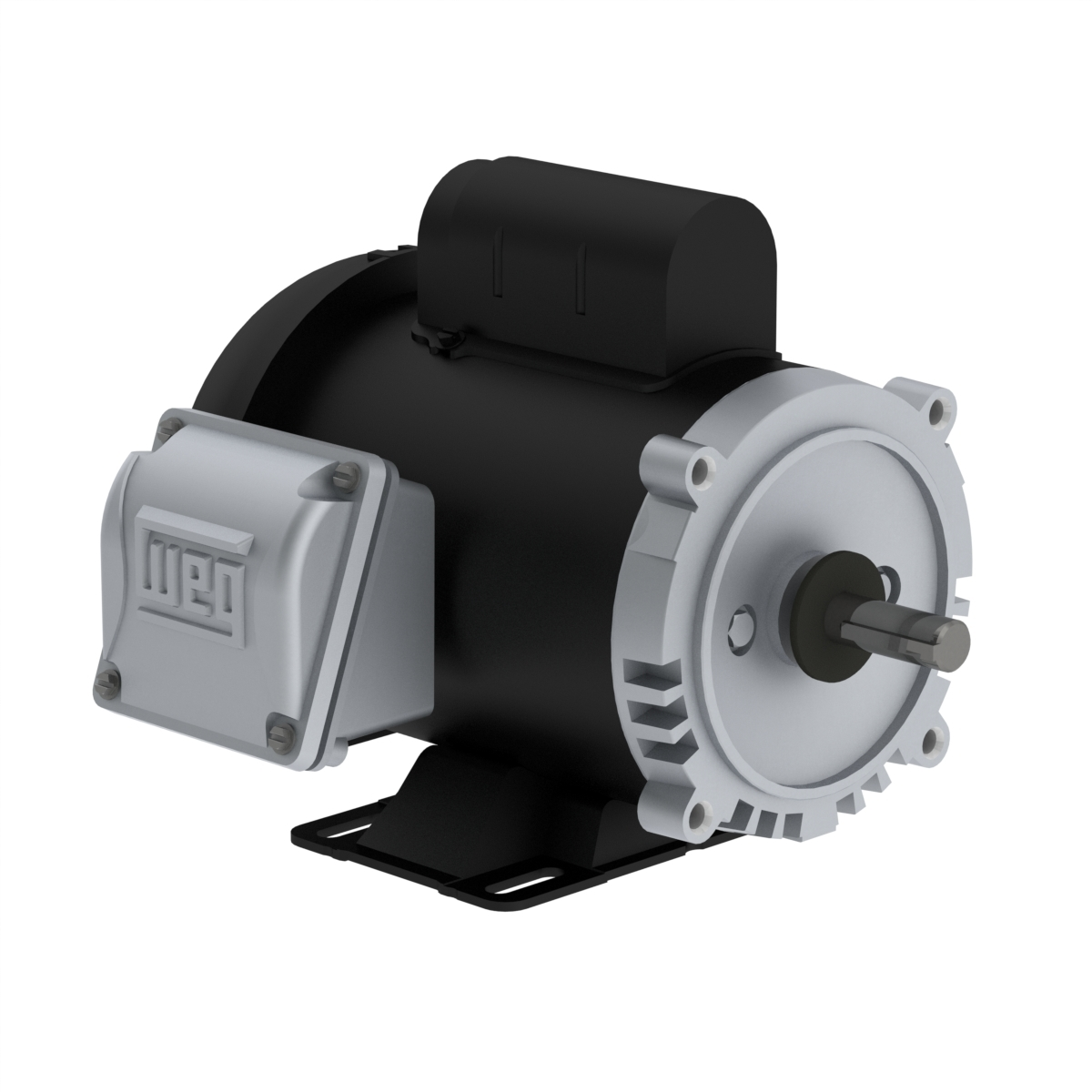

WEG .5036ES1BJPW56C-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BC2FGP

WEG .5036ES1BJPW56C-S 14419291 Pump Motor, 0.5 HP, 3600 RPM, 115/208-230V, TEFC, 56C, Footed, Jet Pump

Item: BC2FGPModel: .5036ES1BJPW56C-SCross Ref: 14419291
Check Availability
In Stock
HP
Frame

Get it by Wednesday, Aug 26

€338.84 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 3.5-3.87/7A , 7/3.87-3.5A
Balancing Method Not Balanced
Bearing Cap Yes
Bolt Material Carbon Steel
Cold Locked Rotor Time 12 sec.
Degree Of Protection IP55
Design No
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 50% , 59%
Efficiency 75% 58%
Efficiency @ 1 % 76%
Efficiency @ 100% 60%
Efficiency @ 75 % 69%
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Industrial Polymer , Polymer
Fan Material Plastic
Flange C
Flange Type C
Frame W56C
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 7 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 28-31/56A , 56/31-28A
Locked Rotor Time 7 sec.
Locked Rotor Time (cold) 12 sec.
Locked Rotor Torque 290%
Lrc 8.0X(Code P)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.0233 lbs.-sq. ft.
Moment Of Inertia (j) 0.0233 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3500 RPM
Mounting F-1 , Foot Mounted
No Load Amps 2.07-2.4/4.8A , 4.8/2.07-2.4A
No. Of Poles 2
Noise Level 66 dBA
Output 1/2 hp
Output Rating 1/2 hp
Overload Protection Automatic
Overload Protector Automatic
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 1
Power Factor 100% 0.76
Power Factor 50% 0.59
Power Factor 75% 0.69
Power Factor @ 1 % 60
Power Factor @ 50 % 50
Power Factor @ 75 % 58
Resilient Base Without
Rotation CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Slip 2.78%
Speed 3400-3600 RPM , 3500 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 0.75 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 11.25
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelVoltageHpDuty CycleNo Load AmpsMountingOutput RatingFan Cover MaterialAltitudePrice
WEG 00236ES1BJP56J-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB8JDH 00236ES1BJP56J-S115/208-230V AC2 hpS15/2.16-2.5AFoot Mounted2 hpSteel1000 MASL€579.84
WEG 00336ES1DJP56J-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9CNN 00336ES1DJP56J-S230V3 hpContinuous4AFoot Mounted3 hpPolymer1000 MASL€664.55
WEG 00156ES1BJP56C-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BB9QDX 00156ES1BJP56C-S115/208-230V AC1 1/2 hpS14.6/1.98-2.3AFoot Mounted1 1/2 hpSteel1000 MASL€491.54
WEG 00136ES1BJP56C-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BB9XBV 00136ES1BJP56C-S115/208-230V AC1 hpS15.5/2.37-2.75AFoot Mounted1 hpSteel1000 MASL€410.41
WEG .3336ES1BJPW56C-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB9XEP .3336ES1BJPW56C-S115/208-230V AC1/3 hpContinuous3.6/1.55-1.8AFoot Mounted1/3 hpPolymer1000 MASL€293.76
WEG 00236ES1BJP56C-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9YRU 00236ES1BJP56C-S115/208-230V AC2 hpS15/2.16-2.5AFoot Mounted2 hpSteel1000 MASL€581.03
WEG .7536ES1BJP56C-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BC2AFP .7536ES1BJP56C-S115/208-230V AC-S14/1.72-2AFoot Mounted3/4 hpSteel1000 MASL€381.78
