WEG 00136ES1BJP56J-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BC2CKK

WEG 00136ES1BJP56J-S 14804533 Jet Pump Motor, 1 HP, 3600 RPM, 115/208-230 V, 1 Phase, TEFC, 56J Frame, Footed

Item: BC2CKKModel: 00136ES1BJP56J-SCross Ref: 14804533
Check Availability
In Stock
HP
Frame

Get it by Tuesday, Apr 7

€446.20 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Without Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 280%
Breakdown Torque 280%
Cold Locked Rotor Time 14 sec.
Design N
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 70%
Efficiency @ 50% 55%
Efficiency @ 75% 64%
Efficiency At 1 % 92%
Efficiency At 50 % 82%
Efficiency At 75 % 88%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 56J
Frame Material Rolled Steel
Frame Size 56J
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 8 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 85/47.4-42.5A
L.r. Amperes 42.5-47.4/85A
Locked Rotor Time 8 sec.
Locked Rotor Time (cold) 14 sec.
Locked Rotor Torque 280%
Lrc 8.4X(Code L)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.0472 lbs.-sq. ft.
Moment Of Inertia (j) 0.0472 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3500 RPM
Mounting F-1 , Foot Mounted
No Load Amps 2.37-2.75/5.5A , 5.5/2.37-2.75A
No. Of Poles 2
Noise Level 68 dBA
Output 1 hp
Output Rating 1 hp
Overload Protection Automatic
Overload Protector Automatic
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 1
Power Factor 50% 0.82
Power Factor 75% 0.88
Power Factor At 1 % 70
Power Factor At 50 % 55
Power Factor At 75 % 64
Power Factor_100% 0.92
Rated Current 10.1/5.64-5.06A , 5.06-5.64/10.1A
Rated Speed 3500 RPM
Rated Torque 1.5 lbs.-ft.
Rated Voltage 115/208-230V , 115/208-230V AC
Resilient Base Without
Rotation CCW
Rpm 3400-3600 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Slip 2.78%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 115/208-230V AC

Shipping Info:

Ship weight (kg) 20.7
Ship height (cm)25.4
Ship length (cm)34.58
Ship width (cm)25.4
Country of OriginBR

Product Variants

ProductModelVoltageHpDuty CycleNo Load AmpsMountingOutput RatingFan Cover MaterialAltitudePrice

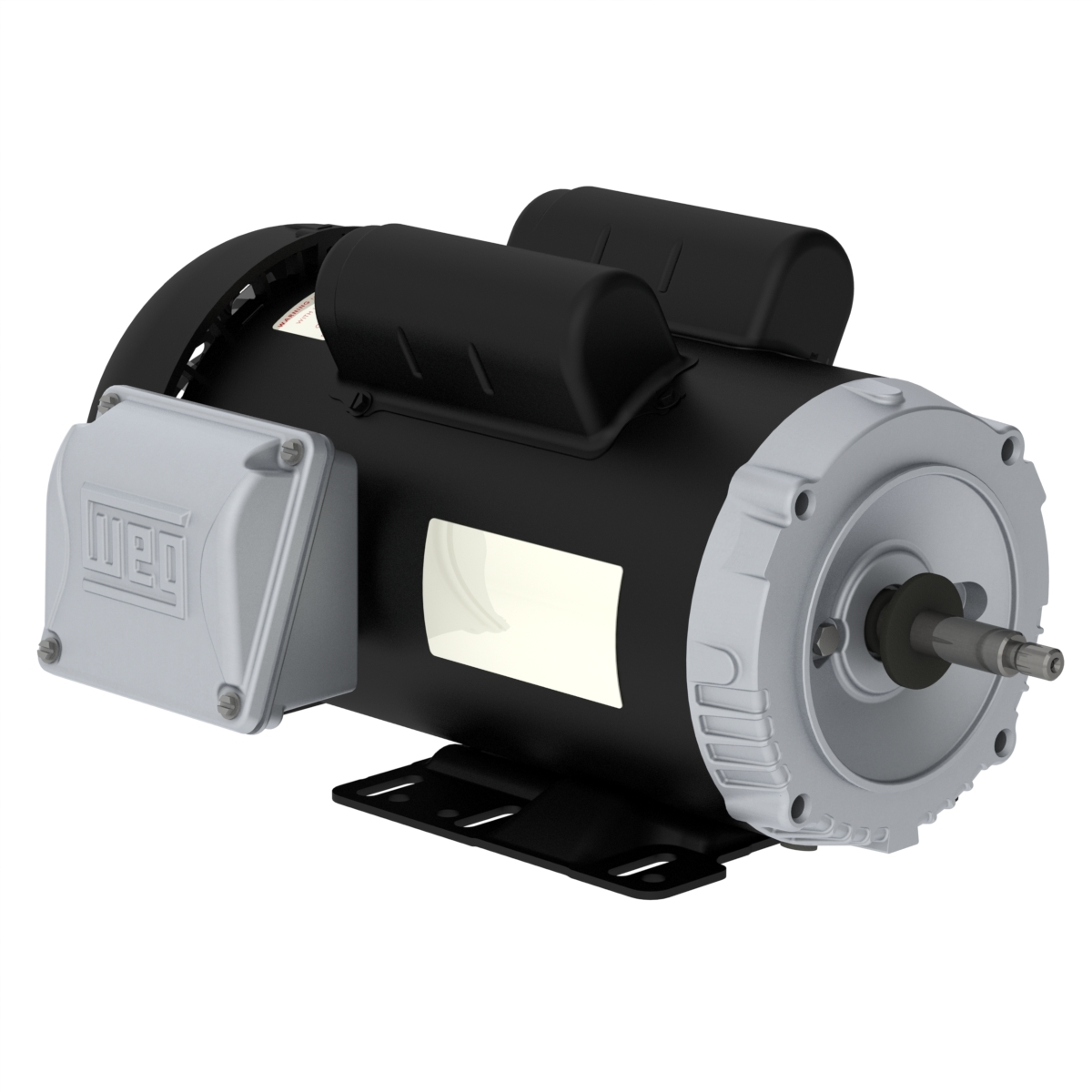

WEG 00236ES1BJP56J-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB8JDH 00236ES1BJP56J-S115/208-230V AC2 hpS15/2.16-2.5AFoot Mounted2 hpSteel1000 MASL€579.84

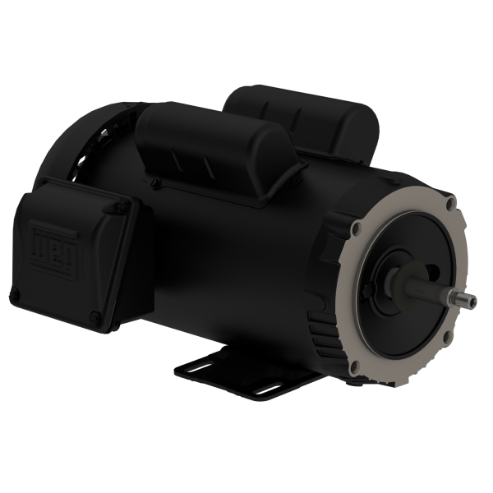

WEG 00336ES1DJP56J-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9CNN 00336ES1DJP56J-S230V3 hpContinuous4AFoot Mounted3 hpPolymer1000 MASL€664.55
WEG 00156ES1BJP56C-S Electric Motor, 1.5Hp, 60Hz, 3600 Rpm | BB9QDX 00156ES1BJP56C-S115/208-230V AC1 1/2 hpS14.6/1.98-2.3AFoot Mounted1 1/2 hpSteel1000 MASL€491.54
WEG 00136ES1BJP56C-S Electric Motor, 1Hp, 60Hz, 3600 Rpm | BB9XBV 00136ES1BJP56C-S115/208-230V AC1 hpS15.5/2.37-2.75AFoot Mounted1 hpSteel1000 MASL€410.41

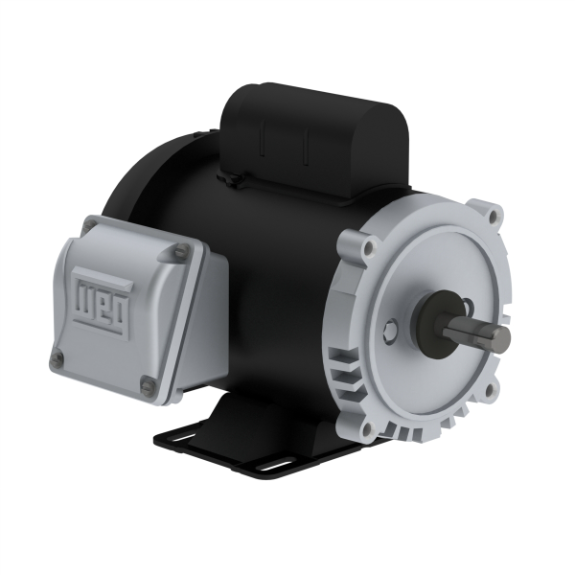

WEG .3336ES1BJPW56C-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB9XEP .3336ES1BJPW56C-S115/208-230V1/3 hpContinuous3.6/1.55-1.8AFoot Mounted1/3 hpPolymer1000 MASL€293.76
WEG 00236ES1BJP56C-S Electric Motor, 2Hp, 60Hz, 3600 Rpm | BB9YRU 00236ES1BJP56C-S115/208-230V AC2 hpS15/2.16-2.5AFoot Mounted2 hpSteel1000 MASL€581.03

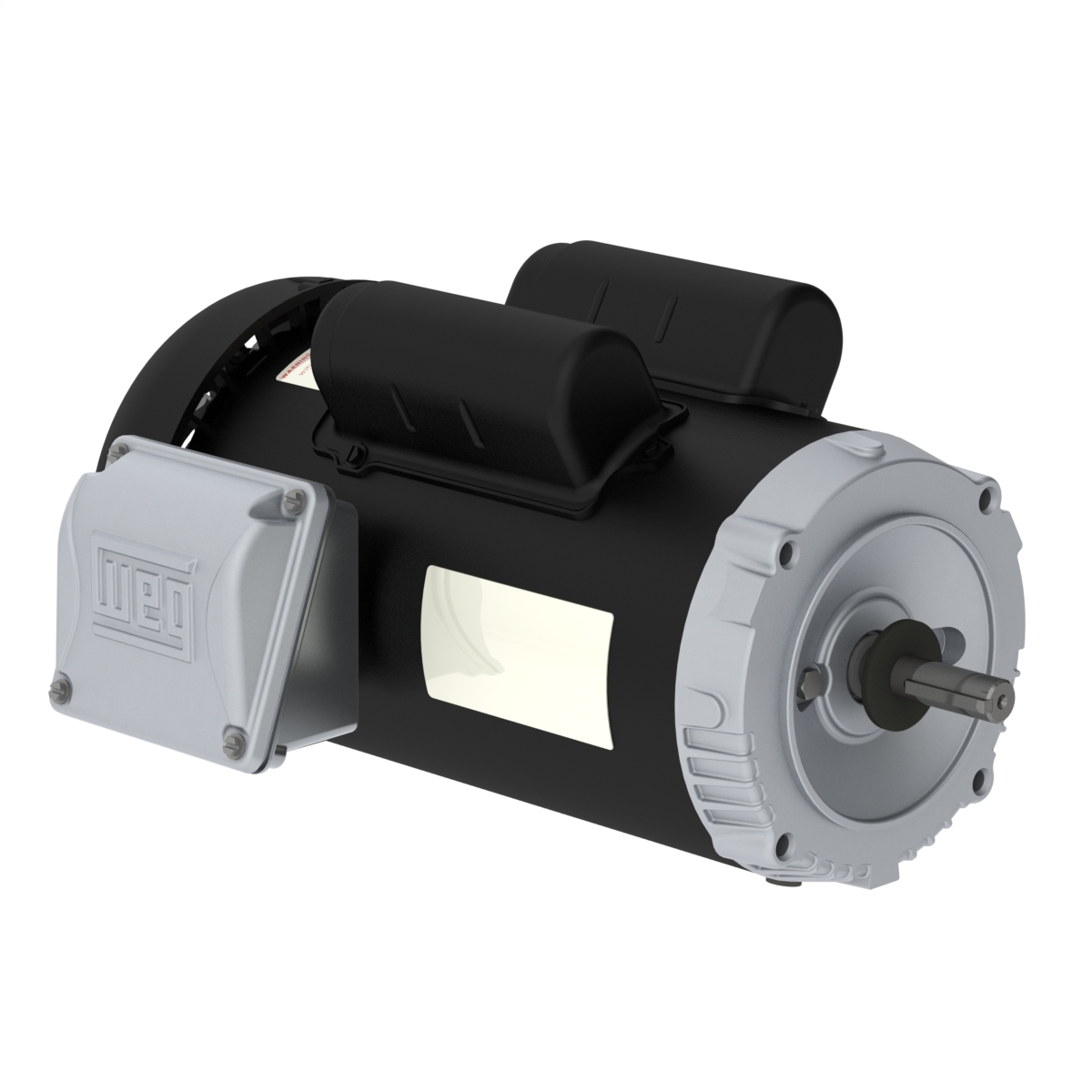

WEG .7536ES1BJP56C-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BC2AFP .7536ES1BJP56C-S115/208-230V AC-S14/1.72-2AFoot Mounted3/4 hpSteel1000 MASL€381.78
