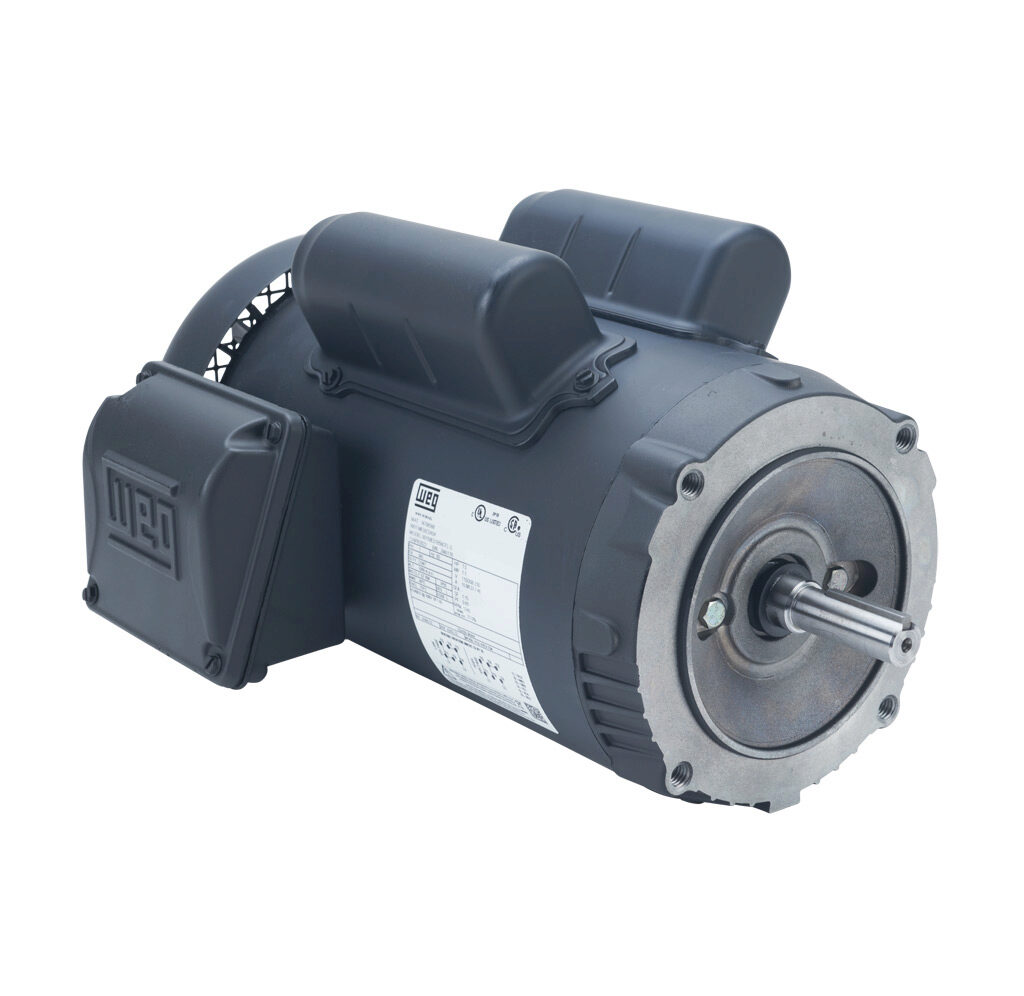

WEG 00158ES1B56CFL-S 14786566 General Purpose Motor, Rolled Steel Frame, 1.5 HP, 4 Poles, 56C, 1 Phase, 115/208-230 V, 60 Hz, IC411-TEFC, Footless
Get it by Wednesday, Apr 15
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 270% |
| Breakdown Torque | 270% |
| Cold Locked Rotor Time | 14 sec. |
| Composition | Steel |
| Design | L |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 77% |
| Efficiency @ 100% | 77% |
| Efficiency @ 50% | 69% |
| Efficiency @ 75% | 75% |
| Efficiency At 1 % | 83% |
| Efficiency At 50 % | 68% |
| Efficiency At 75 % | 78% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 8 sec. |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 120/66.2-59.8A |
| L.r. Amperes | 59.8-66.2/120A |
| Locked Rotor Time | 8 sec. |
| Locked Rotor Time (cold) | 14 sec. |
| Locked Rotor Torque | 250% |
| Lrc | 8.0X(Code L) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.1426 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1426 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Speed | 1745 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Footless |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 1745 RPM |
| Nema Design | Design L |
| No Load Amps | 3.71-4.3/8.6A , 8.6/3.71-4.3A |
| No. Of Poles | 4 |
| Noise Level | 54 dBA |
| Number Of Phases | 1 |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor 50% | 0.68 |
| Power Factor 75% | 0.78 |
| Power Factor At 1 % | 77 |
| Power Factor At 50 % | 69 |
| Power Factor At 75 % | 75 |
| Power Factor_100% | 0.83 |
| Product Datasheet | weg-00158es1b56cfl-s.pdf |
| Rated Current | 15/8.27-7.48A , 7.48-8.27/15A |
| Rated Speed | 1745 RPM |
| Rated Torque | 4.51 lbs.-ft. |
| Rated Voltage | 115/208-230V , 115/208-230V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
| Voltage Rating | 115/208-230V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 21.01 |
| Ship height (cm) | 77.98 |
| Ship length (cm) | 38.31 |
| Ship width (cm) | 85.09 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Full Load Amps | Frame | Rpm | Duty Cycle | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.5018ES1BW56CFL-S | 115/208-230V AC | 1/2 hp | 1730 RPM | - | W56C | 1700-1800 RPM | S1 | 4 | €543.60 | |
 |
.7518ES1B56CFL-S | 115/208-230V AC | 3/4 hp | 1745 RPM | - | 56C | 1700-1800 RPM | S1 | 4 | €441.44 | |
 |
.3318ES1BW56CFL-S | 115/208-230V AC | - | 1735 RPM | - | W56C | 1700-1800 RPM | S1 | 4 | €496.80 | |
 |
00236ES1B56CFL-S | 115/208-230V AC | 2 hp | 3495 RPM | - | 56C | 3400-3600 RPM | S1 | 2 | €961.20 | |
 |
.5012ES1B56CFL-S | 115/208-230V | 1/2 hp | - | - | 56C | 1100-1200 RPM | Continuous | 6 | €638.29 | |
|
.7512ES1B56CFL-S | 115/208-230V | 3/4 hp | - | - | 56C | 1100-1200 RPM | Continuous | 6 | €798.17 | |
 |
00118ES1B56CFL-S | 115/208-230V | 1 hp | 1745 RPM | 13.6/7.52-6.8A | 56C | 1700-1800 RPM | Continuous | 4 | €586.49 |
