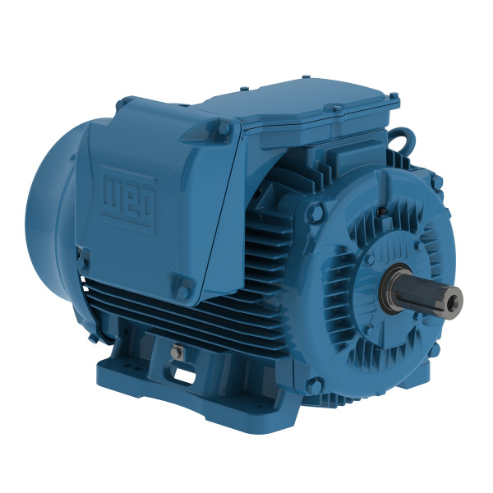

WEG 35018ET3GKD449T-W22 13500655 Severe Duty Motor, 350 HP, 1800 RPM, 460 V PWS, 3 Phase, TEFC, 449T Frame, Footed, Crusher Duty
Get it by Tuesday, Feb 24
€41,832.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 280% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 12 |
| Design | A |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 85% |
| Efficiency At 50 % | 73% |
| Efficiency At 75 % | 82% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange Type | Without |
| Frame | 447/9T |
| Frame Material | Cast Iron |
| Frame Size | 449T |
| Frequency | 60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 14 sec. |
| Impregnation Method | Constant Resin Flow |
| L. R. Amps | 3192A |
| Locked Rotor Torque | 280% |
| Lrc | 8.0X(Code J) |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 118 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1785 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 135A |
| No. Of Holes | 2 |
| No. Of Poles | 4 |
| Noise Level | 75 dBA |
| Output | 350 hp |
| Output Rating | 350 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 96.2 |
| Power Factor At 50 % | 95.8 |
| Power Factor At 75 % | 96.2 |
| Rated Current | 399A |
| Rated Torque | 1030 lbs.-ft. |
| Rated Voltage | 460V AC |
| Regreasing System | Extended, At Drive End And Non Drive End |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Locking Device | With |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.83% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 460V |
Shipping Info:
| Ship weight (kg) | 1466.1 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Model | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 1 | 50 Hz | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €914.46 | |
| 00218ET3W100L-W22 | 1 | 60 Hz | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | 1700-1800 RPM | €1,095.12 | |
| 00418ET3Y112M-W22 | 1 | 50 Hz | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €1,177.86 | |
| 00518ET3Y132S-W22 | 1 | 60 Hz | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | 1700-1800 RPM | €1,613.01 | |
| 00718ET3Y132M-W22 | 1 | 50 Hz | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | 1700-1800 RPM | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | 25 hp | 30.6A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | 30 hp | 36A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €5,926.53 |
