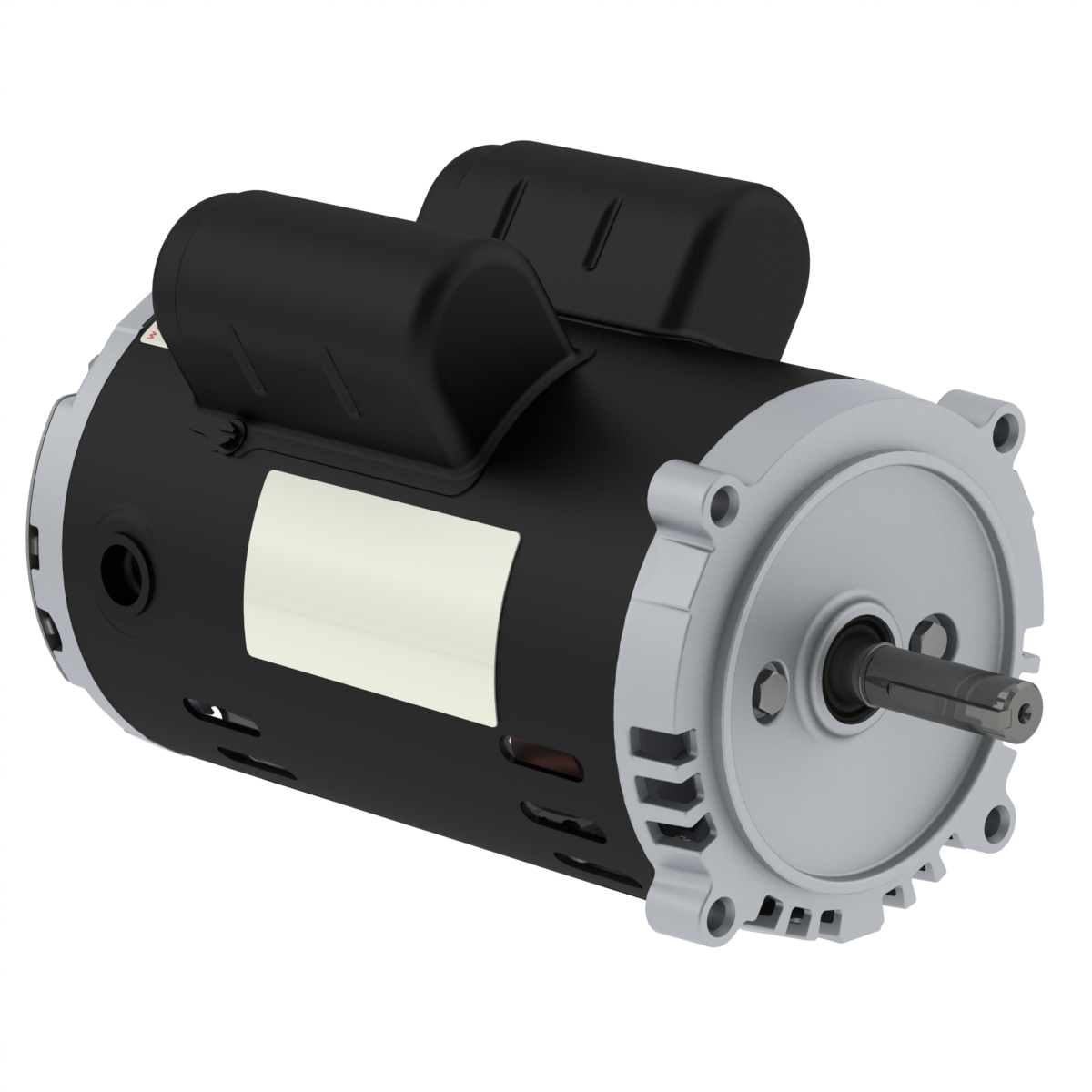

WEG .3336OT1BOW56CFL-S 14277638 General Purpose Motor, ODP RolLED Steel W56C Frame, 0.33 HP, 3510 RPM, 115/208-230V, Footless, Auto Overload Protector
3600 rpm
0.33 hp
56CFL
Get it by Thursday, Apr 2
€360.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 300% |
| Cable Press Material | Sem |
| Composition | Steel |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 70.5% |
| Efficiency @ 50% | 56% |
| Efficiency @ 75% | 64% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | W56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hp | 1/3 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L.r. Amperes | 14.1-15.6/28.2A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time (hot) | 15 sec. |
| Locked Rotor Torque | 280% |
| Moment Of Inertia (j) | 0.0254 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Mounting | F-1 , Footless |
| No Load Amps | 0.431-0.5/1A |
| No. Of Poles | 2 |
| Noise Level | 56 dBA |
| Output Rating | 0.33 hp , 1/3 hp |
| Overload Protection | Automatic |
| Phase | 1 |
| Power Factor 50% | 0.97 |
| Power Factor 75% | 0.97 |
| Power Factor_100% | 0.97 |
| Rated Current | 1.6-1.77/3.2A |
| Rated Speed | 3510 RPM |
| Rated Torque | 0.494 lbs.-ft. |
| Rated Voltage | 115/208-230V |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.35 |
| Shaft Material | Carbon Steel |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Phase | Hp | Service Factor | Frame | Rpm | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

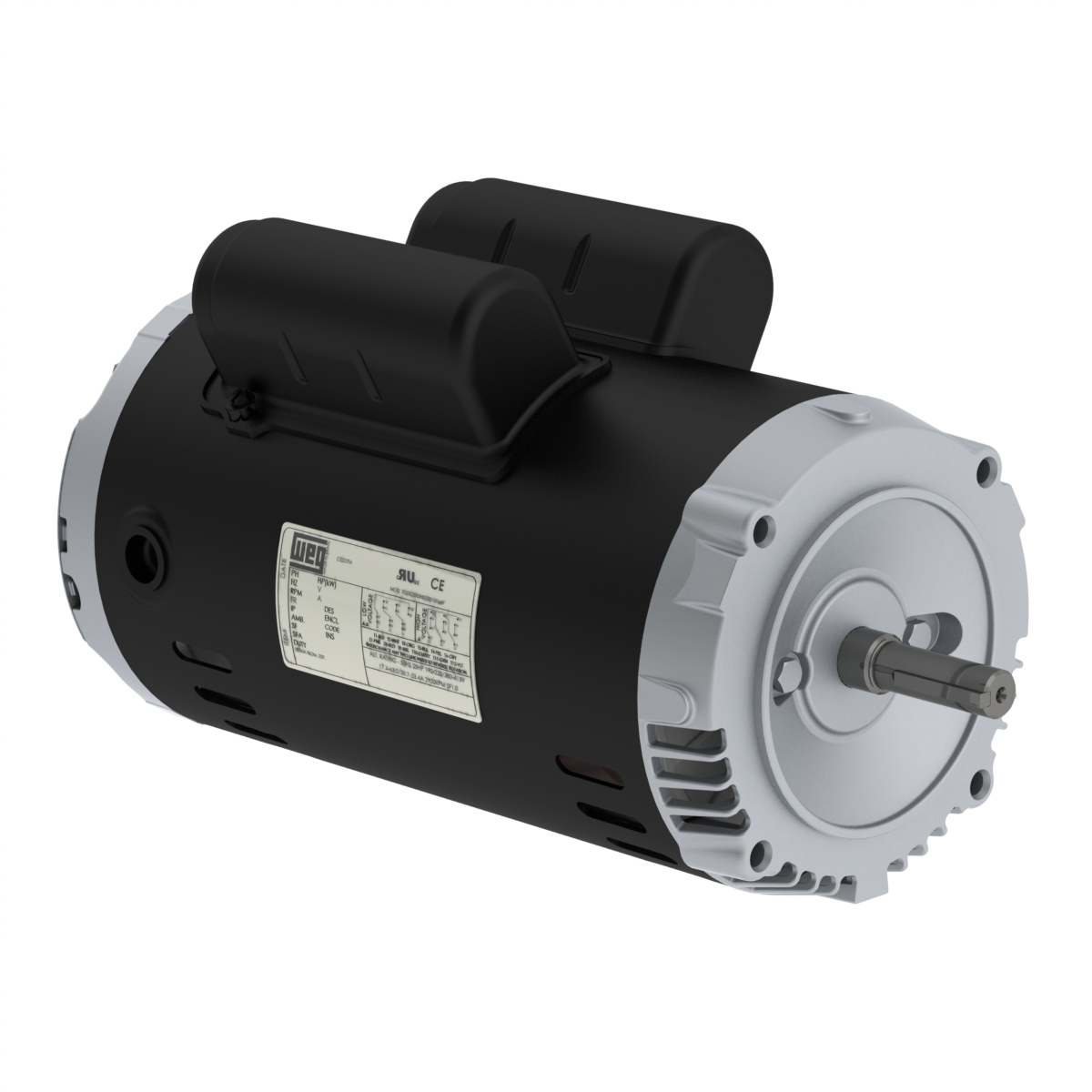

00118OT1B56CFL-S | 115/208-230V AC | 1 | 1 hp | 1.15 | 56C | 1700-1800 RPM | 4 | 1800 RPM | €535.69 | |
|
00336OT1B56CFL-S | 115/208-230V AC | 1 | 3 hp | 1.15 | 56C | 3400-3600 RPM | 2 | 3600 RPM | €711.08 | |
|
00156OT1B56CFL-S | 115/208-230V AC | 1 | 1 1/2 hp | 1.15 | 56C | 3400-3600 RPM | 2 | 3600 RPM | €502.29 | |
|
.3336OT1BW56CFL-S | 115/208-230V AC | 1 | 1/3 hp | 1.35 | W56C | 3400-3600 RPM | 2 | 3600 RPM | €340.03 | |
|
.7518OT1B56CFL-S | 115/208-230V AC | 1 | 3/4 hp | 1.25 | 56C | 1700-1800 RPM | 4 | 1800 RPM | €495.13 | |
|
.2518OT1BW56CFL-S | 115/208-230V AC | 1 | 1/4 hp | 1.35 | W56C | 1700-1800 RPM | 4 | 1800 RPM | €320.93 | |
 |

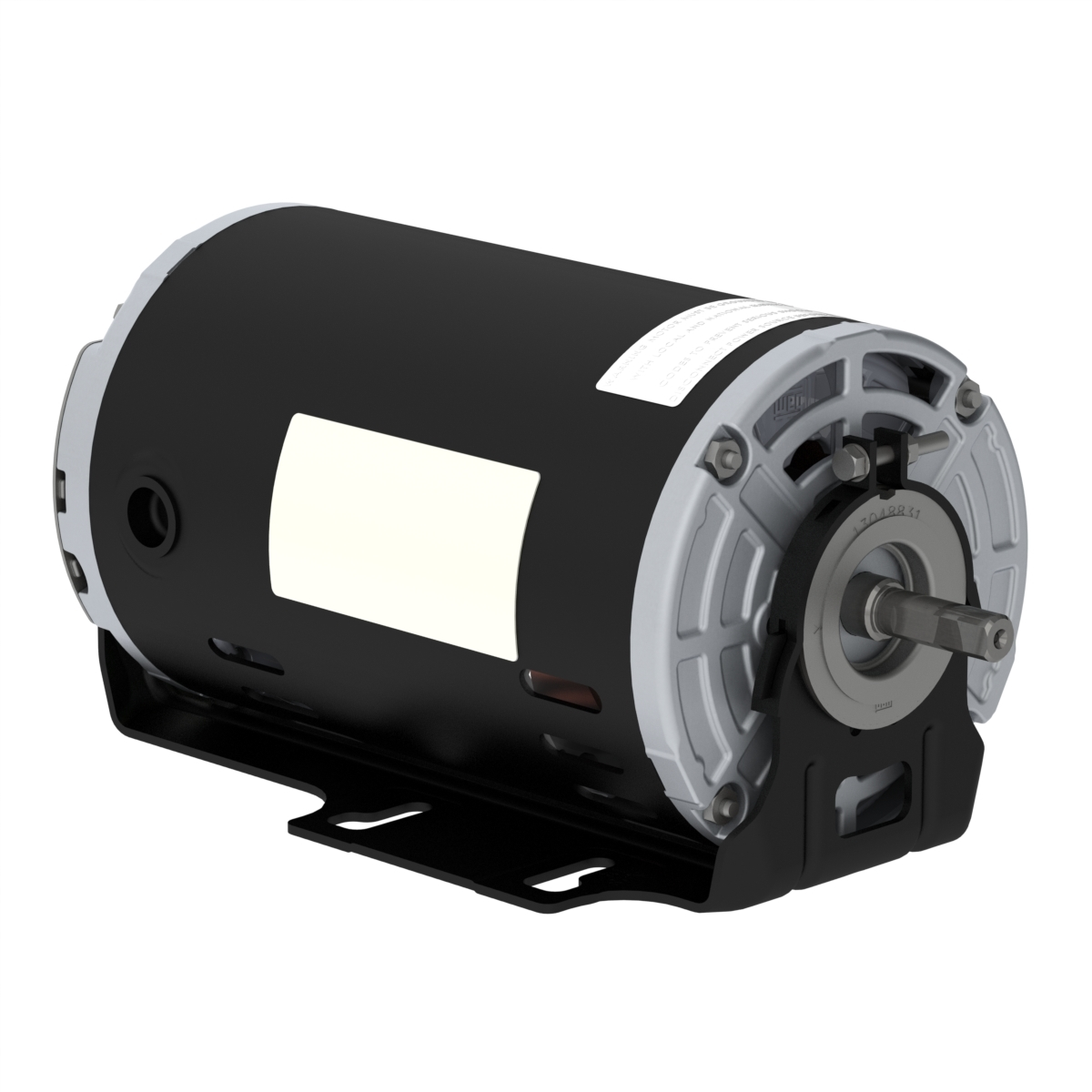

.2518OS1BSPRBO48Z-S | 115/208-230V AC | 1 | 1/4 hp | 1.35 | 48Z | 1700-1800 RPM | 4 | 1800 RPM | €326.90 |
