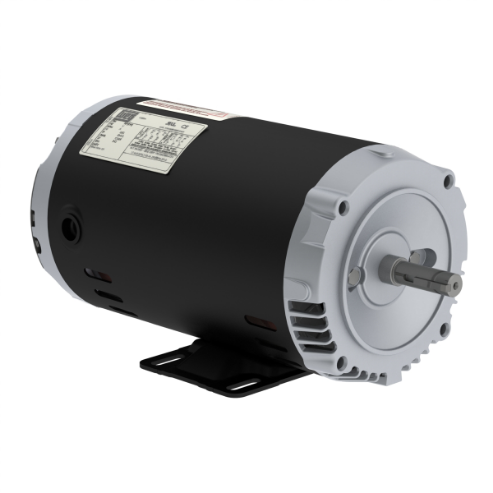

WEG .3312OT3E56C-S 12809008 General Purpose Motor, ODP RolLED Steel 56C Frame, 0.33 HP, 955 RPM, 415 V
1200 rpm
0.33 hp
56C
Get it by Monday, Aug 24
€430.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 0.774A , 1.54-1.4/0.698A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 280% |
| Cold Locked Rotor Time | 55 sec. , 63 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| De Bearing Seal | No |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 42% |
| Efficiency @ 1 % | 63% |
| Efficiency @ 75 % | 53% |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 35 sec. |
| Hp | 1/3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 3.41A , 7.72-6.98/3.49A |
| Locked Rotor Time(hot) | 31 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 4.4x(Code J) , 5.0X(Code K) |
| Moment Of Inertia | 0.071 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1160 RPM |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 1.03-1.2/0.6A |
| No. Of Poles | 6 |
| Noise Level | 50 dBA |
| Output | 1/3 hp |
| Output Rating | 1/3 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor @ 1 % | 71.4 |
| Power Factor @ 50 % | 59.5 |
| Power Factor @ 75 % | 66 |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.35 , 1.35 (1 @ 208V) |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.33% |
| Speed | 1100-1200 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Torque | 1.49 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V AC , 230/460V , 415V |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Model | Phase | Frequency | Service Factor | Hp | Full Load Amps | Frame | Frame Material | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OT3H254TC | 3 | 60 Hz | 1.15 | 15 hp | 14.9A | 254TC | Cast Iron | - | €1,909.02 | |
| 02018OT3H256TC | 3 | 60 Hz | 1.15 | 20 hp | 19.8A | 256TC | Cast Iron | - | €2,237.16 | |
| 02518OT3H284TC | 3 | 60 Hz | 1.15 | 25 hp | 23.9A | 284TC | Cast Iron | - | €3,659.77 | |
| 03018OT3H286TC | 3 | 60 Hz | 1.15 | 30 hp | 28.3A | 286TC | Cast Iron | - | €3,744.49 | |
| 20018OT3G445T | 3 | 60 Hz | 1.15 | 200 hp | 229A | 445T | Cast Iron | - | €17,928.59 | |
| 15036OT3G405TS | 3 | 60 Hz | 1.15 | 150 hp | 162A | 405TS | Cast Iron | - | €15,787.11 | |
| 20036OT3G444TS | 3 | 60 Hz | 1.15 | 200 hp | 228A | 444TS | Cast Iron | - | €20,850.80 |
