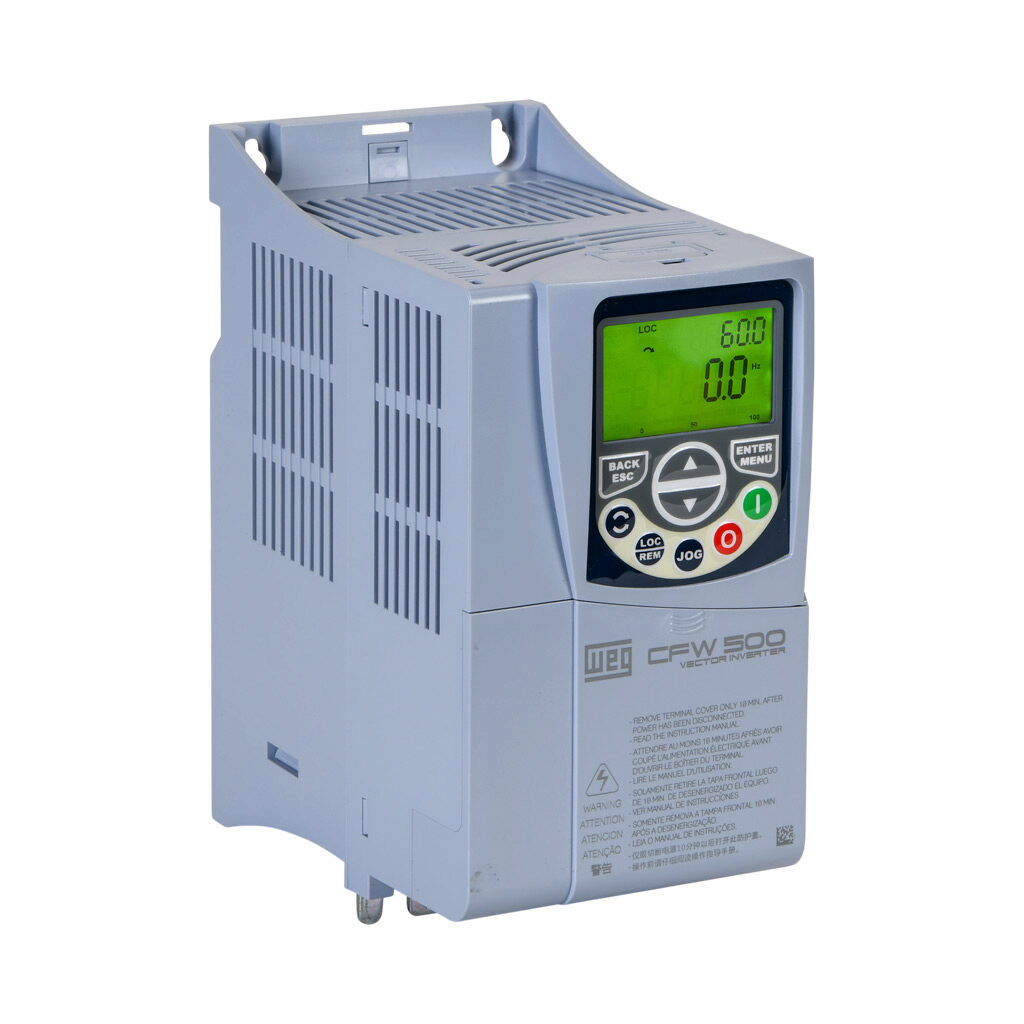

WEG 15574655 AC High-Performance Drive, Enclosed, 230 VAC, 2Hp With 3-Phase And 1-Phase Input, B Frame
Get it by Wednesday, Apr 1
€750.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Drive |
| Amps Rating | 7.3A |
| Analog Input Signal Type | Current/Voltage |
| Analog Output Signal Type | Current/Voltage |
| Carrier Frequency Range | 2.5-15 kHz |
| Connection Type | RS-485 |
| Connector Type | Screw Terminal |
| Controller Type | High Performance |
| Discrete Input Type | Sinking, Sourcing |
| Discrete Output Type | Relay |
| Dynamic Braking | Integrated Dynamic Braking |
| Enclosure Type | Enclosed |
| For Use With | 3-Phase induction and permanent magnet AC Motors |
| Frame Size | B |
| Fuse Type | User Supplied External Fuse |
| Horsepower By Input Phase | 2 hp |
| Input Current Signal Range | 0-20/4-20 mA |
| Input Resolution | 10 bits |
| Input Signal | 4-20 mA |
| Input Signal Type | Voltage or Potentiometer |
| Input Voltage Signal Range | 0-10V DC |
| Internally Bypassed | No |
| Ip Rating | IP20 |
| Load Current | 0.15/0.5A |
| Mfr. Part No. | CFW500B07P3B2DB20G2 |
| Mounting | Din Rail, Panel, Wall |
| Mounting Size | 35 mm |
| No. Of Analog Input Channels | 1 |
| No. Of Discrete Output Points | 2 |
| No. Of Input Channels | 1 |
| No. Of Input Phases | 1, 3 |
| No. Of Non-isolated Discrete Input Commons | 1 |
| No. Of Non-isolated Discrete Output Commons | 1 |
| No. Of Output Channels | 1 |
| No. Of Output Phases | 3 |
| No. Of Points Per Analog Output Common | 1 |
| No. Of Points Per Discrete Input Common | 1 |
| Nominal Discrete Input Voltage | 24V DC |
| Nominal Discrete Output Voltage | 240V AC/24V DC |
| Nominal Drive Input Voltage | 230V AC |
| Nominal Drive Output Voltage | 230V AC |
| Number Of Analog Output Channels | 1 |
| Number Of Discrete Input Points | 4 |
| Number Of Non-isolated Analog Input Commons | 1 |
| Number Of Non-isolated Analog Output Commons | 1 |
| Number Of Points Per Analog Input Common | 1 |
| Number Of Points Per Discrete Output Common | 1 |
| Number Of Terminal Pins | 3 |
| Output Current Signal Range | 0-20/4-20 mA |
| Output Frequency Range | 0.1-500 Hz |
| Output Resolution | 10 bits |
| Output Type | PWM |
| Output Voltage Signal Range | 0-10V DC |
| Phase | 1, 3 |
| Port Speed(s) | Up to 38.4K baud |
| Product Datasheet | weg-14938005.pdf |
| Reverse Capability | Built-In |
| Sccr Rating | 65 kA |
| Series | CFW500 Series |
| Temp. Rating | 0°C to 50°C |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Country of Origin | BR |
