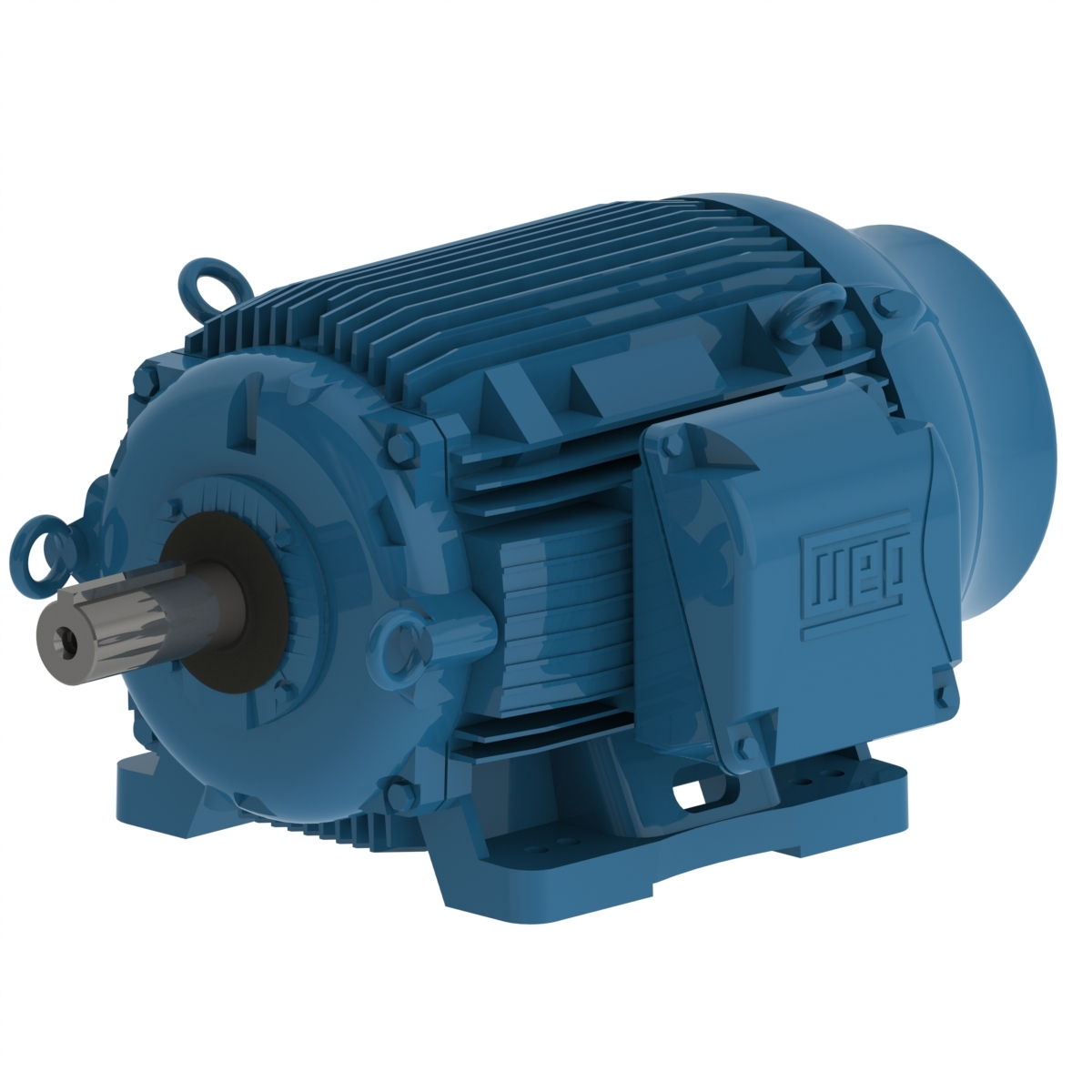

WEG 06018ET3ECT364T-W22 11976409 Cooling Tower Motor, 60 Hp, 1780 Rpm, 208-230/460V, V
1800 rpm
60 hp
208/230/460V
Get it by Wednesday, Apr 8
5.00% off
€13,501.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Tower Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 40°C |
| Base Type | Rigid Base |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Breakdown Torque | 240% |
| Cc Number | CC029A |
| Color | Blue |
| Conduit Box Location | Exterior |
| Conduit Box Position | F2 |
| Connection Cables Quantity | 12 |
| Dia. | 17 15/16" |
| Diameter | 17 15/16" |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 95% |
| Efficiency @ 50% | 94.1% |
| Efficiency @ 75% | 94.5% |
| Efficiency Group | Premium |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Features | Durable Synthetic Enamel Alkyd Resin Paint Resists Corrosion |
| Finish | Painted |
| Flange | Without |
| Frame | 364/5T |
| Frame Material | Cast Iron |
| Frame Size | 364/5T |
| Frequency | 60 Hz |
| Full Load Amps | 143/71.6A , 68.3/137-151A |
| Grounding Lugs | Double |
| Horsepower | 60 hp |
| Hp | 60 hp |
| Impregnation Method | Constant Resin Flow |
| Includes | Space Heater |
| Insulation Class | Class F |
| Joints Seal | Permatex |
| L.r. Amperes | 444/888A |
| Length | 34 1/4" |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time (hot) | 15 sec. |
| Locked Rotor Torque | 220% |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Type | NPT |
| Moment Of Inertia (j) | 22.4 lbs.-sq. ft. |
| Motor Application | Cooling Tower |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting | F-2 |
| Mounting Type | Foot Mounted |
| No Load Amps | 28/56A |
| No. Of Speeds | 1 |
| Noise | 67 dBA |
| Noise Level | 67 dBA |
| Nominal Efficiency | 95% |
| Number Of Poles | 4 |
| Output Wattage | 45000 W |
| Output Watts | 45000 W |
| Overload Protection | No |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.71 |
| Power Factor 75% | 0.8 |
| Power Factor_100% | 0.83 |
| Product Datasheet | weg-06018et3ect364t-w22.pdf |
| Rated Current | 71.6/143A |
| Rated Speed | 1780 RPM |
| Removable Base | Yes |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Dia. | 2 3/8" |
| Shaft Length | 5 7/8" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Type | Keyed |
| Slip | 1.11% |
| Space Heater Voltage | 110-127/200-240V |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Thermal Protection | None |
| Torque | 175 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 230/460/380V , 230/460V AC |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 416.7 |
| Ship height (cm) | 70.4 |
| Ship length (cm) | 87 |
| Ship width (cm) | 72.5 |
| HS code | 8501528040 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Rpm | Frame | Hp | Enclosure | Conduit Box Position | Service Factor | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3PCT145TF1-W2 | 200V AC | 1755 RPM | 143/5T | 1 1/2 hp | IC411 | F1 | 1.25 | 2.76A | €1,266.85 | |
| 00158ET3ECT145TF1-W2 | 230/460V AC | 1755 RPM | 143/5T | 1 1/2 hp | IC411 | F1 | 1.25 | 1.2/2.4A | €1,247.85 | |
| 00218ET3PCT145TF1-W2 | 200V AC | 1750 RPM | 143/5T | 2 hp | IC411 | F1 | 1.25 | 3.75A | €1,327.61 | |
| 00218ET3ECT145TF1-W2 | 230/460V AC | 1750 RPM | 143/5T | 2 hp | IC411 | F1 | 1.25 | 1.63/3.26A | €1,327.61 | |
| 00318ET3PCT182TF1-W2 | 200V AC | 1760 RPM | 182T | 3 hp | IC411 | F1 | 1.25 | 4.6A | €1,411.50 | |
| 00318ET3ECT182TF1-W2 | 230/460V AC | 1760 RPM | 182T | 3 hp | IC411 | F1 | 1.25 | 2/4A | €1,440.29 | |
| 00518ET3PCT184TF1-W2 | 200V AC | 1700-1800 RPM | 182/4T | 5 hp | IC411 | F1 | 1.25 | 6.9A | €1,576.82 |
