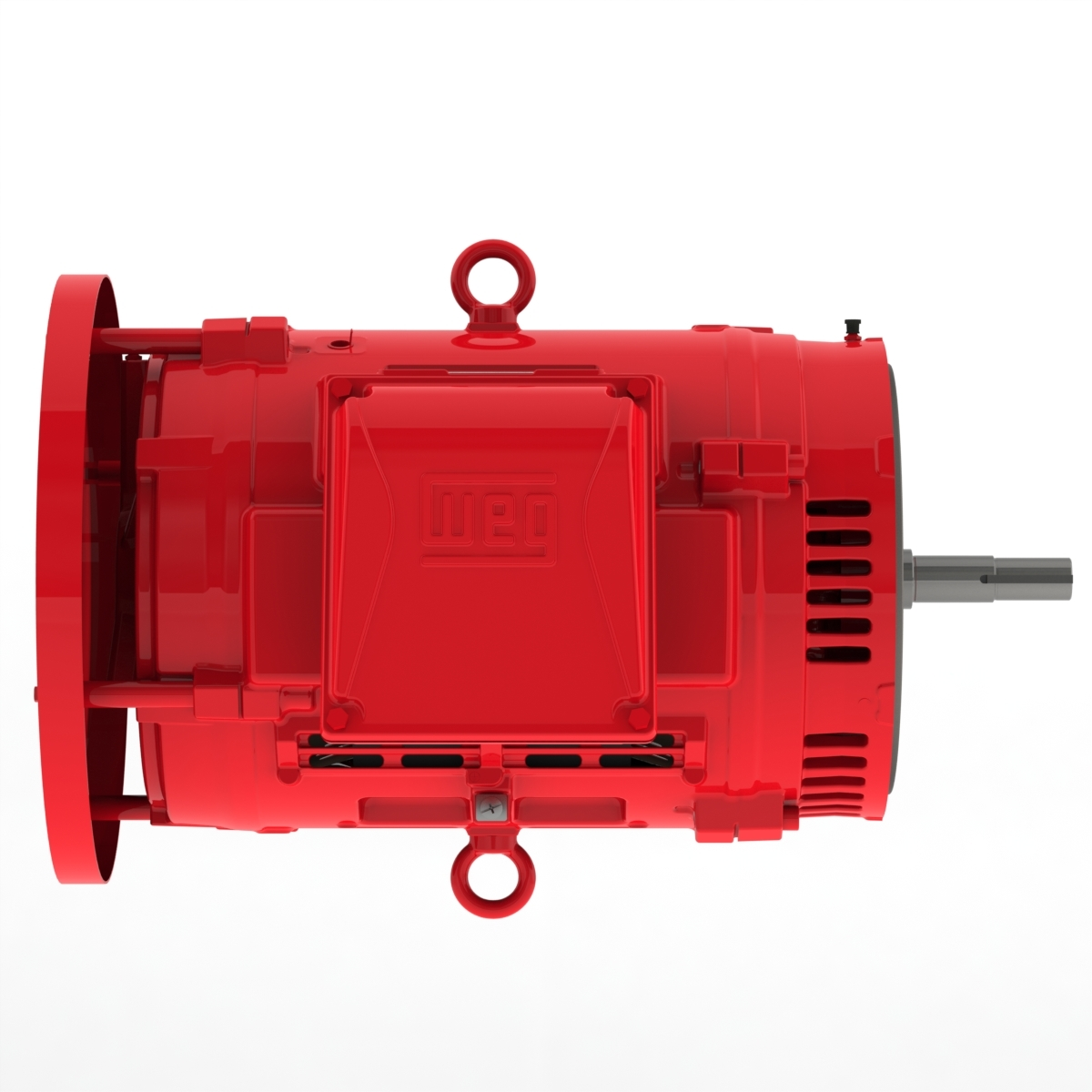

WEG 05018OP3EFP326JMV-W4 14832512 Pump Motor, 50 HP, 1800 RPM, 208-230/460V, ODP, 324/6JM, Footless, Fire Pump
Get it by Friday, Aug 21
€5,078.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 59.5A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 210% |
| Cold Locked Rotor Time | 23 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | With |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Frame Material | Cast Iron |
| Frame Size | 326JM |
| Frequency | 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Item | 478227 |
| L. R. Amps | 375A |
| Locked Rotor Time(hot) | 13 sec. |
| Locked Rotor Torque | 190% |
| Lrc | 6.3x(Code G) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 5.98 lbs.-sq. ft. |
| Nde Bearing Seal | No |
| No Load Amps | 21A |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-05018op3efp326jmv-w4.pdf |
| Rated Speed | 1470 RPM |
| Rated Torque | 143 lbs.-ft. |
| Rated Voltage | 380V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Tropicalized Painting | Without |
Shipping Info:
| Ship weight (kg) | 213.3 |
