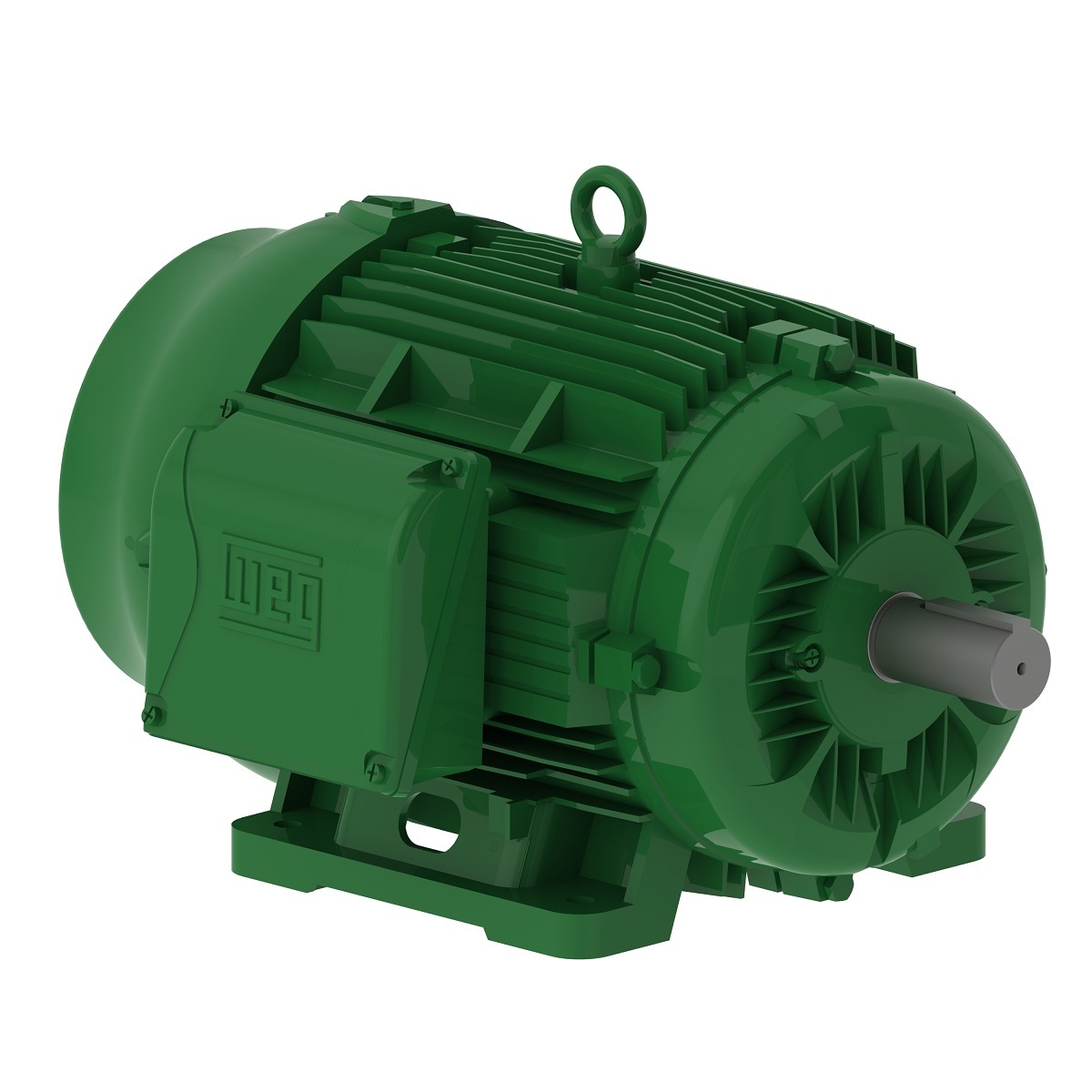

WEG 03012EG3E326T-W22 11792438 General Purpose Motor, TEFC Cast Iron 324/6T Frame, 30 HP, 985 RPM, 415 V
30 hp
326T
Get it by Tuesday, Aug 25
5.00% off
€10,584.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 104°F |
| Amps | 36.7/73.4A |
| Balancing Method | 1/2 Key |
| Base Type | Rigid Base |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Break Down Torque | 300% |
| Cable Press Material | Sem |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 45 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | A |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency | 94.1% |
| Efficiency 50% | 92.4% |
| Efficiency 75% | 93.6% |
| Efficiency @ 100% | 94.1% |
| Efficiency Group | Super Premium |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 324/6T , 326T |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 36.7/73.4-81.2A , 73.4/36.7A |
| Full Load Amps @ 50 Hz | 41.1/41.6/43.5A |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hp | 30 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 257/514A , 271A |
| Locked Rotor Time (cold) | 48 sec. |
| Locked Rotor Time(hot) | 25 sec. , 27 sec. |
| Locked Rotor Torque | 260% |
| Lrc | 6.6x(Code H) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 12.9 lbs.-sq. ft. |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1185 RPM |
| Nde Bearing Seal | V Ring |
| Nema Design | A |
| No Load Amps | 18.5/37A |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Noise | 62 dBA |
| Noise Level | 62 dBA |
| Output Rating | 22 kW |
| Overall Length | 31 1/8" |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.8 |
| Power Factor 50% | 0.6 |
| Power Factor 75% | 0.73 |
| Product Datasheet | weg-03012eg3e326t-w22.pdf |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Dia. | 2 1/8" |
| Shaft Length | 5 1/4" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 1.25% |
| Speed | 1101-1200 RPM , 1185 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 131 lbs.-ft. , 160 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/380/460V , 415V |
Shipping Info:
| Ship weight (kg) | 276.3 |
| Ship height (cm) | 49.28 |
| Ship length (cm) | 79.06 |
| Ship width (cm) | 63.25 |
| HS code | 8501528040 |
| Country of Origin | BR |
Documentation:
Product Variants
| Model | Voltage | Hp | Frequency | Full Load Amps | Service Factor | Frame | Ambient Temp. | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00136EG3E143T-W22 | 230/460V AC | 1 hp | 60 Hz | 2.7/1.35A | 1.25 | 143T | 40°C | S1 | €985.80 | |
| 00156EG3E143T-W22 | 230/460V AC | 1 1/2 hp | 60 Hz | 3.84/1.92A | 1.25 | 143T | 40°C | S1 | €932.66 | |
| 00158EG3EL145T-W22 | 230/460V AC | 1 1/2 hp | 60 Hz | 3.86/1.93A | 1.25 | 145T | 40°C | S1 | €962.82 | |
| 00236EG3E145T-W22 | 415V | 2 hp | 60 Hz | 5.1/2.6A | 1.25 | 145T | 104°F | S1 | €984.42 | |
| 00218EG3EL145T-W22 | 415V | 2 hp | 60 Hz | 5.26/2.63A | 1.25 | 145T | 104°F | S1 | €985.20 | |
| 00336EG3E182T-W22 | 415V | 3 hp | 60 Hz | 7.3/3.7A | 1.25 | 182T | 104°F | S1 | €1,268.41 | |
| 00536EG3E184T-W22 | 415V | 5 hp | 60 Hz | 12/5.99A | 1.25 | 184T | 104°F | S1 | €1,357.90 |
