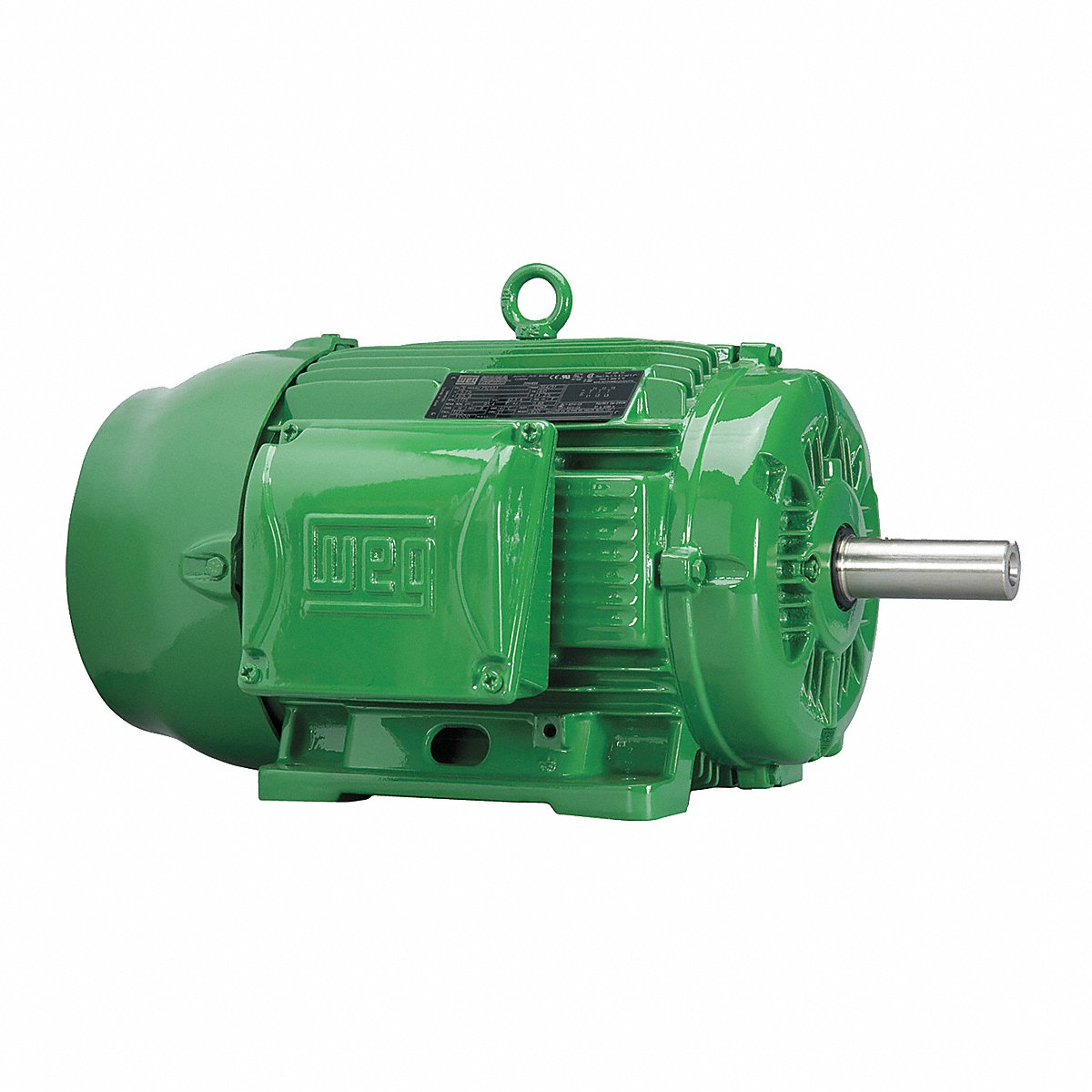

WEG 00536EG3E184T-W22 Motor, 3 Phase, 5 Hp, Rpm 3505 184t | AC8BEX 39J103

WEG 00536EG3E184T-W22 11792016 General Purpose Motor, TEFC Cast Iron 182/4T Frame, 5 HP, 2905 RPM, 415 V

Item: AC8BEXModel: 00536EG3E184T-W22Cross Ref: 39J103 / 11792016
Check Availability
In Stock

Get it by Tuesday, Feb 24

€1,357.90
5.00% off
€1,290.01 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 104°F
Base Type Rigid Base
Bearing Type Ball
Cc Number CC029A
Duty Cycle S1
Efficiency 90.2%
Efficiency 50%
Efficiency Group Super Premium
Enclosure Type Tefc
Frame 184T
Frame Material Cast Iron
Frequency 60 Hz
Full Load Amps 12/5.99A
Full Load Amps @ 50hz 6.54/6.7/7.06A
Hp 5 hp
Hp @ 50hz 5 hp
Hz 60 Hz
Ins. Class Class F
Insulation Class Class F
Length Less Shaft 13 1/8"
Manufacturers Warranty Length 3 yrs.
Max. Ambient Temp. 40°C
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Cast Iron
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.25
Motor Shaft Design Keyed
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 3505 RPM
Nema Design None
No. Of Speeds 1
Noise Level 66 dBA
Nominal Efficiency 90.2%
Number Of Poles 2
Overall Length 15 7/8"
Phase 3
Product Datasheet weg-00536eg3e184t-w22.pdf
Rotation CW/CCW
Rpm Range Over 3600 RPM
Service Factor 1.25
Shaft Dia. 1 1/8"
Shaft Length 2 3/4"
Shaft Material Carbon Steel
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Thermal Protection None
Usable @ 200v No
Usable @ 208v Yes
Warranty 3 yrs.

Shipping Info:

Ship weight (kg) 44.1
Ship height (cm)30.99
Ship length (cm)40.28
Ship width (cm)37.59
HS code8501524000
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpFrequencyFull Load AmpsService FactorNameplate RpmFull Load Amps @ 50hzFramePrice
WEG 00136EG3E143T-W22 Motor, 3 Phase, 1 Hp, Rpm 3485 143t | AC8BEN 39J093 00136EG3E143T-W22230/460V AC1 hp60 Hz2.7/1.35A1.253485 RPM1.46/1.51/1.55A143T€985.80
WEG 00156EG3E143T-W22 Motor, 3 Phase, 1-1/2 Hp, Rpm 3485 143t | AC8BEP 39J095 00156EG3E143T-W22230/460V AC1 1/2 hp60 Hz3.84/1.92A1.253485 RPM2.13/2.16/2.26A143T€932.66
WEG 00158EG3EL145T-W22 Motor, 3 Phase, 1-1/2 Hp, Rpm 1760 145t | AC8BEQ 39J096 00158EG3EL145T-W22230/460V AC1 1/2 hp50/60 Hz3.86/1.93A1.251760 RPM2.13/2.16/2.27A145T€962.82
WEG 00236EG3E145T-W22 Motor, 3 Phase, 2 Hp, Rpm 3490 145t | AC8BER 39J097 00236EG3E145T-W22208-230/380/460V2 hp60 Hz5.1/2.6A1.253490 RPM2.84/2.92/3.05A145T€984.42
WEG 00218EG3EL145T-W22 Motor, 3 Phase, 2 Hp, Rpm 1760 145t | AC8BET 39J098 00218EG3EL145T-W22208-230/380/460V2 hp60 Hz5.26/2.63A1.251760 RPM2.91/3.02/3.1A145T€985.20
WEG 00336EG3E182T-W22 Motor, 3 Phase, 3 Hp, Rpm 3520 182t | AC8BEU 39J099 00336EG3E182T-W22208-230/380/460V3 hp60 Hz7.3/3.7A1.253520 RPM4.04/4.14/4.32A182T€1,268.41
WEG 00518EG3EL184T-W22 Motor, 3 Phase, 5 Hp, Rpm 1755 184t | AC8BEY 39J104 00518EG3EL184T-W22208-230/380/460V5 hp60 Hz12.9/6.5A1.251755 RPM7.22/7.46/7.66A184T€1,215.99
