WEG 02589EP3PCT324V2F1-W Electric Motor, 25/6.3Hp, 60Hz, 900/1800 Rpm | BB7FAA

WEG 02589EP3PCT324V2F1-W 12176619 Electric Motor, 25/6.3Hp, 60Hz, 900/1800 Rpm

Item: BB7FAAModel: 02589EP3PCT324V2F1-WCross Ref: 12176619
Check Availability
In Stock

Get it by Monday, Dec 22

€6,674.09 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Cooling Tower Motor
Ambient Temp. -20°C to +40°C
Bearing Cap Yes
Break-down Torque 260%
Cold Locked Rotor Time 27 sec.
Connection Cables Quantity 6
Drain Automatic, Rubber
Drip Cover Without
Duty Cycle S1
Efficiency @ 100% 91.7%
Efficiency At 1 % 82%
Efficiency At 50 % 67%
Efficiency At 75 % 77%
Enclosure Totally Enclosed Fan Cooled
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Without
Frame 324T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 15 sec.
Impregnation Method Double Impregnation Polyester
Insulation Class Class F
Joints Seal Permatex
L. R. Amps 469A
Locked Rotor Torque 200%
Lrc 6.6X(Code H)
Main Terminal Box Hole Size 2"
Main Terminal Box Hole Type NPT
Moment Of Inertia 7.85 lbs.-sq. ft.
Mounting Foot Mounted
No Load Amps 29.9A
No. Of Poles 4, 8
Noise Level 69 dBA
Output Hp 25 hp
Output Power 18.5 kW
Output Rating 6 1/4 hp, 25 hp
Overload Protector Without Overload Protector
Painting RAL 5009 202E (ISO 12944 - C4)
Phase 3
Power Factor At 1 % 91.7
Power Factor At 50 % 89.5
Power Factor At 75 % 91
Rated Current 71.1A
Rated Speed 1780 RPM
Rated Torque 73.8 lbs.-ft.
Rated Voltage 200V AC
Rotation CW/CCW
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Slip 1.11%
Space Heater Voltage 110-127/200-240V AC
Starting Method Direct On Line
Synchronous Speed 900/1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Complete (200H)
Voltage 200V AC

Shipping Info:

Ship weight (kg) 238.95
Ship height (cm)72.12
Ship length (cm)104.43
Ship width (cm)63
Country of OriginUS

Product Variants

ProductModelVoltageFrameRpmEnclosureHpService FactorDuty CycleNo Load AmpsPrice
WEG 00526EP3QCT254VF1-W2 Electric Motor, 5/1.25Hp, 60Hz, 600/1200 Rpm | BB2HVD 00526EP3QCT254VF1-W2460V254/6T600/1200 RPMTotally Enclosed Fan Cooled5 hp1.15Continuous2.3A€2,819.72

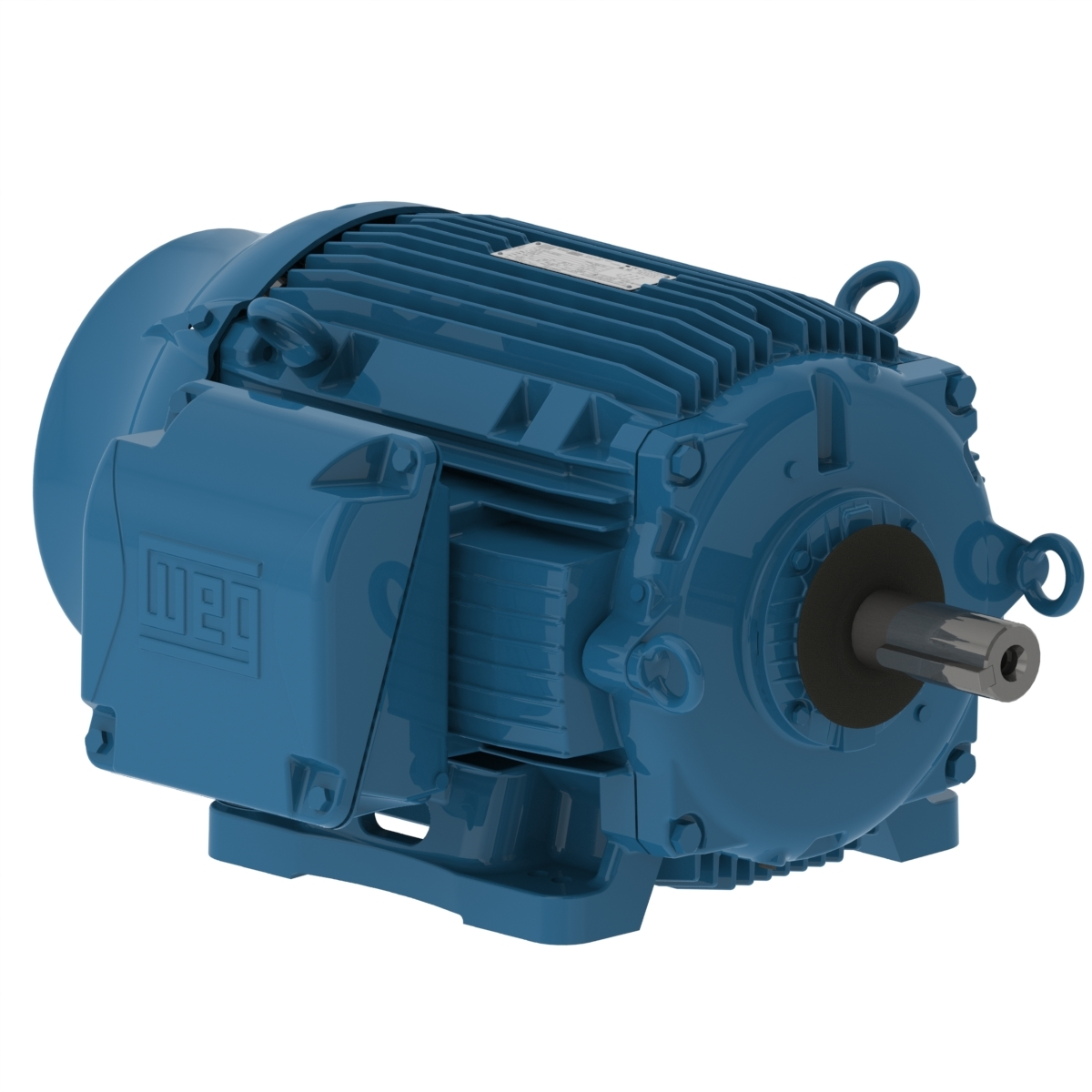

WEG 05089EP3PCT364VF1-W2 Electric Motor, 50/12.5Hp, 60Hz, 900/1800 Rpm | BB2KMU 05089EP3PCT364VF1-W2200V AC364/5T900/1800 RPMTotally Enclosed Fan Cooled-1.15S170.6A€8,754.63
WEG 10089EP3QCT444VF1-W2 Electric Motor, 100/25Hp, 60Hz, 900/1800 Rpm | BB2TXT 10089EP3QCT444VF1-W2460V AC444/5T900/1800 RPMIC411-1.15S139A€19,074.96
WEG 01589EP3HCT254VF1-W2 Electric Motor, 15/3.75Hp, 60Hz, 900/1800 Rpm | BB2XAR 01589EP3HCT254VF1-W2575V254T1800/900 RPMTotally Enclosed Fan Cooled-1.15Continuous6.56A€2,973.31
WEG 00789EP3PCT254V2F1-W Electric Motor, 7.5/1.75Hp, 60Hz, 900/1800 Rpm | BB2XQE 00789EP3PCT254V2F1-W200V AC254T900/1800 RPMTotally Enclosed Fan Cooled-1.15S18.17A€3,246.11
WEG 05089EP3QCT364VF1-W2 Electric Motor, 50/12.5Hp, 60Hz, 900/1800 Rpm | BB3BJG 05089EP3QCT364VF1-W2460V AC364/5T900/1800 RPMTotally Enclosed Fan Cooled-1.15S130.7A€8,621.57
WEG 00789EP3QCT213VF1-W2 Electric Motor, 7.5/1.75Hp, 60Hz, 900/1800 Rpm | BB3FWX 00789EP3QCT213VF1-W2460V AC213T900/1800 RPMTotally Enclosed Fan Cooled-1.15S14.5A€1,932.88
