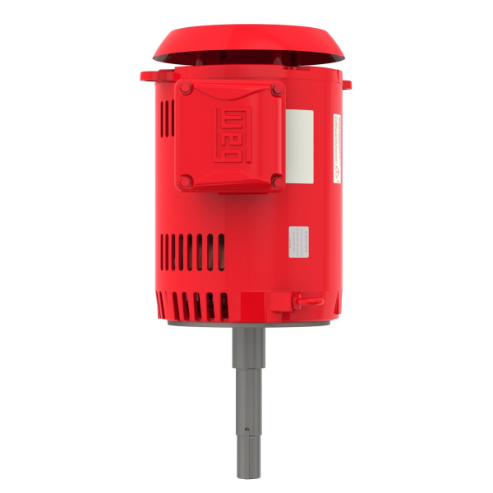

WEG 02036OP3EFP254JPV-S 13550934 Fire Pump Motor, 20 HP, 3600 RPM, 208-230/460 V, ODP, 254JPV Frame, Footless
20 hp
254JPV
208-230/460V
Get it by Monday, Aug 24
€2,418.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 23.7/47.4A , 47.4/23.7A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 240% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 16 sec. |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Design | B |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency 50% | 75% , 88.5% |
| Efficiency 75% | 89.5% |
| Efficiency @ 1 % | 88% |
| Efficiency @ 100% | 90.2% |
| Efficiency @ 75 % | 84% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 254/6JP |
| Frame Material | Rolled Steel |
| Frame Size | 254/6JP |
| Frequency | 60 Hz |
| Grounding Lugs | Superior |
| Hot Locked Rotor Time | 9 sec. |
| Hp | 20 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 142/284A , 284/142A |
| Locked Rotor Time | 9 sec. |
| Locked Rotor Time (cold) | 16 sec. |
| Locked Rotor Torque | 180% |
| Lrc | 6.0X(Code G) |
| Main Terminal Box Hole | 1.732" |
| Main Terminal Box Hole Size | 1.732" |
| Moment Of Inertia | 0.6974 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.6974 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3520 RPM |
| Mounting | Footless , W-6 |
| No Load Amps | 18.2/9.12A , 9.12/18.2A |
| No. Of Poles | 2 |
| Noise Level | 70 dBA |
| Output | 20 hp |
| Output Rating | 20 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL3002 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.88 |
| Power Factor 50% | 0.75 |
| Power Factor 75% | 0.84 |
| Power Factor @ 1 % | 90.2 |
| Power Factor @ 50 % | 88.5 |
| Power Factor @ 75 % | 89.5 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Speed | 3400-3600 RPM , 3520 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 29.8 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 88.2 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Hp | Frequency | Frame | No. Of Poles | Synchronous Speed | No Load Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01518OP3EFP254JPV-S | 230/460V AC | 15 hp | 60 Hz | 254/6JP | 4 | 1800 RPM | 16.9/8.47A | Footless | €2,135.19 | |
| 00718OP3EFP213JPV-S | 230/460V AC | 7 1/2 hp | 60 Hz | 213/5JP | 4 | 1800 RPM | 8.64/4.32A | Footless | €1,226.48 | |
| 00718OP3HFP213JPV-S | 575V AC | 7 1/2 hp | 60 Hz | 213/5JP | 4 | 1800 RPM | 3.46A | Footless | €1,226.48 | |
| 00736OP3EFP184JPV-S | 230/460V AC | 7 1/2 hp | 60 Hz | 182/4JP | 2 | 3600 RPM | 6.99/3.49A | Footless | €1,184.72 | |
| 00736OP3HFP184JPV-S | 575V AC | 7 1/2 hp | 60 Hz | 182/4JP | 2 | 3600 RPM | 2.8A | Footless | €1,184.72 | |
| 00736OP3VFP184JPV-S | 200/400V AC | 7 1/2 hp | 60 Hz | 182/4JP | 2 | 3600 RPM | 8.04/4.02A | Footless | €1,184.72 | |
| 01018OP3EFP215JPV-S | 230/460V AC | 10 hp | 60 Hz | 213/5JP | 4 | 1800 RPM | 11.2/5.62A | Footless | €1,485.39 |
