WEG 02018XT3ER256TC 14407501 Explosion Proof Motor, 20 HP, 1800 RPM, 208/230/460 V, 3 Phase, XPFC, 256TC Frame, Footless
Get it by Thursday, Jul 2
€3,920.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 25/50A , 50/25A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 36 sec. |
| Connection Cables Quantity | 12 |
| Cooling | IC411 |
| Design | B |
| Drain | Sinterized, EXD |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency 50% | 63% , 91.7% |
| Efficiency 75% | 92.4% |
| Efficiency @ 1 % | 81% |
| Efficiency @ 100% | 93% |
| Efficiency @ 75 % | 75% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Frame | 256TC |
| Frame Material | Cast Iron |
| Frame Size | 256TC |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 25/50-55.3A |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 20 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 188/375A , 375/188A |
| Locked Rotor Time (cold) | 36 sec. |
| Locked Rotor Time(hot) | 20 sec. |
| Locked Rotor Torque | 300% |
| Lrc | 7.5X(Code J) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 2.89 lbs.-sq. ft. |
| Moment Of Inertia (j) | 2.89 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | CW, CCW |
| Mounting | W-6 |
| Mounting Type | Footless |
| Nameplate Speed | 1770 RPM |
| No Load Amps | 11.8/23.6A , 23.6/11.8A |
| No. Of Poles | 4 |
| Noise | 69 dBA |
| Noise Level | 69 dBA |
| Output | 20 hp |
| Output Hp | 20 hp |
| Output Rating | 15 kW |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL 5009 202P (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.63 |
| Power Factor 75% | 0.75 |
| Power Factor @ 1 % | 93 |
| Power Factor @ 50 % | 91.7 |
| Power Factor @ 75 % | 92.4 |
| Product Datasheet | weg-02018xt3er256tc.pdf |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Speed | 1770 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 58.5 lbs.-ft. , 59.3 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460/380V , 230/460V AC |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 173.7 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 35.56 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Service Factor | Output Rating | Enclosure Type | Main Terminal Box Hole Size | Connection Cables Quantity | Fan Cover Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
01018XT3ER215TC | 208-230/460/380V | L215TC | 1 | 7.5 kW | Tefc | 1" | 9 | Steel | €2,566.38 | |
 |

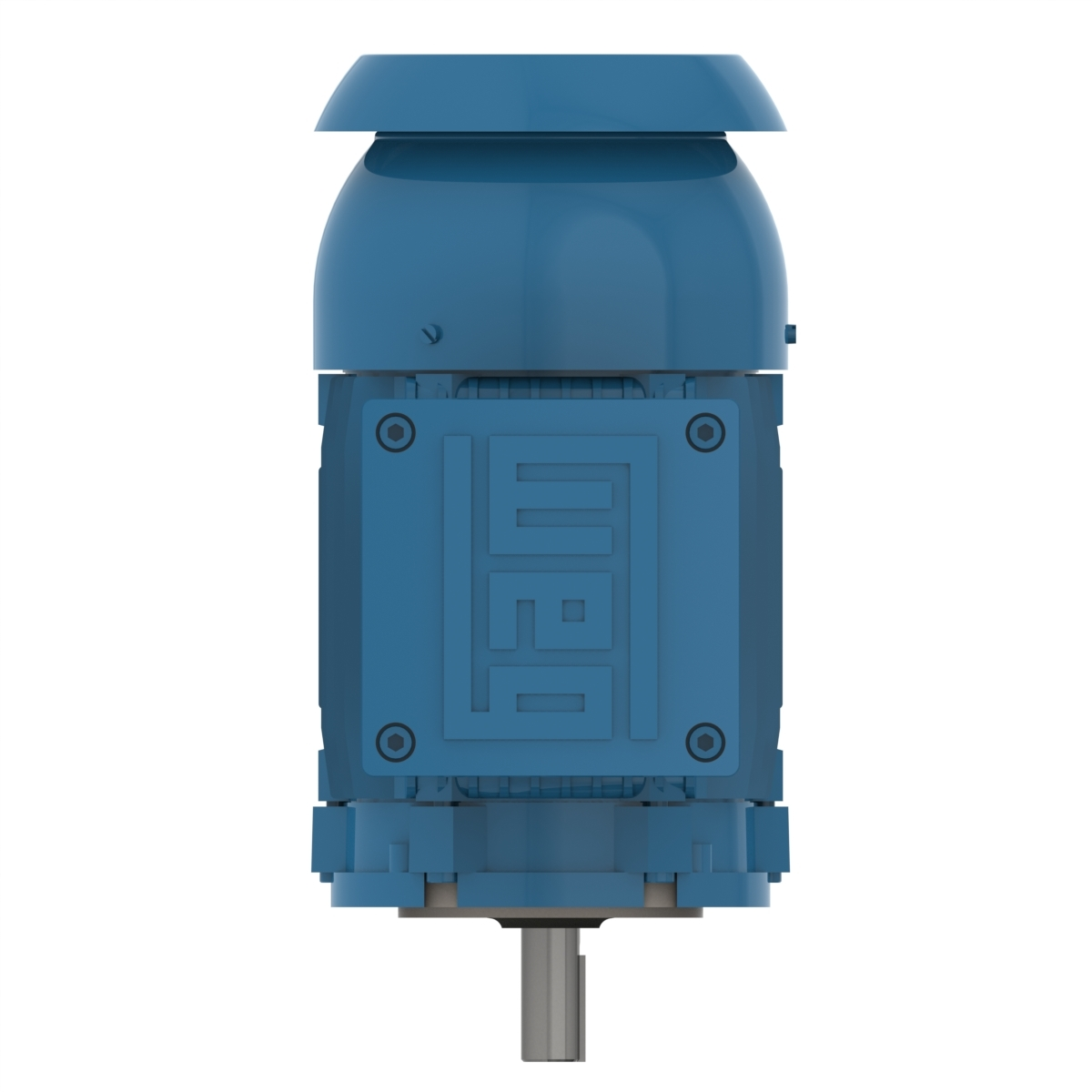

00218XT3ER145TC | 230/460V AC | 143/5TC | 1.15 | 1.5 kW | Tefc | 3/4" | 9 | Steel | €1,393.51 | |
|

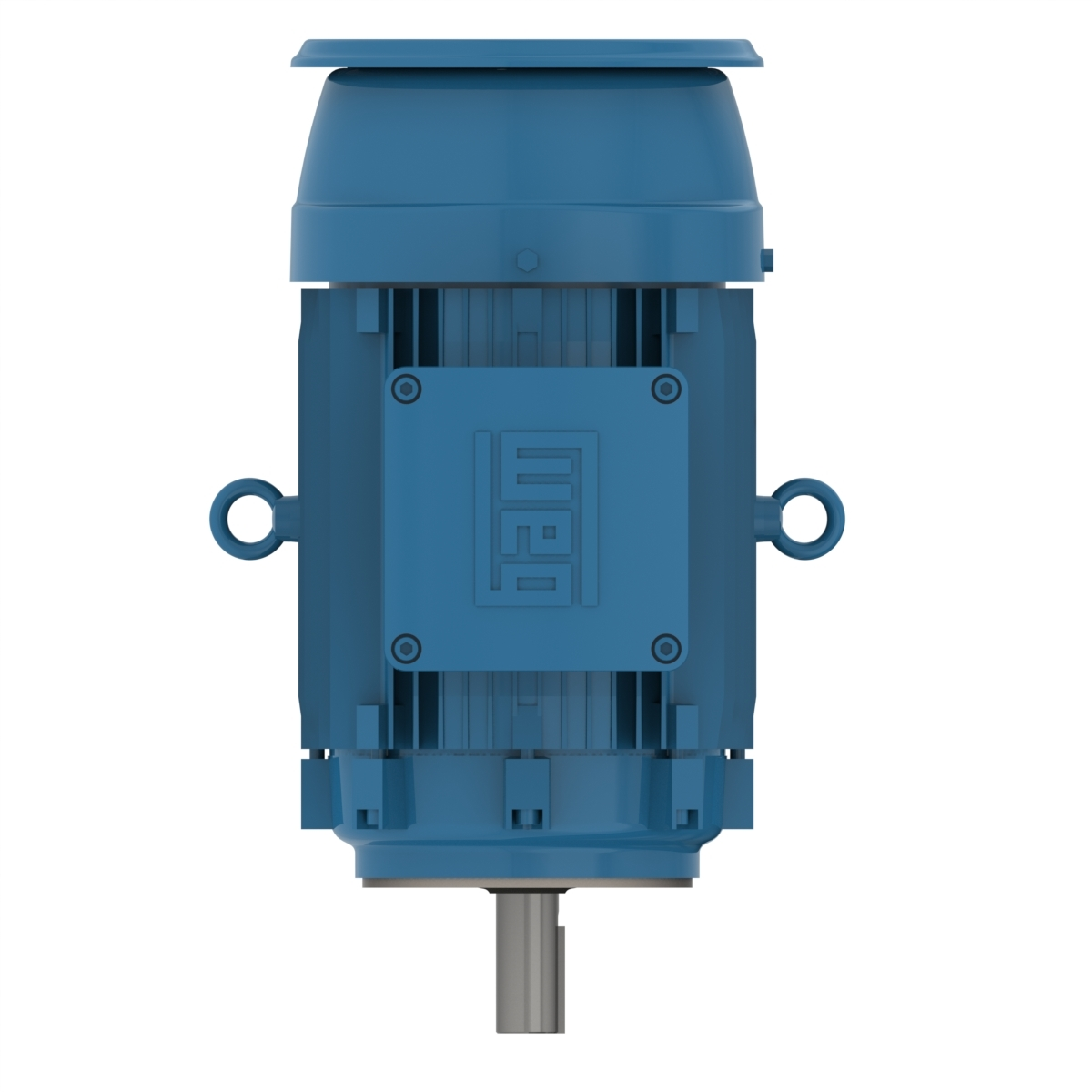

02518XT3ER284TC | 230/460V AC | 284TC | 1.15 | 18.5 kW | Tefc | 1 1/2" | 12 | Cast Iron | €5,017.15 | |
 |

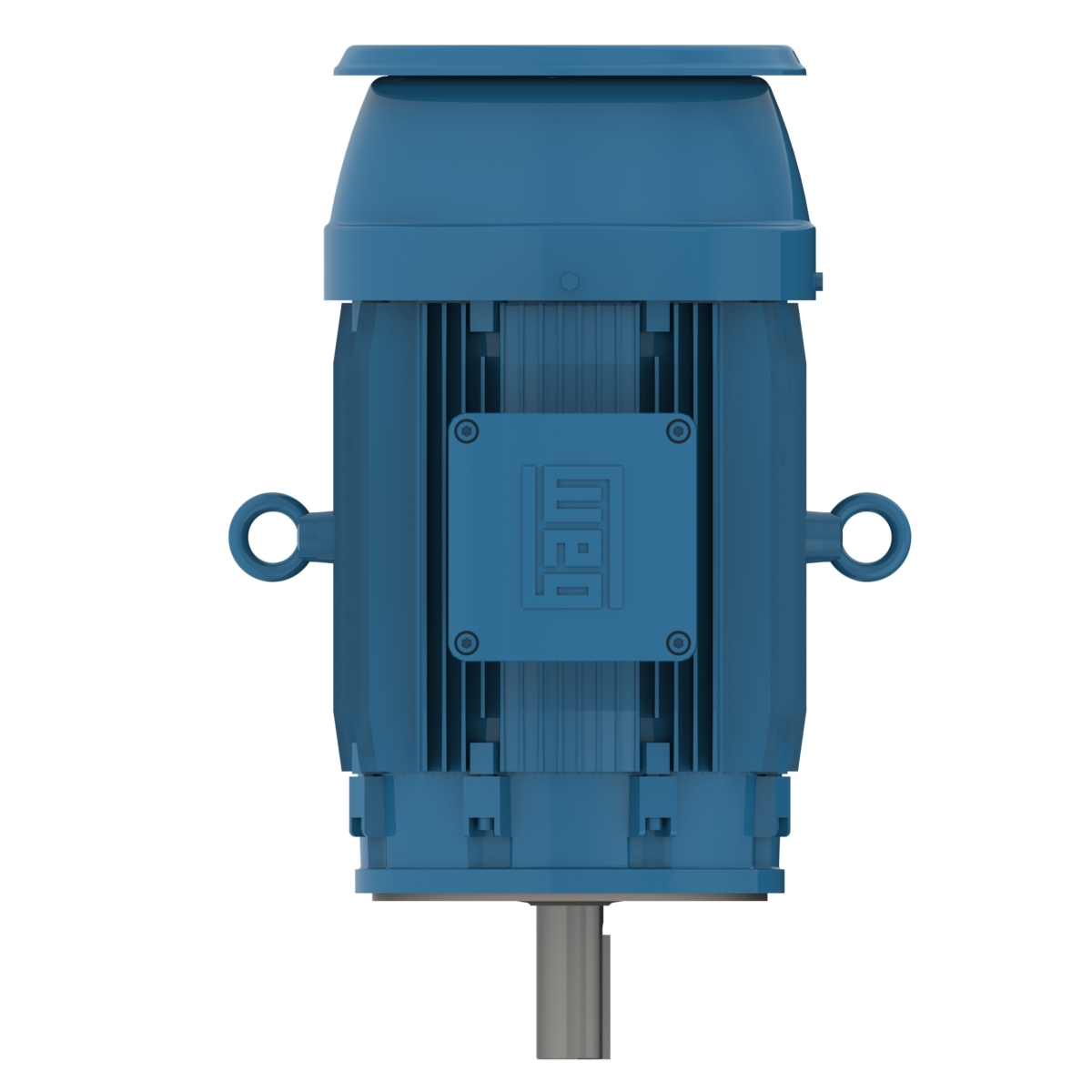

04018XT3ER324TC | 230/460V AC | 324TC | 1.15 | 30 kW | Tefc | 2" | 12 | Cast Iron | €6,904.36 | |
|
00158XT3ER145TC | 230/460V AC | 143/5TC | 1.15 | 1.1 kW | Tefc | 3/4" | 9 | Steel | €1,354.13 | |
 |

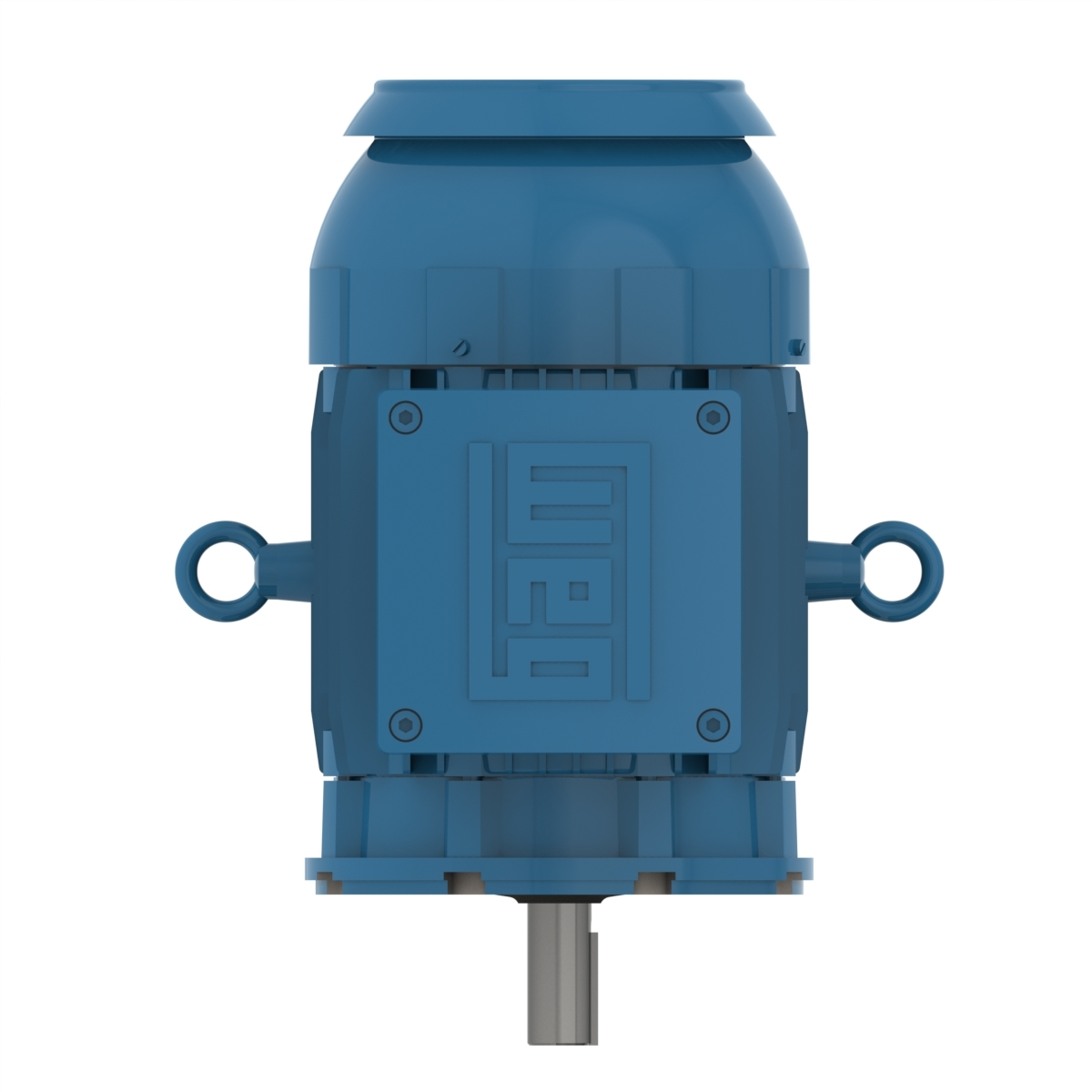

00318XT3ER182TC | 230/460V | 182TC | 1.15 | 2.2 kW | Tefc | 3/4" | 9 | Steel | €1,666.73 | |
|
03018XT3ER286TC | 230/460V AC | 286TC | 1.15 | 22 kW | Tefc | 1 1/2" | 12 | Cast Iron | €5,450.63 |
