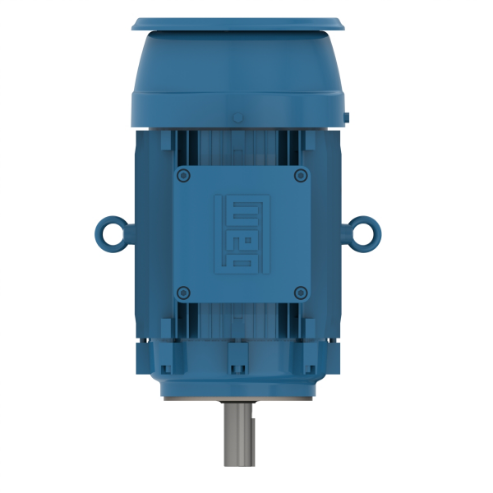

WEG 01518XT3ER254TC 14407394 Explosion Proof Motor, 15 HP, 1800 RPM, 208/230/460 V, 3 Phase, XPFC, 254TC Frame, Footless
Get it by Tuesday, Feb 17
€3,501.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 46 sec. |
| Connection Cables Quantity | 12 |
| Cooling | IC411 |
| Design | B |
| Drain | Sinterized, EXD |
| Drip Cover | With |
| Duty Cycle | Continuous |
| Efficiency | 50% |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 65% |
| Efficiency At 75 % | 75% |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Frame | 254TC |
| Frame Material | Cast Iron |
| Frame Size | 254T |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 26 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 269/134A |
| Locked Rotor Torque | 300% |
| Lrc | 7.3X(Code J) |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 2.31 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Footless |
| Nameplate Rpm | 1770 RPM |
| No Load Amps | 17.2/8.6A |
| No. Of Poles | 4 |
| Noise Level | 69 dBA |
| Output | 15 hp |
| Output Rating | 11 kW |
| Overload Protector | Without Overload Protector |
| Painting | RAL 5009 202P (ISO 12944 - C4) |
| Phase | 3 |
| Power Factor At 1 % | 92.4 |
| Power Factor At 50 % | 90.2 |
| Power Factor At 75 % | 91.7 |
| Product Datasheet | weg-01518xt3er254tc.pdf |
| Rated Current | 36.8/18.4A |
| Rated Torque | 44.5 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V |
| Winding Thermal Protection | Thermostat - 2 wires 1 per phase 155°C |
Shipping Info:
| Ship weight (kg) | 140.4 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 35.56 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Frame | Service Factor | Output Rating | Enclosure Type | Main Terminal Box Hole Size | Connection Cables Quantity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
01018XT3ER215TC | 208-230/460/380V | 1450 RPM | L215TC | 1 | 7.5 kW | Tefc | 1" | 9 | €2,566.38 | |
 |
00218XT3ER145TC | 230/460/380V | 1750 RPM | 143/5TC | 1.15 | 1.5 kW | Tefc | 3/4" | 9 | €1,393.51 | |
 |
02518XT3ER284TC | 230/460/380V | 1770 RPM | 284TC | 1.15 | 18.5 kW | Tefc | 1 1/2" | 12 | €5,017.15 | |
 |
04018XT3ER324TC | 230/460/380V | 1780 RPM | 324TC | 1.15 | 30 kW | Tefc | 2" | 12 | €6,904.36 | |
|
00158XT3ER145TC | 230/460/380V | 1755 RPM | 143/5TC | 1.15 | 1.1 kW | Tefc | 3/4" | 9 | €1,354.13 | |
|
02018XT3ER256TC | 230/460/380V | 1770 RPM | 256TC | 1.15 | 15 kW | Tefc | 1 1/2" | 12 | €3,920.09 | |
 |
00318XT3ER182TC | 230/460V | 1760 RPM | 182TC | 1.15 | 2.2 kW | Tefc | 3/4" | 9 | €1,666.73 |
