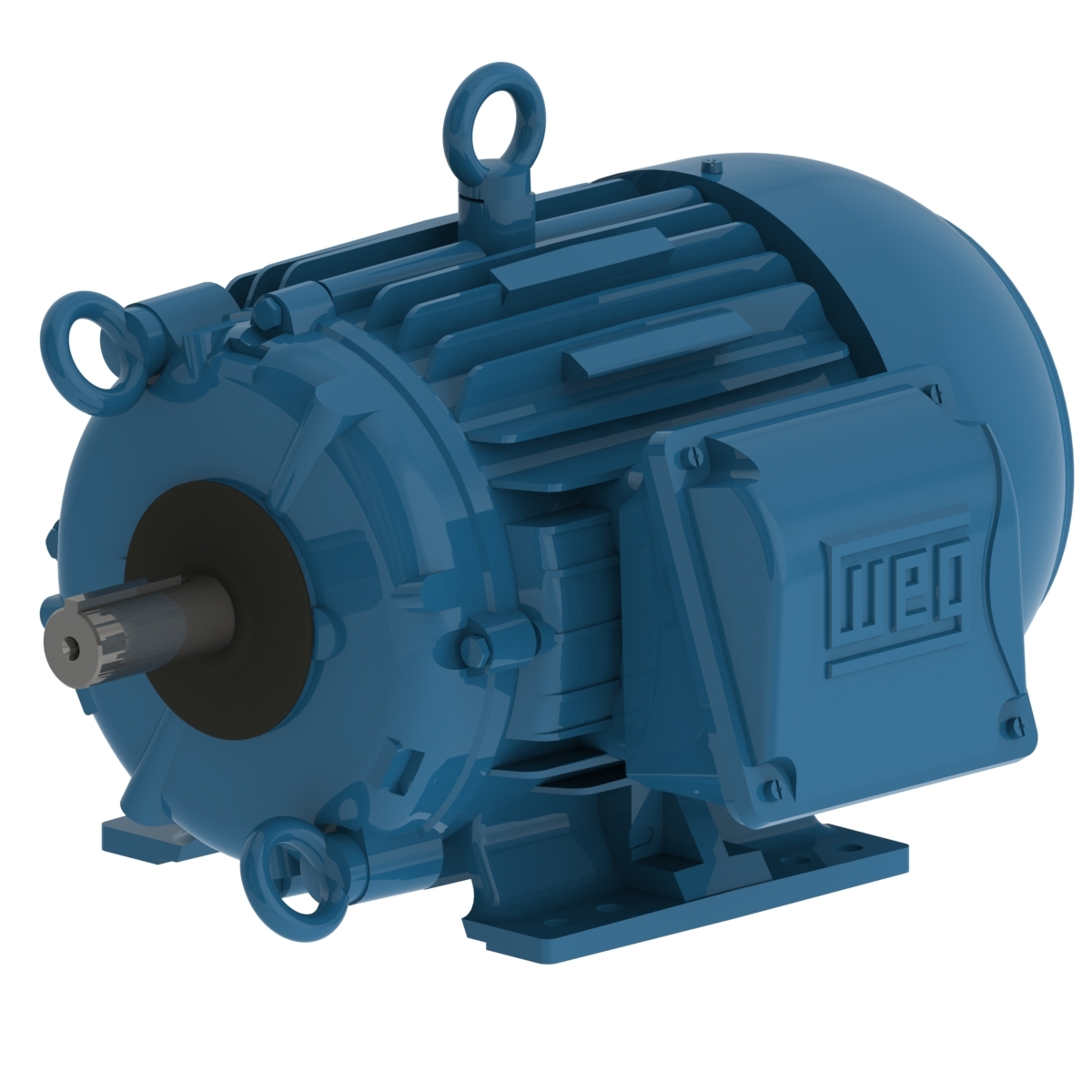

WEG 01518ET3HCT254T-W22 Electric Motor, 15Hp, 60Hz, 1765 Rpm | BB6PWQ

WEG 01518ET3HCT254T-W22 12001689 Cooling Tower Motor, 15 HP, 4 Poles, 254T 3 Phase, 575 V 60 Hz, IC411-TEFC, F-2 Foot Mounted

Item: BB6PWQModel: 01518ET3HCT254T-W22Cross Ref: 12001689
Check Availability
In Stock

Get it by Tuesday, Sep 1

€2,453.09 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Cooling Tower Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 14.4A
Bearing Cap Yes
Break Down Torque 250%
Cold Locked Rotor Time 37 sec.
Connection Cables Quantity 6
De Bearing Seal V Ring
Degree Of Protection IP55
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency 50% 91%
Efficiency 75% 91.7%
Efficiency @ 100% 92.4%
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange Without
Frame 254T
Frame Material Cast Iron
Frame Size 254T
Frequency 60 Hz
Full Load Amps 14.4A
Grade Grade 1010/20
Grounding Lugs Single
Grounding Lugs Type Single
Impregnation Method Double Impregnation Polyester
Insulation Class Class F
Joints Seal Permatex
Locked Rotor Time (cold) 37 sec.
Locked Rotor Torque 229%
Lrc 6.4x(Code G)
Main Terminal Box Hole 1 1/2"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Material Carbon Steel
Moment Of Inertia (j) 2.62 lbs.-sq. ft.
Mounting F-2
Nde Bearing Seal V Ring
No Load Amps 5.84A
No. Of Poles 4
Noise 64 dBA
Noise Level 64 dBA
Output Hp 15 hp
Output Rating 11 kW
Overload Protection No
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 3
Power Factor 75%
Power Factor 100% 0.83
Power Factor 50% 0.68
Power Factor 75% 0.78
Product Datasheet weg-01518et3hct254t-w22.pdf
Rated Torque 44.5 lbs.-ft.
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.25
Shaft Locking Device Without
Shaft Material Carbon Steel
Slip 1.67%
Space Heater Voltage 110-127/200-240V
Speed 1700-1800 RPM , 1770 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Right Position
Torque 44 lbs.-ft.
Tropicalized Painting Complete (200H)

Shipping Info:

Ship weight (kg) 153.45
Ship height (cm)32.26
Ship length (cm)52.83
Ship width (cm)37.08
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageSpeedFrequencyNo. Of PolesNo Load AmpsService FactorInsulation ClassHpPrice
WEG 00158ET3PCT145TF1-W2 Cooling Tower Motor, 1-1/2 Hp, 1755 Rpm, 200 V | AA8MCD 19C671 00158ET3PCT145TF1-W2200V AC1755 RPM60 Hz42.76A1.25Class F1 1/2 hp€1,266.85
WEG 00158ET3ECT145TF1-W2 Cooling Tower Motor, 1-1/2 Hp, 1755 Rpm, 208-230-460 V | AA8MCE 19C672 00158ET3ECT145TF1-W2230/460V AC1755 RPM60 Hz41.2/2.4A1.25Class F1 1/2 hp€1,247.85
WEG 00218ET3PCT145TF1-W2 Cooling Tower Motor, 2 Hp, 1750 Rpm, 200 V | AA8MCF 19C673 00218ET3PCT145TF1-W2200V AC1750 RPM60 Hz43.75A1.25Class F2 hp€1,327.61
WEG 00218ET3ECT145TF1-W2 Cooling Tower Motor, 2 Hp, 1750 Rpm, 208-230-460 V | AA8MCG 19C674 00218ET3ECT145TF1-W2230/460V AC1750 RPM60 Hz41.63/3.26A1.25Class F2 hp€1,327.61
WEG 00318ET3PCT182TF1-W2 Cooling Tower Motor, 3 Hp, 1760 Rpm, 200 V | AA8MCH 19C675 00318ET3PCT182TF1-W2200V AC1760 RPM60 Hz44.6A1.25Class F3 hp€1,411.50
WEG 00318ET3ECT182TF1-W2 Cooling Tower Motor, 3 Hp, 1760 Rpm, 208-230-460 V | AA8MCJ 19C676 00318ET3ECT182TF1-W2230/460V AC1760 RPM50/60 Hz42/4A1.25Class F3 hp€1,440.29
WEG 00518ET3PCT184TF1-W2 Cooling Tower Motor, 5 Hp, 1755 Rpm, 200 V | AA8MCK 19C677 00518ET3PCT184TF1-W2200V AC1750 RPM60 Hz46.9A1.25Class F5 hp€1,576.82
