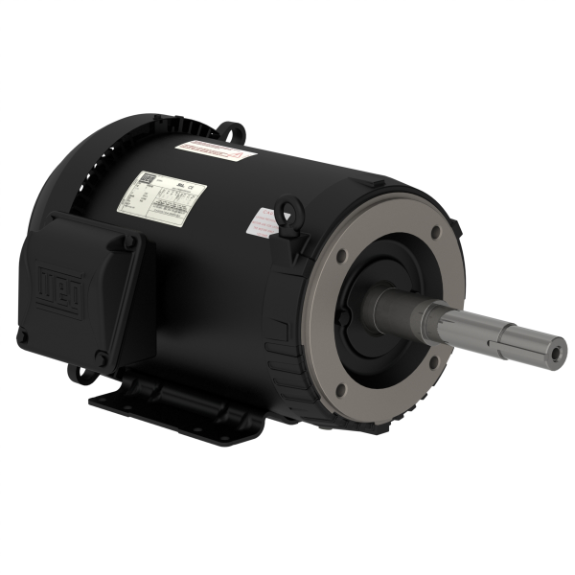

WEG 00718ET3H213JP-SG 14329715 Pump Motor, 7.5 HP, 1800 RPM, 575V, TEFC, 213JP, Footed, Close CoupLED Pump
1800 rpm
7.5 hp
213JP
Get it by Tuesday, Aug 25
€2,027.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 7.34A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 32 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Automatic, Rubber , Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 64% |
| Efficiency @ 1 % | 82% |
| Efficiency @ 75 % | 76% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 213JP |
| Frame Type | 213/5JP |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 18 sec. |
| Hp | 7 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 53.6A |
| Locked Rotor Time(hot) | 18 sec. |
| Locked Rotor Torque | 260% |
| Lrc | 7.3X(Code J) |
| Main Terminal Box Hole Size | 1.377" |
| Material | Carbon Steel |
| Max. Ambient Temp. | -20°C to +40°C |
| Moment Of Inertia | 0.938 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 3.52A |
| No. Of Poles | 4 |
| Noise Level | 60 dBA |
| Output Hp | 7 1/2 hp |
| Output Power | 5.5 kW |
| Output Rating | 5.5 kW , 7 1/2 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor @ 1 % | 91.7 |
| Power Factor @ 50 % | 90.2 |
| Power Factor @ 75 % | 91 |
| Product Datasheet | weg-00718et3h213jp-sg.pdf |
| Rated Voltage | 575V |
| Resilient Base | Without |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.15 |
| Shaft Grade | Grade SAE 1040/45 |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Slip | 1.67% |
| Speed | 1700-1800 RPM , 1770 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 22.3 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 575V , 575V AC |
Shipping Info:
| Ship weight (kg) | 58.33 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 60.71 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Voltage | Service Factor | Hp | Motor Design | Shaft Dia. | Insulation Class | Max. Ambient Temp. | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3E143JP-W22 | 208-230/460V AC | 1.25 | 1 hp | 3-Phase | 7/8" | Class F | 40°C | Cast Iron | €811.98 | |
| 00156ET3E143JP-W22 | 208-230/460V AC | 1.25 | 1 1/2 hp | 3-Phase | 7/8" | Class F | 40°C | Cast Iron | €1,062.51 | |
| 00158ET3E145JP-W22 | 208-230/460V AC | 1.25 | 1 1/2 hp | 3-Phase | 7/8" | Class F | 40°C | Cast Iron | €1,075.03 | |
| 00236ET3E145JP-W22 | 208-230/460V AC | 1.25 | 2 hp | 3-Phase | 7/8" | Class F | 40°C | Cast Iron | €1,130.55 | |
| 00218ET3E145JP-W22 | 208-230/460V AC | 1.25 | 2 hp | 3-Phase | 7/8" | Class F | 40°C | Cast Iron | €1,177.78 | |
| 00336ET3E182JP-W22 | 208-230/460V AC | 1 | 3 hp | 3-Phase | 7/8" | Class F | 40°C | Cast Iron | €1,487.28 | |
| 00318ET3E182JP-W22 | 208-230/460V AC | 1.25 | 3 hp | 3-Phase | 7/8" | Class F | 40°C | Cast Iron | €1,454.02 |
