WEG 00536OT3H182TC-S Electric Motor, 5Hp, 60Hz, 3600 Rpm | BB9HWF

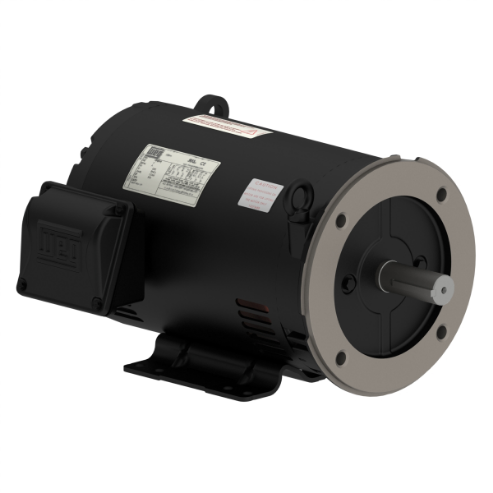

WEG 00536OT3H182TC-S 12751145 General Purpose Motor, ODP RolLED Steel 182/4TC Frame, 5 HP, 3510 RPM, 575 V

Item: BB9HWFModel: 00536OT3H182TC-SCross Ref: 12751145
Check Availability
In Stock

Get it by Tuesday, Sep 1

€822.03 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 m.a.s.l. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 4.88A , 56A
Balancing Method 1/2 Key , 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 300%
Cold Locked Rotor Time 21 sec. , 27 sec.
Connection Cables Quantity 6
De Bearing Seal No
Design B
Drip Cover Without
Duty Cycle Cont.(S1) , Continuous
Efficiency 50% 73%
Efficiency @ 1 % 88%
Efficiency @ 75 % 83%
Enclosure Rating IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Flange Type C
Frame 182/4TC
Frame Material Rolled Steel
Frame Size 182TC
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Single
Grounding Lugs Type Single
Hot Locked Rotor Time 12 sec.
Hp 5 hp
Impregnation Method Dip And Bake Polyester
Insulation Class F
L. R. Amps 37.1A , 38.4A
Locked Rotor Time(hot) 15 sec.
Locked Rotor Torque 190%
Lrc 7.6X(Code J)
Main Terminal Box Hole Size 1.118"
Material Carbon Steel
Moment Of Inertia 0.1386 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3510 RPM
Mounting Foot Mounted , Foot-Mounted, F-1
Nde Bearing Seal No
No Load Amps 2.06A
No. Of Poles 2
Noise Level 65 dBA
Output 5 hp
Output Rating 5 hp
Overload Protector Without Overload Protector
Overload Protector (phenolic) Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer
Phase 3
Power Factor @ 1 % 86.5
Power Factor @ 50 % 85.5
Power Factor @ 75 % 86.5
Product Datasheet weg-00536ot3h182tc-s.pdf
Resilient Base Without
Rotation CW And CCW , CW, CCW
Service Factor 1.15
Shaft Material Carbon Steel , SAE 1040/45 Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Speed 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 7.48 lbs.-ft.
Tropicalized Painting Without

Shipping Info:

Ship weight (kg) 27.45
Ship height (cm)24.38
Ship length (cm)39.88
Ship width (cm)30.99
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelPhaseFrequencyService FactorHpFull Load AmpsFrameFrame MaterialNo. Of PolesPrice
WEG 01518OT3H254TC General Purpose Motor, 3 Phase, Odp 15 Hp, 1775 Rpm, 254tc | AA4JDU 12N921 01518OT3H254TC360 Hz1.1515 hp14.9A254TCCast Iron-€1,909.02
WEG 02018OT3H256TC General Purpose Motor, 3 Phase, Odp 20 Hp, 1770 Rpm, 256tc | AA4JDW 12N923 02018OT3H256TC360 Hz1.1520 hp19.8A256TCCast Iron-€2,237.16
WEG 02518OT3H284TC General Purpose Motor, 3 Phase, Odp 25 Hp, 1170 Rpm, 284tc | AA4JDY 12N925 02518OT3H284TC360 Hz1.1525 hp23.9A284TCCast Iron-€3,659.77
WEG 03018OT3H286TC General Purpose Motor, 3 Phase, Odp 30 Hp, 1170 Rpm, 286tc | AA4JEA 12N927 03018OT3H286TC360 Hz1.1530 hp28.3A286TCCast Iron-€3,744.49
WEG 20018OT3G445T General Purpose Motor, 3 Phase, Odp 200 Hp, 1780 Rpm, 445t | AB4GEV 1XTZ1 20018OT3G445T360 Hz1.15200 hp229A445TCast Iron-€17,928.59
WEG 15036OT3G405TS General Purpose Motor, 3 Phase, Odp 150 Hp, 3555 Rpm, 405ts | AB4GEY 1XTZ8 15036OT3G405TS360 Hz1.15150 hp162A405TSCast Iron-€15,787.11
WEG 20036OT3G444TS General Purpose Motor, 3 Phase, Odp 200 Hp, 3575 Rpm, 444ts | AB4GEZ 1XTZ9 20036OT3G444TS360 Hz1.15200 hp228A444TSCast Iron-€20,850.80
