WEG 00536OS3ECD56-S Electric Motor, 5Hp, 60Hz, 3600 Rpm | BB3YLV

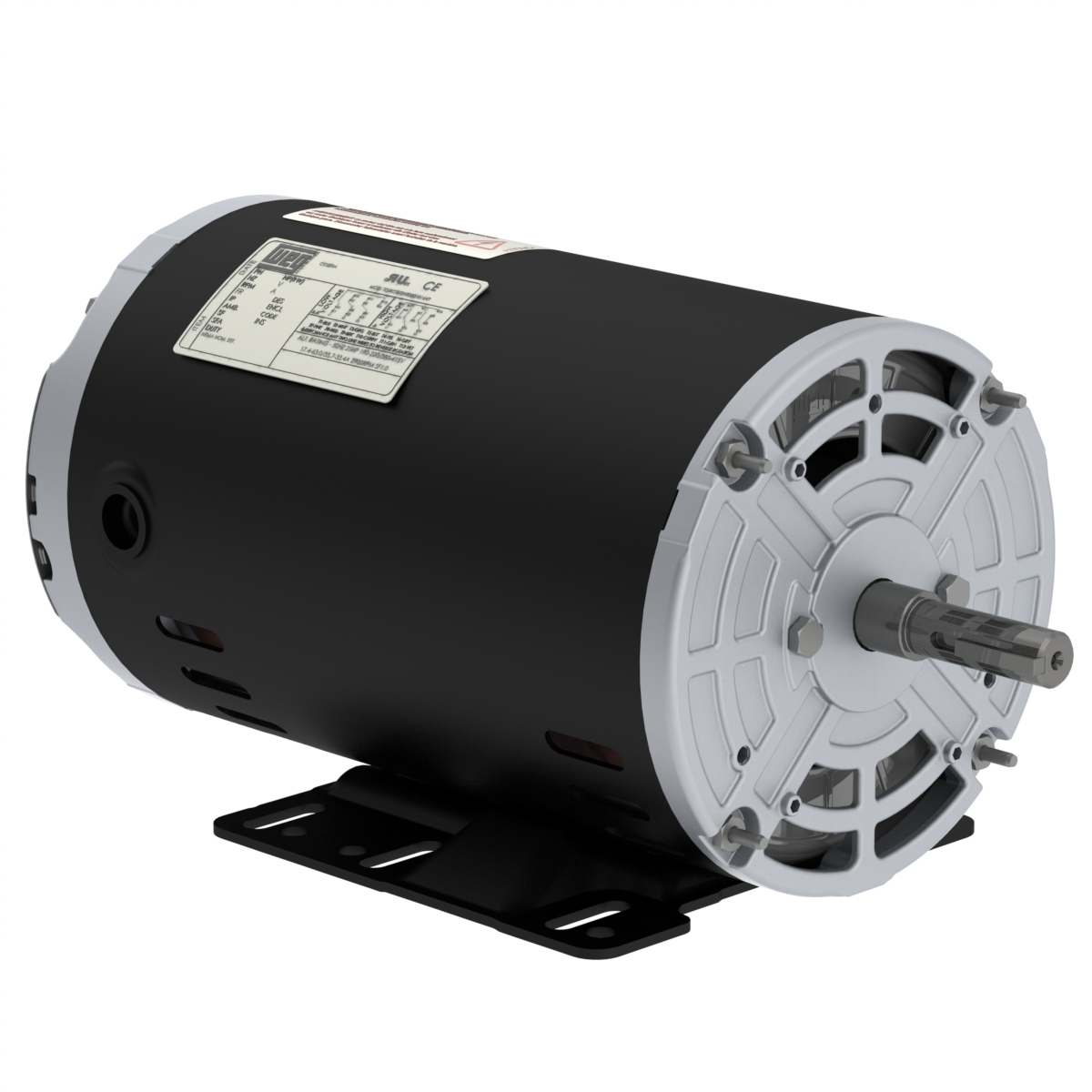

WEG 00536OS3ECD56-S 13571295 Compressor Duty Motor, 5 HP, 3600 RPM, 208-230/460 V, 3 Phase, ODP, 56 Frame, Footed

Item: BB3YLVModel: 00536OS3ECD56-SCross Ref: 13571295
Check Availability
In Stock

Get it by Wednesday, Jul 1

€491.54 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 14.2-12.8/6.4A , 6.4/12.8-14.2A
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break Down Torque 200%
Cable Press Material Sem
Cold Locked Rotor Time 9 sec.
Composition Steel
Connection Cables Quantity 9
Design A
Drip Cover Without
Duty Cycle Intermittent , S3
Efficiency 50% 79% , 82%
Efficiency 75% 81%
Efficiency @ 1 % 92%
Efficiency @ 100% 79%
Efficiency @ 75 % 88%
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Without
Flange Type Without
Frame 56H
Frame Material Rolled Steel
Frame Size 56H
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 5 sec.
Hp 5 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 35.2/70.4-78.1A , 78.1-70.4/35.2A
Locked Rotor Time 5 sec.
Locked Rotor Time (cold) 9 sec.
Locked Rotor Torque 170%
Lrc 5.5X(Code G)
Moment Of Inertia 0.1092 lbs.-sq. ft.
Moment Of Inertia (j) 0.1092 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3390 RPM
Mounting F-1 , Foot Mounted
No Load Amps 0-4.8/2.4A
No. Of Poles 2
Output 5 hp
Output Rating 5 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Only Primer
Phase 3
Power Factor 100% 0.92
Power Factor 50% 0.79
Power Factor 75% 0.88
Power Factor @ 1 % 79
Power Factor @ 50 % 82
Power Factor @ 75 % 81
Resilient Base Without
Rotation CW, CCW
Service Factor 1
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 5.83%
Speed 3390 RPM , 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 105 K
Terminal Box Without Terminal Box
Torque 7.75 lbs.-ft.
Tropicalized Painting Without
Voltage 208-230/460V , 208-230/460V AC

Shipping Info:

Ship weight (kg) 20.25
Ship height (cm)2.54
Ship length (cm)34.19
Ship width (cm)2.54

Product Variants

ProductModelPhaseFrequencyService FactorHpFull Load AmpsFrameNo. Of PolesFrame MaterialPrice
WEG 01518OT3H254TC General Purpose Motor, 3 Phase, Odp 15 Hp, 1775 Rpm, 254tc | AA4JDU 12N921 01518OT3H254TC360 Hz1.1515 hp14.9A254TC-Cast Iron€1,909.02
WEG 02018OT3H256TC General Purpose Motor, 3 Phase, Odp 20 Hp, 1770 Rpm, 256tc | AA4JDW 12N923 02018OT3H256TC360 Hz1.1520 hp19.8A256TC-Cast Iron€2,237.16
WEG 02518OT3H284TC General Purpose Motor, 3 Phase, Odp 25 Hp, 1170 Rpm, 284tc | AA4JDY 12N925 02518OT3H284TC360 Hz1.1525 hp23.9A284TC-Cast Iron€3,659.77
WEG 03018OT3H286TC General Purpose Motor, 3 Phase, Odp 30 Hp, 1170 Rpm, 286tc | AA4JEA 12N927 03018OT3H286TC360 Hz1.1530 hp28.3A286TC-Cast Iron€3,744.49
WEG 20018OT3G445T General Purpose Motor, 3 Phase, Odp 200 Hp, 1780 Rpm, 445t | AB4GEV 1XTZ1 20018OT3G445T360 Hz1.15200 hp229A445T-Cast Iron€17,928.59
WEG 15036OT3G405TS General Purpose Motor, 3 Phase, Odp 150 Hp, 3555 Rpm, 405ts | AB4GEY 1XTZ8 15036OT3G405TS360 Hz1.15150 hp162A405TS-Cast Iron€15,787.11
WEG 20036OT3G444TS General Purpose Motor, 3 Phase, Odp 200 Hp, 3575 Rpm, 444ts | AB4GEZ 1XTZ9 20036OT3G444TS360 Hz1.15200 hp228A444TS-Cast Iron€20,850.80
