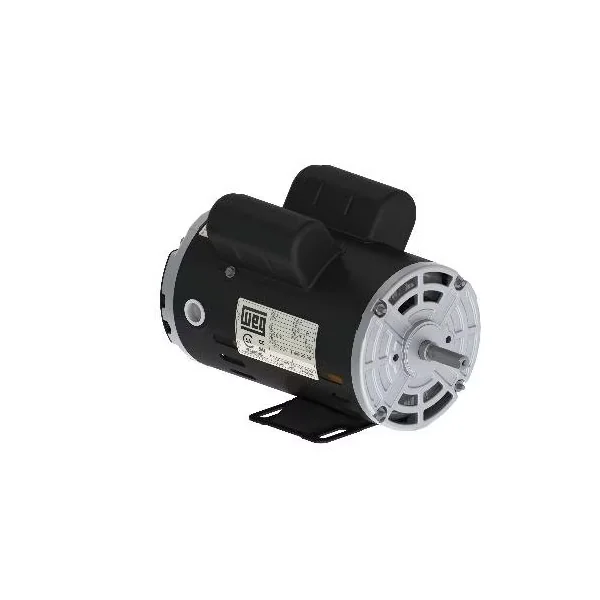

WEG 00336OT3E56-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB8VWP

WEG 00336OT3E56-S 12812390 Fractional Motor, 3 HP, 3600 RPM, 208-230/460 V, 3 Phase, ODP, 56 Frame, Footed

Item: BB8VWPModel: 00336OT3E56-SCross Ref: 12812390
Check Availability
In Stock

Get it by Tuesday, Aug 25

€578.65 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 7.18/3.59A
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break Down Torque 300%
Cold Locked Rotor Time 16 sec.
Composition Steel
Connection Cables Quantity 9
Design A
Drip Cover Without
Duty Cycle Continuous
Efficiency 50% 76%
Efficiency @ 1 % 90%
Efficiency @ 75 % 86%
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange Type Without
Frame 56
Frame Material Rolled Steel
Frequency 50/60 Hz , 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 9 sec.
Hp 3 hp
Impregnation Method Dip And Bake Polyester
L. R. Amps 57.4/28.7A
Locked Rotor Torque 229%
Lrc 8.0X(Code J)
Moment Of Inertia 0.1279 lbs.-sq. ft.
Motor Enclosure Design Open Dripproof
Motor Speed 3480 RPM
Mounting Foot Mounted
No Load Amps 2.6/1.3A
No. Of Poles 2
Noise Level 62 dBA
Output 3 hp
Output Rating 3 hp
Overload Protector Without Overload Protector
Painting Only Primer
Phase 3
Power Factor @ 1 % 85.5
Power Factor @ 50 % 84
Power Factor @ 75 % 85.5
Product Datasheet weg-00336ot3e56-s.pdf
Resilient Base Without
Rotation CW, CCW
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.33%
Speed 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Torque 4.53 lbs.-ft.
Tropicalized Painting Without
Voltage 230/460V , 230/460V AC

Shipping Info:

Ship weight (kg) 15.75
Ship height (cm)77.98
Ship length (cm)33.2
Ship width (cm)85.09
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelPhaseFrequencyService FactorHpFull Load AmpsFrameFrame MaterialNo. Of PolesPrice
WEG 01518OT3H254TC General Purpose Motor, 3 Phase, Odp 15 Hp, 1775 Rpm, 254tc | AA4JDU 12N921 01518OT3H254TC360 Hz1.1515 hp14.9A254TCCast Iron-€1,909.02
WEG 02018OT3H256TC General Purpose Motor, 3 Phase, Odp 20 Hp, 1770 Rpm, 256tc | AA4JDW 12N923 02018OT3H256TC360 Hz1.1520 hp19.8A256TCCast Iron-€2,237.16
WEG 02518OT3H284TC General Purpose Motor, 3 Phase, Odp 25 Hp, 1170 Rpm, 284tc | AA4JDY 12N925 02518OT3H284TC360 Hz1.1525 hp23.9A284TCCast Iron-€3,659.77
WEG 03018OT3H286TC General Purpose Motor, 3 Phase, Odp 30 Hp, 1170 Rpm, 286tc | AA4JEA 12N927 03018OT3H286TC360 Hz1.1530 hp28.3A286TCCast Iron-€3,744.49
WEG 20018OT3G445T General Purpose Motor, 3 Phase, Odp 200 Hp, 1780 Rpm, 445t | AB4GEV 1XTZ1 20018OT3G445T360 Hz1.15200 hp229A445TCast Iron-€17,928.59
WEG 15036OT3G405TS General Purpose Motor, 3 Phase, Odp 150 Hp, 3555 Rpm, 405ts | AB4GEY 1XTZ8 15036OT3G405TS360 Hz1.15150 hp162A405TSCast Iron-€15,787.11
WEG 20036OT3G444TS General Purpose Motor, 3 Phase, Odp 200 Hp, 3575 Rpm, 444ts | AB4GEZ 1XTZ9 20036OT3G444TS360 Hz1.15200 hp228A444TSCast Iron-€20,850.80
