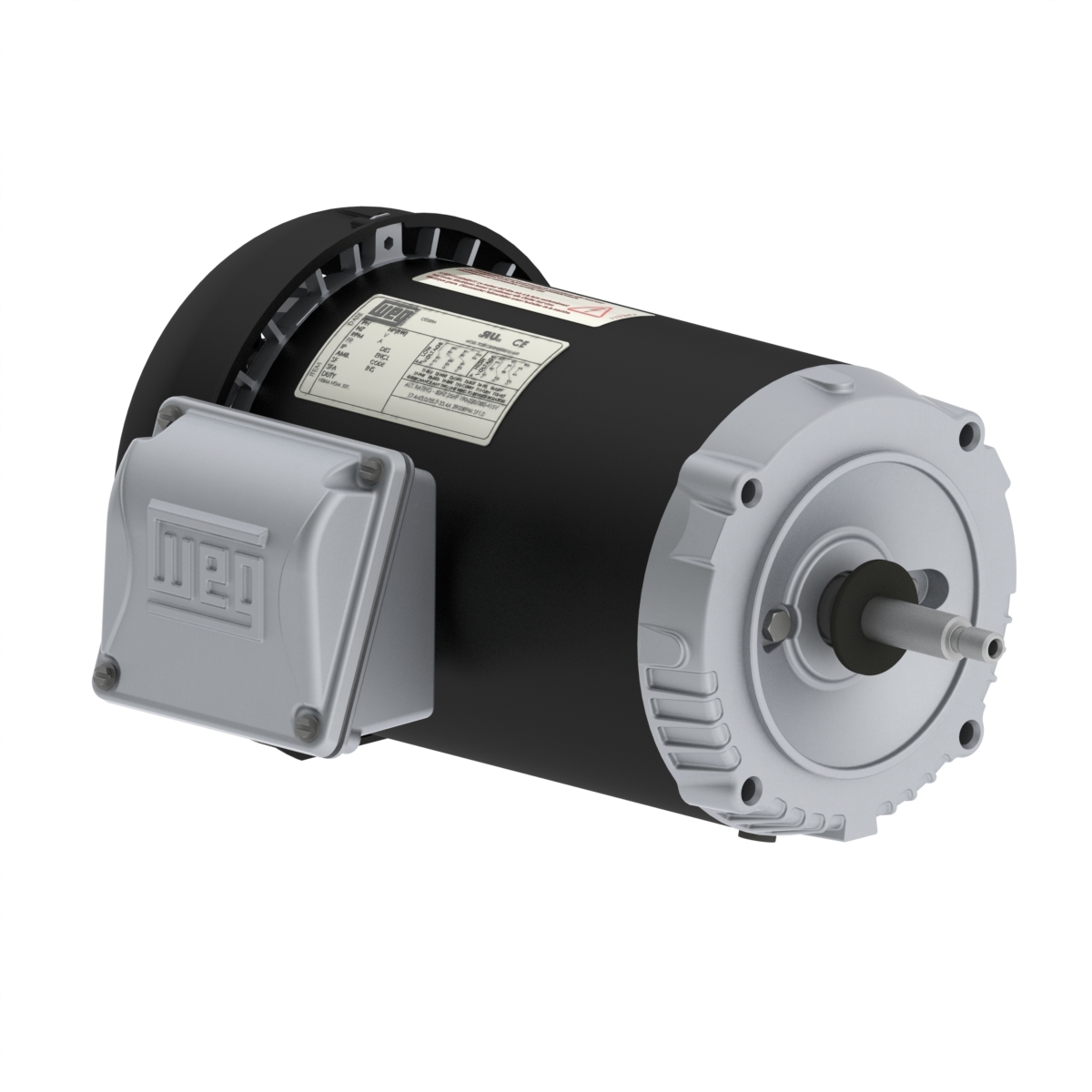

WEG 00336ET3EJPR56J-S Electric Motor, 3Hp, 60Hz, 3600 Rpm | BB9NJX

WEG 00336ET3EJPR56J-S 14795712 Jet Pump Motor, 3 HP, 3600 RPM, 208-230/460 V, 3 Phase, TEFC, 56J Frame, Footless

Item: BB9NJXModel: 00336ET3EJPR56J-SCross Ref: 14795712
Check Availability
In Stock

Get it by Thursday, Feb 19

€744.48 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method Without Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break-down Torque 380%
Cold Locked Rotor Time 18 sec.
Composition Steel
Connection Cables Quantity 9
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency At 1 % 87%
Efficiency At 50 % 71%
Efficiency At 75 % 82%
Enclosure Type Tefc
Fan Cover Material Polymer
Fan Material Plastic
Flange Type C
Frame 56J
Frame Material Rolled Steel
Frame Size 56J
Frequency 50/60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 10 sec.
Hp 3 hp
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 68.3/34.1A
Locked Rotor Torque 280%
Lrc 9.3X(Code L)
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.1663 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3505 RPM
Mounting Footless
No Load Amps 3.2/1.6A
No. Of Poles 2
Noise Level 68 dBA
Output 3 hp
Output Rating 3 hp
Overload Protector Without Overload Protector
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 3
Power Factor At 1 % 86.5
Power Factor At 50 % 81
Power Factor At 75 % 84
Product Datasheet weg-00336et3ejpr56j-s.pdf
Rated Current 7.34/3.67A
Rated Torque 4.49 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation CCW
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Material Stainless Steel
Shaft Material Grade Grade 304
Slip 2.64%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 23.4
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Documentation:

Datasheet

Product Variants

ProductModelService FactorHpFrequencyFull Load AmpsFrameNo Load AmpsDuty CycleBreak-down TorquePrice
WEG .3336ES3EJPR56C Electric Motor, 0.33Hp, 60Hz, 3465 Rpm | BB6HGK .3336ES3EJPR56C133/100 hp-0.6/1.2-1.22A56C0.39/0.78A--€220.57
WEG 00156ES3EJPR56C Electric Motor, 1.5Hp, 60Hz, 3440 Rpm | BB7GCA 00156ES3EJPR56C11 1/2 hp-1.95/3.9-4.25A56C0.86/1.72A---
RFQ
WEG .7536ES3EJPR56J-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB7HWQ .7536ES3EJPR56J-S1.153/4 hp50/60 Hz-56J0.948-1.1/0.55AS1290%€380.59
WEG .3336ES3EJPR56J-S Electric Motor, 0.33Hp, 60Hz, 3600 Rpm | BB7ZMD .3336ES3EJPR56J-S1.151/3 hp60 Hz-56J0.621-0.72/0.36AS1300%€319.74
WEG .7536ES3EJPR56C-S Electric Motor, 0.75Hp, 60Hz, 3600 Rpm | BB8AVT .7536ES3EJPR56C-S1.153/4 hp50/60 Hz-56C0.948-1.1/0.55AS1290%€349.57
WEG .5036ES3EJPR56J-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB8CQT .5036ES3EJPR56J-S1.151/2 hp60 Hz-56J0.776-0.9/0.45AS1300%€336.46
WEG .5036ES3EJPR56C-S Electric Motor, 0.5Hp, 60Hz, 3600 Rpm | BB8YZF .5036ES3EJPR56C-S1.151/2 hp60 Hz-56C0.776-0.9/0.45AS1300%€322.14
