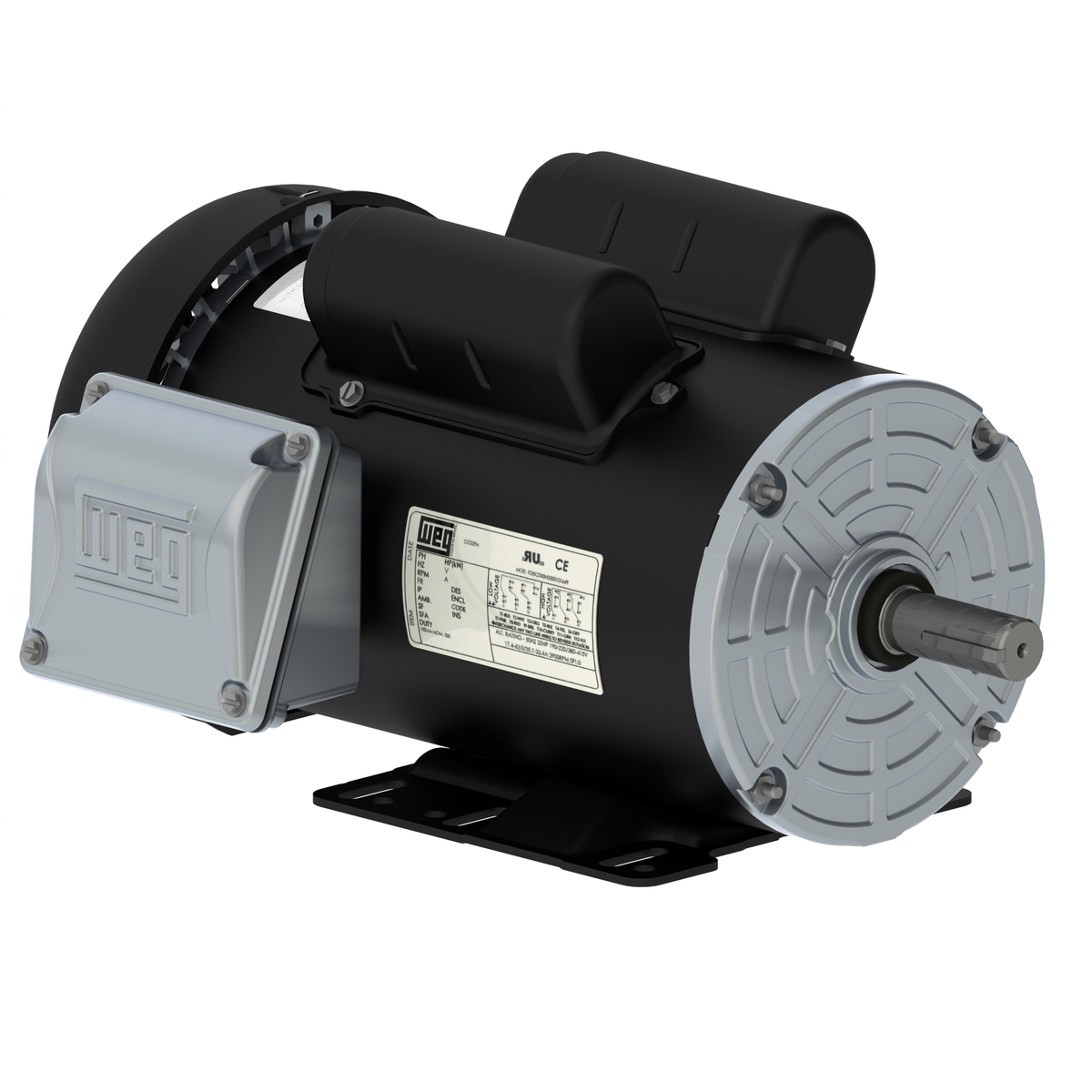

WEG 00336ES1E145T-S 13952797 Single-Phase General Purpose Motor, 3 HP, 3600 RPM, 208/230/460 V, TEFC, 145T Frame, Rolled Steel
Get it by Monday, Aug 24
€989.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 6.35/12.7-14A |
| Application | General Purpose |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 250% |
| Cable Press Material | Sem |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 80% |
| Efficiency 50% | 76% |
| Efficiency 75% | 79% |
| Efficiency @ 100% | 80% |
| Enclosure | IC411 |
| Enclosure Iec | IP55 |
| Enclosure Nema Rating | Totally Enclosed Fan Cooled |
| Enclosure Type | Tefc |
| Fan Cover Material | Industrial Polymer |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 143/5T , 145T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 50.8/102-112A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 210% |
| Main Terminal Box Hole | 1.118" |
| Moment Of Inertia (j) | 0.004 kg-sq. m |
| Mounting | F-1 |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA 143-5T |
| Nema Mount | Base Mount |
| No Load Amps | 2/3.45-4A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output Hp | 3 hp |
| Output Kw | 2.2 kW |
| Output Rating | 3 hp |
| Output Speed | 3490 RPM |
| Overload Protection | No |
| Phase | 1 |
| Power Factor 100% | 0.94 |
| Power Factor 50% | 0.86 |
| Power Factor 75% | 0.92 |
| Replaces | 00336ES1E145T |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 3.06% |
| Speed | 3400-3600 RPM , 3490 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 0.624 kgf-m |
| Voltage | 208-230/460V , 208/230/460V AC |
Shipping Info:
| Ship weight (kg) | 23.85 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Service Factor | Hp | Frame | Insulation Class | Duty Cycle | No. Of Poles | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
.5018ES1RFDW56-S | 115/230V | 1.15 | 1/2 hp | W56 | Class F | S1 | 4 | 1800 RPM | €367.46 | |
 |
00136ES1B143T-S | 115/208-230V AC | 1.15 | - | 143/5T | Class F | S1 | 2 | 3600 RPM | €659.77 | |
 |
00118ES1E143T-S | 208-230/460V AC | 1.15 | 1 hp | 143/5T | Class F | S1 | 4 | 1800 RPM | €633.53 | |
 |
00118ES1ER143TC-S | 208-230/460V AC | 1.15 | 1 hp | 143/5TC | Class F | S1 | 4 | 1800 RPM | €666.92 | |
 |
00118ES1RFD143T-S | 115/230V | 1.15 | 1 hp | 143/5T | Class F | S1 | 4 | 1800 RPM | €477.24 | |
|
00156ES1B143T-S | 115/208-230V AC | 1.15 | - | 143/5T | Class F | S1 | 2 | 3600 RPM | €718.25 | |
|
00158ES1B145T-S | 115/208-230V AC | 1.15 | 1 1/2 hp | 143/5T | Class F | S1 | 4 | 1800 RPM | €730.16 |
