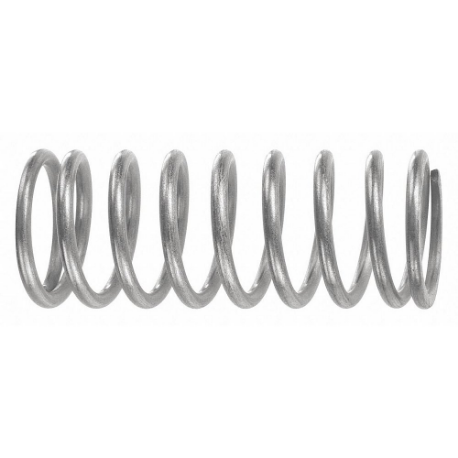

SPEC Standard Compression Springs, Music Wire, 0.97 Inch Outside Dia.
Filter
A
B| Style | Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Wire Dia. | Spring Rate (stiffness) | Load Capacity | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C09701053000M | - | 3" | 1.45" | 0.97" | 0.76" | 0.105" | 31 lbs./in. | 47.92 lbs. | 3 | €56.26 | |
| B | C09700721000M | Carbon Steel | 1" | 0.4" | 0.97" | 0.83" | 0.072" | 28 lbs./in. | 16.79 lbs. | 3 | €49.60 | |
| A | C09700852500M | Carbon Steel | 2.5" | 1.2" | 0.97" | 0.8" | 0.085" | 20.5 lbs./in. | 26.67 lbs. | 3 | €55.61 | |
| A | C09701204000M | Spring Wire | 4" | 2.18" | 0.97" | 0.73" | 0.12" | 38 lbs./in. | 69.24 lbs. | 3 | €57.03 | |
| B | C09701622500M | Spring Wire | 2.5" | 1.8" | 0.97" | 0.65" | 0.162" | 224.4 lbs./in. | 156.61 lbs. | 3 | €57.31 | |
| A | C09700632500M | Spring Wire | 2.5" | 0.79" | 0.97" | 0.84" | 0.063" | 6.7 lbs./in. | 11.56 lbs. | 3 | €49.77 | |
| A | C09700952500M | Spring Wire | 2.5" | 1.15" | 0.97" | 0.78" | 0.095" | 26.9 lbs./in. | 36.32 lbs. | 3 | €55.73 | |
| B | C09701151750M | Spring Wire | 1.75" | 0.96" | 0.97" | 0.74" | 0.115" | 78 lbs./in. | 61.46 lbs. | 3 | €55.88 | |
| A | C09700801250M | Spring Wire | 1.25" | 0.59" | 0.97" | 0.81" | 0.08" | 33.9 lbs./in. | 22.53 lbs. | 3 | €55.20 | |
| A | C09700632750M | Spring Wire | 2.75" | 0.85" | 0.97" | 0.84" | 0.063" | 6.1 lbs./in. | 11.56 lbs. | 3 | €49.77 | |
| A | C09701482000M | Spring Wire | 2" | 1.38" | 0.97" | 0.67" | 0.148" | 189.6 lbs./in. | 118.4 lbs. | 3 | €56.67 | |
| A | C09700952000M | Spring Wire | 2" | 0.94" | 0.97" | 0.78" | 0.095" | 34.3 lbs./in. | 36.32 lbs. | 3 | €55.73 | |
| A | C09701352500M | Spring Wire | 2.5" | 1.55" | 0.97" | 0.7" | 0.135" | 99.3 lbs./in. | 94.11 lbs. | 3 | €56.67 | |
| A | C09701623000M | Spring Wire | 3" | 2.14" | 0.97" | 0.65" | 0.162" | 182.5 lbs./in. | 156.67 lbs. | 3 | €57.73 | |
| A | C09700953000M | Spring Wire | 3" | 1.36" | 0.97" | 0.78" | 0.095" | 22.1 lbs./in. | 36.32 lbs. | 3 | €55.88 | |
| A | C09700853500M | Spring Wire | 3.5" | 1.64" | 0.97" | 0.8" | 0.085" | 14.3 lbs./in. | 26.67 lbs. | 3 | €55.73 | |
| A | C09701122500M | Spring Wire | 2.5" | 1.29" | 0.97" | 0.75" | 0.112" | 47 lbs./in. | 56.83 lbs. | 3 | €56.26 | |
| A | C09700632250M | Spring Wire | 2.25" | 0.72" | 0.97" | 0.84" | 0.063" | 7.5 lbs./in. | 11.56 lbs. | 3 | €49.60 | |
| A | C09700951500M | Spring Wire | 1.5" | 0.73" | 0.97" | 0.78" | 0.095" | 47.3 lbs./in. | 36.32 lbs. | 3 | €55.61 | |
| A | C09700802500M | Spring Wire | 2.5" | 1.07" | 0.97" | 0.81" | 0.08" | 15.8 lbs./in. | 22.53 lbs. | 3 | €55.30 | |
| A | C09701623500M | Spring Wire | 3.5" | 2.48" | 0.97" | 0.65" | 0.162" | 153.7 lbs./in. | 156.48 lbs. | 3 | €58.24 | |
| A | C09700923000M | Spring Wire | 3" | 1.28" | 0.97" | 0.79" | 0.092" | 17.7 lbs./in. | 30.47 lbs. | 3 | €55.88 | |
| A | C09701253500M | Spring Wire | 3.5" | 2.04" | 0.97" | 0.72" | 0.125" | 53.2 lbs./in. | 77.46 lbs. | 3 | €56.93 | |
| A | C09701622000M | Spring Wire | 2" | 1.46" | 0.97" | 0.65" | 0.162" | 291.3 lbs./in. | 156.54 lbs. | 3 | €57.03 | |
| A | C09700802750M | Spring Wire | 2.75" | 1.18" | 0.97" | 0.81" | 0.08" | 14.3 lbs./in. | 22.53 lbs. | 3 | €55.61 | |
| A | C09701052250M | Spring Wire | 2.25" | 1.14" | 0.97" | 0.76" | 0.105" | 43 lbs./in. | 47.92 lbs. | 3 | €55.88 | |
| A | C09701483000M | Spring Wire | 3" | 2.01" | 0.97" | 0.67" | 0.148" | 119.5 lbs./in. | 118.44 lbs. | 3 | €57.31 | |
| A | C09701352000M | Spring Wire | 2" | 1.27" | 0.97" | 0.7" | 0.135" | 128 lbs./in. | 94.11 lbs. | 3 | €56.40 | |
| A | C09700853000M | Spring Wire | 3" | 1.42" | 0.97" | 0.8" | 0.085" | 16.8 lbs./in. | 26.67 lbs. | 3 | €55.61 | |
| A | C09700852250M | Spring Wire | 2.25" | 1.09" | 0.97" | 0.8" | 0.085" | 22.9 lbs./in. | 26.67 lbs. | 3 | €55.61 | |
| A | C09701052500M | Spring Wire | 2.5" | 1.24" | 0.97" | 0.76" | 0.105" | 38 lbs./in. | 47.92 lbs. | 3 | €55.99 | |
| A | C09701484000M | Spring Wire | 4" | 2.64" | 0.97" | 0.67" | 0.148" | 87.2 lbs./in. | 118.33 lbs. | 3 | €58.14 | |
| A | C09700630750M | Spring Wire | 0.75" | 0.3" | 0.97" | 0.84" | 0.063" | 25.6 lbs./in. | 11.56 lbs. | 3 | €49.50 | |
| A | C09700854000M | Spring Wire | 4" | 1.86" | 0.97" | 0.8" | 0.085" | 12.5 lbs./in. | 26.67 lbs. | 3 | €55.73 | |
| A | C09701203000M | Spring Wire | 3" | 1.67" | 0.97" | 0.73" | 0.12" | 52 lbs./in. | 69.24 lbs. | 3 | €56.52 | |
| A | C09701153500M | Spring Wire | 3.5" | 1.81" | 0.97" | 0.74" | 0.115" | 36 lbs./in. | 60.74 lbs. | 3 | €56.52 | |
| B | C09701351000M | Spring Wire | 1" | 0.68" | 0.97" | 0.7" | 0.135" | 303 lbs./in. | 95.64 lbs. | 3 | €55.73 | |
| A | C09700722500M | Spring Wire | 2.5" | 0.85" | 0.97" | 0.83" | 0.072" | 10.2 lbs./in. | 16.79 lbs. | 3 | €49.86 | |
| A | C09701202500M | Spring Wire | 2.5" | 1.42" | 0.97" | 0.73" | 0.12" | 64 lbs./in. | 69.24 lbs. | 3 | €56.26 | |
| A | C09700804000M | Spring Wire | 4" | 1.68" | 0.97" | 0.81" | 0.08" | 9.7 lbs./in. | 22.53 lbs. | 3 | €55.73 | |
| A | C09700723000M | Spring Wire | 3" | 1" | 0.97" | 0.83" | 0.072" | 8.4 lbs./in. | 16.79 lbs. | 3 | €49.86 | |
| A | C09701252000M | Spring Wire | 2" | 1.22" | 0.97" | 0.72" | 0.125" | 98.7 lbs./in. | 77.46 lbs. | 3 | €56.26 | |
| A | C09700802250M | Spring Wire | 2.25" | 0.98" | 0.97" | 0.81" | 0.08" | 17.7 lbs./in. | 22.53 lbs. | 3 | €55.30 | |
| A | C09701154000M | Spring Wire | 4" | 2.08" | 0.97" | 0.74" | 0.115" | 32 lbs./in. | 61.59 lbs. | 3 | €56.93 | |
| A | C09701254000M | Spring Wire | 4" | 2.32" | 0.97" | 0.72" | 0.125" | 46.1 lbs./in. | 77.46 lbs. | 3 | €57.03 | |
| A | C09700722250M | Spring Wire | 2.25" | 0.77" | 0.97" | 0.83" | 0.072" | 11.4 lbs./in. | 16.79 lbs. | 3 | €49.86 | |
| A | C09700801500M | Spring Wire | 1.5" | 0.68" | 0.97" | 0.81" | 0.08" | 27.6 lbs./in. | 22.53 lbs. | 3 | €55.30 | |
| A | C09701481500M | Spring Wire | 1.5" | 1.06" | 0.97" | 0.67" | 0.148" | 268.4 lbs./in. | 118.47 lbs. | 3 | €56.26 | |
| A | C09700634000M | Spring Wire | 4" | 1.2" | 0.97" | 0.84" | 0.063" | 4.1 lbs./in. | 11.56 lbs. | 3 | €49.86 | |
| A | C09701123000M | Spring Wire | 3" | 1.53" | 0.97" | 0.75" | 0.112" | 39 lbs./in. | 57.26 lbs. | 3 | €56.40 | |
| A | C09700633000M | Spring Wire | 3" | 0.92" | 0.97" | 0.84" | 0.063" | 5.6 lbs./in. | 11.56 lbs. | 3 | €49.77 | |
| A | C09700633500M | Spring Wire | 3.5" | 1.06" | 0.97" | 0.84" | 0.063" | 4.7 lbs./in. | 11.56 lbs. | 3 | €49.86 | |
| A | C09700632000M | Spring Wire | 2" | 0.65" | 0.97" | 0.84" | 0.063" | 8.5 lbs./in. | 11.56 lbs. | 3 | €49.60 | |
| A | C09701051750M | Spring Wire | 1.75" | 0.91" | 0.97" | 0.76" | 0.105" | 57 lbs./in. | 47.92 lbs. | 3 | €55.73 | |
| A | C09701251250M | Spring Wire | 1.25" | 0.8" | 0.97" | 0.72" | 0.125" | 172.5 lbs./in. | 77.46 lbs. | 3 | €55.73 | |
| A | C09701152250M | Spring Wire | 2.25" | 1.21" | 0.97" | 0.74" | 0.115" | 59 lbs./in. | 61.59 lbs. | 3 | €56.26 | |
| A | C09700631500M | Spring Wire | 1.5" | 0.51" | 0.97" | 0.84" | 0.063" | 11.6 lbs./in. | 11.56 lbs. | 3 | €49.60 | |
| A | C09701201750M | Spring Wire | 1.75" | 1.02" | 0.97" | 0.73" | 0.12" | 95 lbs./in. | 69.24 lbs. | 3 | €55.99 | |
| A | C09700951750M | Spring Wire | 1.75" | 0.84" | 0.97" | 0.78" | 0.095" | 39.7 lbs./in. | 36.32 lbs. | 3 | €55.61 | |
| A | C09701351750M | Spring Wire | 1.75" | 1.12" | 0.97" | 0.7" | 0.135" | 149.6 lbs./in. | 94.11 lbs. | 3 | €56.26 | |
| A | C09700801750M | Spring Wire | 1.75" | 0.78" | 0.97" | 0.81" | 0.08" | 23.2 lbs./in. | 22.53 lbs. | 3 | €55.30 |
