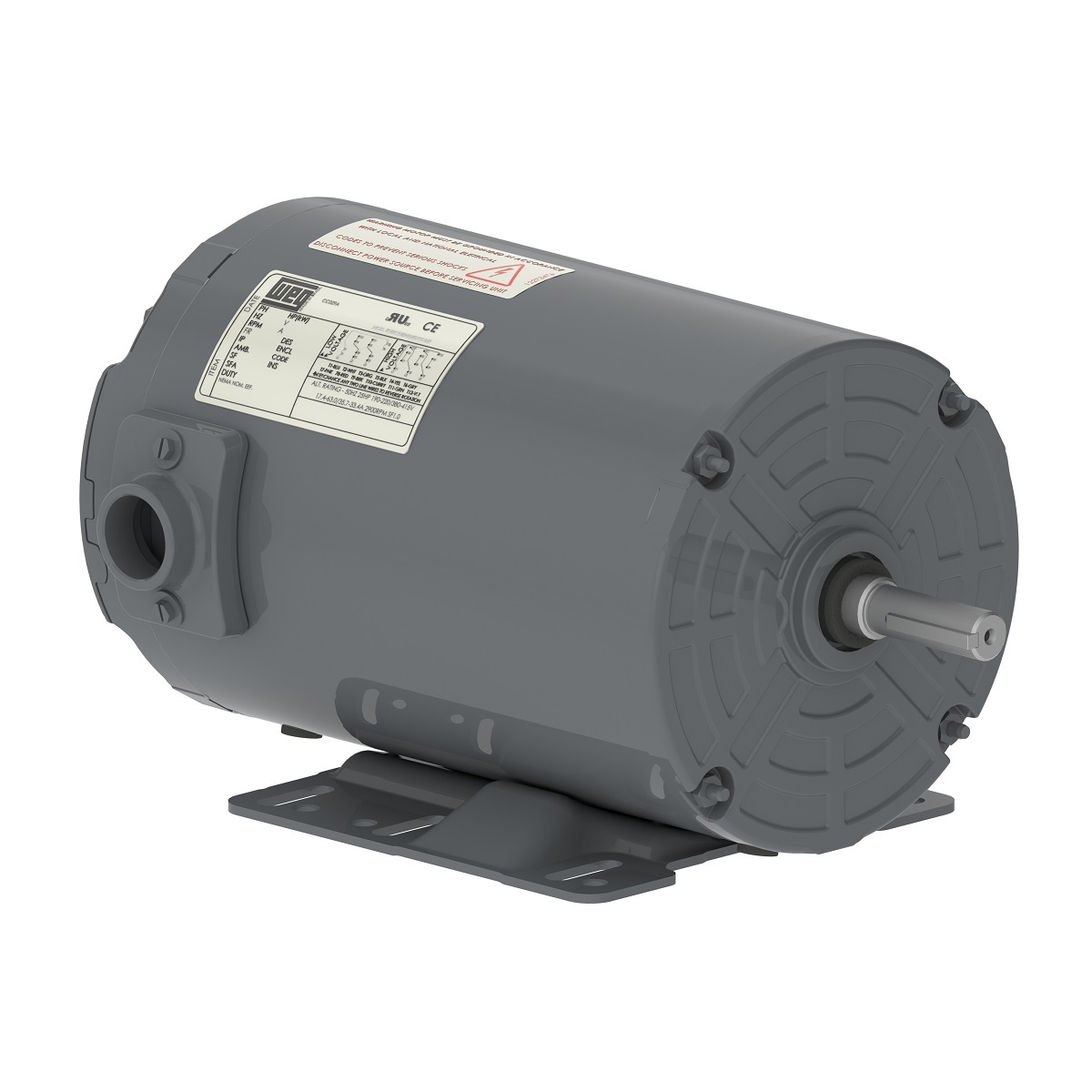

WEG 00336AP3EAF145TZ-S 13248530 Electric Motor, 3Hp, 60Hz, 3600 Rpm
Get it by Tuesday, Dec 23
€786.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 330% |
| Cold Locked Rotor Time | 16 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Design | A |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 91% |
| Efficiency At 50 % | 78% |
| Efficiency At 75 % | 87% |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 143/5TZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 9 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 65.9-59.6/29.8A |
| Locked Rotor Torque | 270% |
| Lrc | 8.4X(Code J) |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.14 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Speed | 3480 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 2.24-2.6/1.3A |
| No. Of Poles | 2 |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL7031 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 85.5 |
| Power Factor At 50 % | 84 |
| Power Factor At 75 % | 85.5 |
| Rated Current | 7.85-7.1/3.55A |
| Rated Torque | 4.53 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 3.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 32.52 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Model | Hp | Frequency | Service Factor | No Load Amps | Mounting | Output Rating | Altitude | Rated Current | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00136AS3EAF56Z-S | 1 hp | 60 Hz | 1.25 | 0-1.2/0.6A | Foot Mounted | 1 hp | 1000 MASL | 3.34-3.03/1.51A | €518.99 | |
| 00156AP3EAF143TZ-S | 1 1/2 hp | 50 Hz | 1 | 1.6/0.8A | Foot Mounted | 1 1/2 hp | 1000 MASL | 4.62/2.31A | €594.14 | |
| 00236AP3EAF143TZ-S | 2 hp | 60 Hz | 1.15 | 1.94-2.25/1.12A | Foot Mounted | 2 hp | 1000 MASL | 5.64-5.1/2.55A | €689.59 | |
| .7536AS3EAF56Z-S | 3/4 hp | 60 Hz | 1.25 | 0-1.1/0.55A | Foot Mounted | 3/4 hp | 1000 M.A.S.L. | 1.13/2.26-2.5A | €479.63 |
