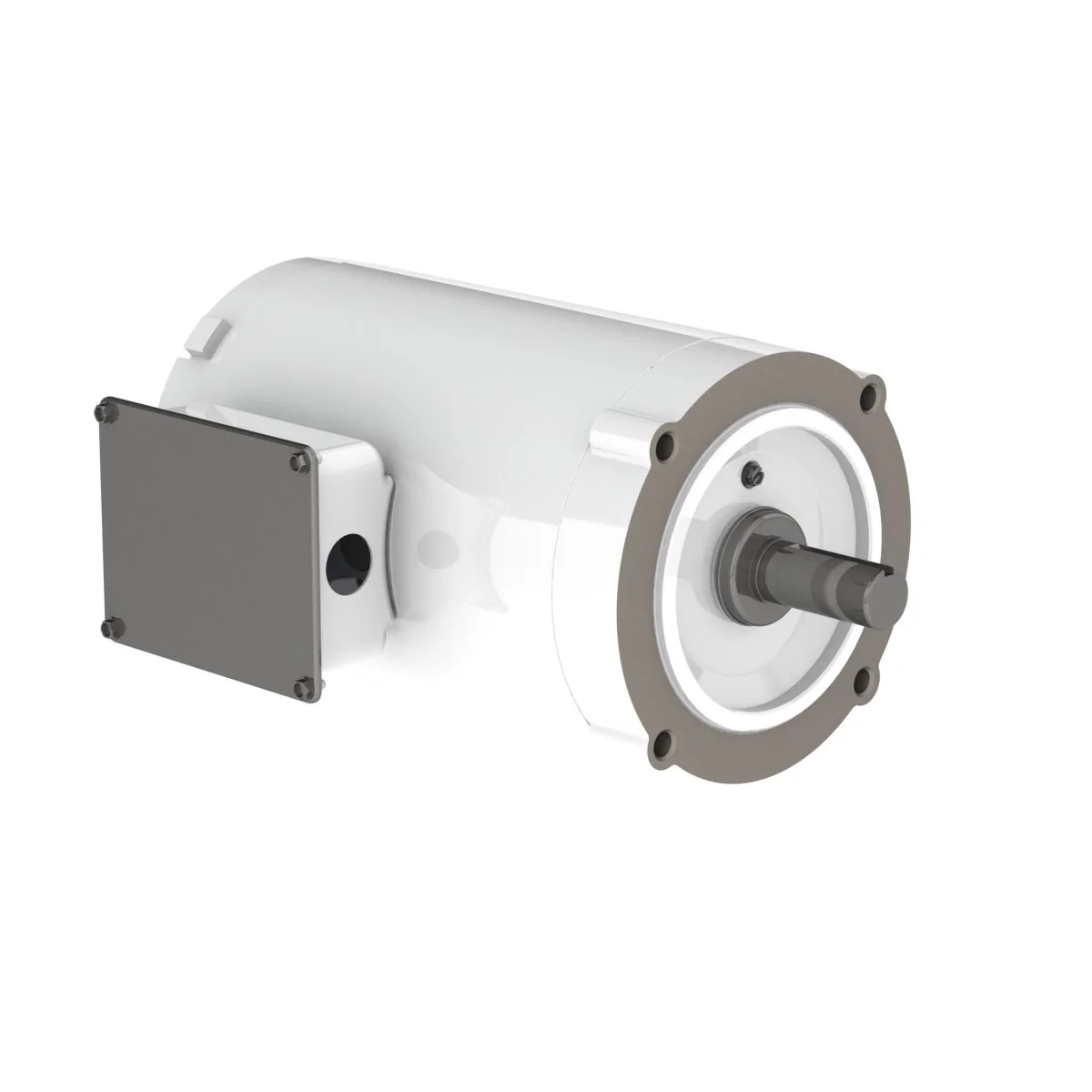

WEG 00236ET3ESS56CFL Electric Motor, 2Hp, 60Hz, 3600 Rpm
Get it by Thursday, Dec 18
€1,379.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Application | Washdown Stainless |
| Body Design | Rolled Stainless Steel |
| Ct Speed Range | 2:1 |
| Efficiency | 85.5% |
| Efficiency Type | IE3 Premium |
| Enclosure Iec | IP56 |
| Enclosure Nema Rating | Open Dripproof |
| Enclosure Type | Tefc |
| Frame | 56CFL |
| Frame Size | 56C |
| Frequency | 50/60 Hz |
| Horsepower | 2 hp |
| Hz | 60 Hz |
| Inverter Rating | Inverter Duty |
| Mounting Arrangement | F1 |
| Mounting Orientation | Horizontal |
| Nema Frame | NEMA 56HC |
| Nema Mount | C Face No Base |
| Output Hp | 60 hp |
| Output Kw | 1.5 kW |
| Output Rpm | 3430 RPM |
| Phase | 3 |
| Replaces | 00236EP3ESS56CFL |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Frequency | Hp | Frame | Efficiency | Rpm | Synchronous Speed | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| .5018EP3ESS56CFL | 230/460V | 60 Hz | 1/2 hp | 56CFL | 77% | 1800 RPM | 1800 RPM | Footless | €834.51 | |
| .7518EP3ESS56CFL | 208-230/460V | - | 3/4 hp | 56CFL | 78% | 1800 RPM | 1800 RPM | F-1 | €953.23 | |
| .5012EP3ESS56CFL | 230/460V | 60 Hz | 1/2 hp | 56CFL | 74% | 1200 RPM | 1200 RPM | Footless | €910.84 | |
| .5036EP3ESS56CFL | 230/460V | - | 1/2 hp | 56CFL | 74% | 3600 RPM | 3600 RPM | Footless | €740.05 | |
| .3318EP3ESS56CFL | 230/460V | 60 Hz | 33/100 hp | 56CFL | 76% | 1800 RPM | 1800 RPM | Footless | €807.88 | |
| .7512EP3ESS56CFL | 230/460V | 50/60 Hz | 3/4 hp | 56CFL | 77% | 1200 RPM | 1200 RPM | Footless | €1,044.06 | |
| .7536EP3ESS56CFL | 230/460V | 60 Hz | 3/4 hp | 56CFL | 75.5% | 3600 RPM | 3600 RPM | Footless | €816.35 |
