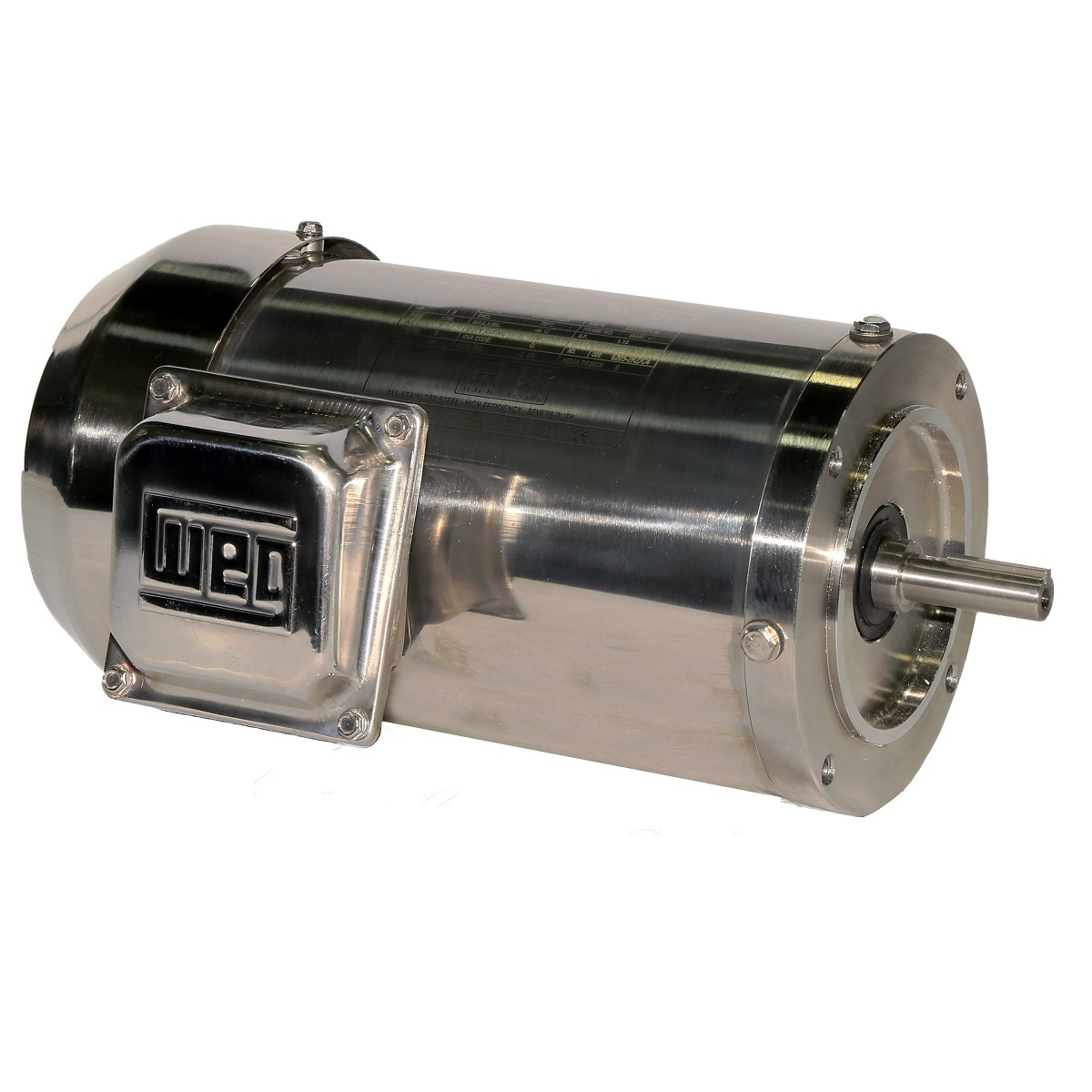

WEG .3318EP3ESS56CFL 14418899 Washdown Motor, 0.33 HP, 4 Poles, 56C Frame, 230/460 V, 60 Hz, TENV, Footless
0.33 hp
56CFL
1800 rpm
Get it by Wednesday, Jul 1
€807.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Application | Washdown Stainless |
| Body Design | Rolled Stainless Steel |
| Composition | Stainless Steel |
| Ct Speed Range | 2:1 |
| Efficiency | 76% , High Efficiency |
| Enclosure | Tenv |
| Enclosure Iec | IP56 |
| Enclosure Nema Rating | Totally Enclosed Non Ventilated |
| Feet | No |
| Flange | C |
| Frame | 56CFL |
| Frame Material | Stainless Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Hp | 33/100 hp |
| Inverter Rating | Inverter Duty |
| Motor Application | Shark |
| Mounting | Footless |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA 56C |
| Nema Mount | C Face No Base |
| No. Of Poles | 4 |
| Output Hp | 33/100 hp |
| Output Kw | 0.25 kW |
| Output Rating | 0.33 hp |
| Output Speed | 1735 RPM |
| Phase | 3 |
| Service Factor | 1.15 |
| Speed | 1800 RPM |
| Synchronous Speed | 1800 RPM |
| Terminal Box | Left Position |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 28.58 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Model | Voltage | Frequency | Hp | Frame | Efficiency | No. Of Poles | Synchronous Speed | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| .5018EP3ESS56CFL | 230/460V | 60 Hz | 1/2 hp | 56CFL | 77% | 4 | 1800 RPM | Footless | €834.51 | |
| .7518EP3ESS56CFL | 208-230/460V | 60 Hz | 3/4 hp | 56CFL | 78% | 4 | 1800 RPM | F-1 | €953.23 | |
| .5012EP3ESS56CFL | 230/460V | 60 Hz | 1/2 hp | 56CFL | 74% | 6 | 1200 RPM | Footless | €910.84 | |
| .5036EP3ESS56CFL | 230/460V | 60 Hz | 1/2 hp | 56CFL | 74% | 2 | 3600 RPM | Footless | €740.05 | |
| .7512EP3ESS56CFL | 230/460V | 60 Hz | 3/4 hp | 56CFL | 77% | 6 | 1200 RPM | Footless | €1,044.06 | |
| .7536EP3ESS56CFL | 230/460V | 60 Hz | 3/4 hp | 56CFL | 75.5% | 2 | 3600 RPM | Footless | €816.35 | |
| 00218ET3ESS145TCFL | 230/460V | 60 Hz | - | 145TCFL | 86.5% | 4 | 1800 RPM | Footless | €1,451.01 |
