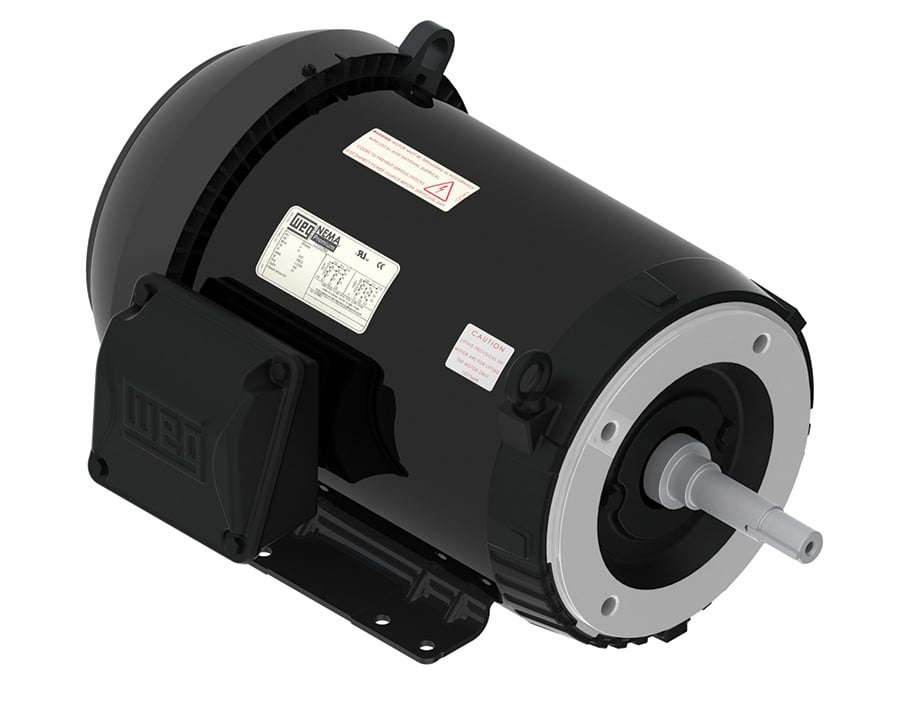

WEG 00236ET3E145JP-SG 14808964 Pump Motor, 2 HP, 3600 RPM, 208/230/460V, TEFC, 143/5JP, Footed, Close CoupLED Pump With Bearing Protection
3600 rpm
2 hp
145JP
Get it by Tuesday, Apr 7
€995.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Breakdown Torque | 300% |
| Cold Locked Rotor Time | 23 sec. |
| Connection Cables Quantity | 9 |
| Drain | Automatic, Rubber , Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 85.5% |
| Efficiency @ 50% | 82.5% |
| Efficiency @ 75% | 85.5% |
| Efficiency At 1 % | 89% |
| Efficiency At 50 % | 73% |
| Efficiency At 75 % | 83% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 143/5JP |
| Frame Type | 143/5JP |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 13 sec. |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 48.9/24.5A |
| L.r. Amperes | 24.5/48.9A |
| Locked Rotor Time (cold) | 23 sec. |
| Locked Rotor Time (hot) | 13 sec. |
| Locked Rotor Torque | 250% |
| Lrc | 9.9XA |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Max. Ambient Temp. | -20°C to +40°C |
| Moment Of Inertia | 0.1279 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1279 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 1.06/2.13A , 2.13/1.06A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output Hp | 2 hp |
| Output Power | 1.5 kW |
| Output Rating | 2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.73 |
| Power Factor 75% | 0.83 |
| Power Factor At 1 % | 85.5 |
| Power Factor At 50 % | 82.5 |
| Power Factor At 75 % | 85.5 |
| Power Factor_100% | 0.89 |
| Product Datasheet | weg-00236et3e145jp-sg.pdf |
| Rated Current | 2.47/4.94A , 4.94/2.47A |
| Rated Speed | 3520 RPM |
| Rated Torque | 2.98 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Grade | Grade SAE 1040/45 |
| Shaft Material | Carbon Steel |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Voltage | Service Factor | Hp | Rpm Range | Motor Design | Nameplate Rpm | Shaft Dia. | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3E143JP-W22 | 208-230/460V AC | 1.25 | 1 hp | 1701-1800 RPM | 3-Phase | 1760 RPM | 7/8" | 40°C | €811.98 | |
| 00156ET3E143JP-W22 | 208-230/460V AC | 1.25 | 1 1/2 hp | 3001-3600 RPM | 3-Phase | 3480 RPM | 7/8" | 40°C | €1,062.51 | |
| 00158ET3E145JP-W22 | 208-230/460V AC | 1.25 | 1 1/2 hp | 1701-1800 RPM | 3-Phase | 1755 RPM | 7/8" | 40°C | €1,075.03 | |
| 00236ET3E145JP-W22 | 208-230/460V AC | 1.25 | 2 hp | 3001-3600 RPM | 3-Phase | 3475 RPM | 7/8" | 40°C | €1,130.55 | |
| 00218ET3E145JP-W22 | 208-230/460V AC | 1.25 | 2 hp | 1701-1800 RPM | 3-Phase | 1755 RPM | 7/8" | 40°C | €1,177.78 | |
| 00336ET3E182JP-W22 | 208-230/460V AC | 1 | 3 hp | 3001-3600 RPM | 3-Phase | - | 7/8" | 40°C | €1,487.28 | |
| 00318ET3E182JP-W22 | 208-230/460V AC | 1.25 | 3 hp | 1701-1800 RPM | 3-Phase | 1760 RPM | 7/8" | 40°C | €1,454.02 |
