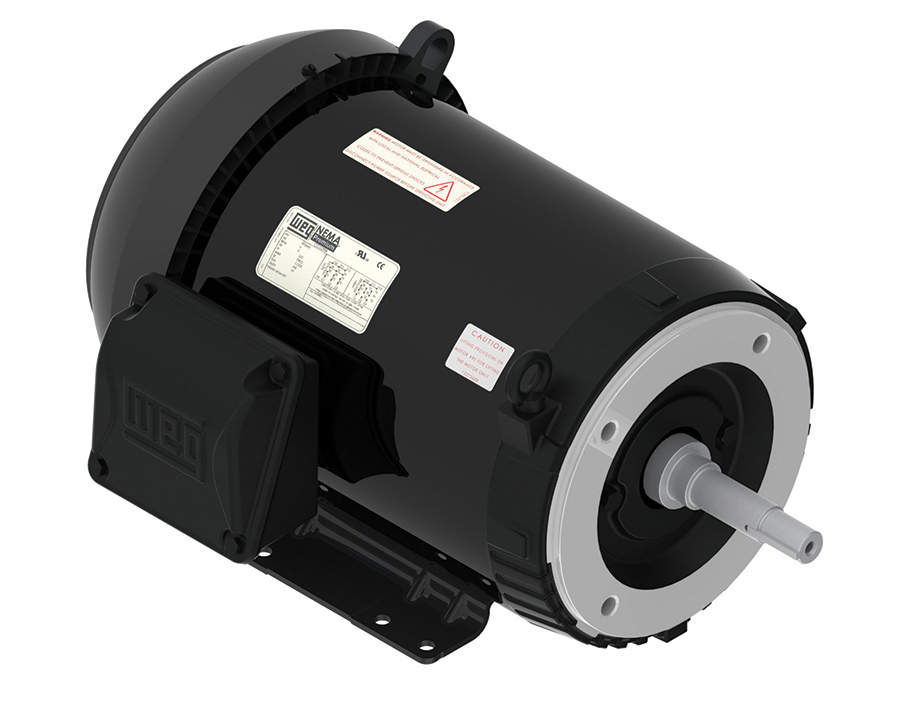

WEG 00318ET3E182JP-SG 14329711 Pump Motor, 3 HP, 1800 RPM, 208/230/460V, TEFC, 182/4JP, Footed, Close CoupLED Pump With Bearing Protection
1800 rpm
3 hp
184JP
Get it by Monday, Jul 6
€1,444.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.81/7.62A , 7.62/3.81A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 32 sec. |
| Connection Cables Quantity | 9 |
| Drain | Automatic, Rubber , Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 61% , 87.5% |
| Efficiency 75% | 88.5% |
| Efficiency @ 1 % | 81% |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 75 % | 74% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 182/4JP |
| Frame Type | 182/4JP |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 18 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 33.5/67.1A , 34.6A , 67.1/33.5A |
| Locked Rotor Time (cold) | 32 sec. |
| Locked Rotor Time(hot) | 18 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8.8X(Code K) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Max. Ambient Temp. | -20°C to +40°C |
| Moment Of Inertia | 0.4017 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.4017 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 2/4A , 4/2A |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Output Hp | 3 hp |
| Output Power | 2.2 kW |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.61 |
| Power Factor 75% | 0.74 |
| Power Factor @ 1 % | 89.5 |
| Power Factor @ 50 % | 87.5 |
| Power Factor @ 75 % | 88.5 |
| Product Datasheet | weg-00318et3e182jp-sg.pdf |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Grade | Grade SAE 1040/45 |
| Shaft Material | Carbon Steel |
| Slip | 1.94% |
| Speed | 1700-1800 RPM , 1765 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 8.93 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 39.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 57.05 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Voltage | Service Factor | Hp | Motor Design | Shaft Dia. | Max. Ambient Temp. | Frame Material | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118ET3E143JP-W22 | 208-230/460V AC | 1.25 | 1 hp | 3-Phase | 7/8" | 40°C | Cast Iron | S1 | €811.98 | |
| 00156ET3E143JP-W22 | 208-230/460V AC | 1.25 | 1 1/2 hp | 3-Phase | 7/8" | 40°C | Cast Iron | S1 | €1,062.51 | |
| 00158ET3E145JP-W22 | 208-230/460V AC | 1.25 | 1 1/2 hp | 3-Phase | 7/8" | 40°C | Cast Iron | S1 | €1,075.03 | |
| 00236ET3E145JP-W22 | 208-230/460V AC | 1.25 | 2 hp | 3-Phase | 7/8" | 40°C | Cast Iron | S1 | €1,130.55 | |
| 00218ET3E145JP-W22 | 208-230/460V AC | 1.25 | 2 hp | 3-Phase | 7/8" | 40°C | Cast Iron | S1 | €1,177.78 | |
| 00336ET3E182JP-W22 | 208-230/460V AC | 1 | 3 hp | 3-Phase | 7/8" | 40°C | Cast Iron | Continuous | €1,487.28 | |
| 00318ET3E182JP-W22 | 208-230/460V AC | 1.25 | 3 hp | 3-Phase | 7/8" | 40°C | Cast Iron | S1 | €1,454.02 |
