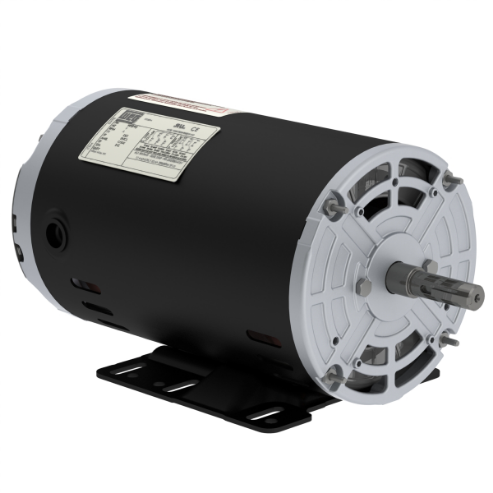

WEG 00218OT3E56-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB7LTA

WEG 00218OT3E56-S 12759194 Electric Motor, 2Hp, 60Hz, 1800 Rpm

Item: BB7LTAModel: 00218OT3E56-SCross Ref: 12759194
Check Availability
In Stock

Get it by Friday, Dec 19

€442.63 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break-down Torque 320%
Cold Locked Rotor Time 30 sec.
Connection Cables Quantity 9
Design A
Drip Cover Without
Duty Cycle Continuous
Efficiency At 1 % 81%
Efficiency At 50 % 61%
Efficiency At 75 % 74%
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Frame 56
Frame Material Rolled Steel
Frequency 50/60 Hz
Grounding Lugs Single
Horsepower 2 hp
Hot Locked Rotor Time 17 sec.
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
L. R. Amps 41.4/20.7A
Locked Rotor Torque 260%
Lrc 7.7X(Code K)
Moment Of Inertia 0.1168 lbs.-sq. ft.
Motor Speed 1740 RPM
Mounting Foot Mounted
No Load Amps 2.75/1.38A
No. Of Poles 4
Output 2 hp
Output Rating 2 hp
Overload Protector Without Overload Protector
Painting Only Primer
Phase 3
Power Factor At 1 % 86.5
Power Factor At 50 % 85.5
Power Factor At 75 % 86.5
Rated Current 5.38/2.69A
Rated Torque 6.04 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation Clockwise/Counter Clockwise
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.33%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Box Without Terminal Box
Tropicalized Painting Without
Voltage 230/460V

Shipping Info:

Ship weight (kg) 18
Ship height (cm)24.38
Ship length (cm)39.88
Ship width (cm)30.99
Country of OriginBR
