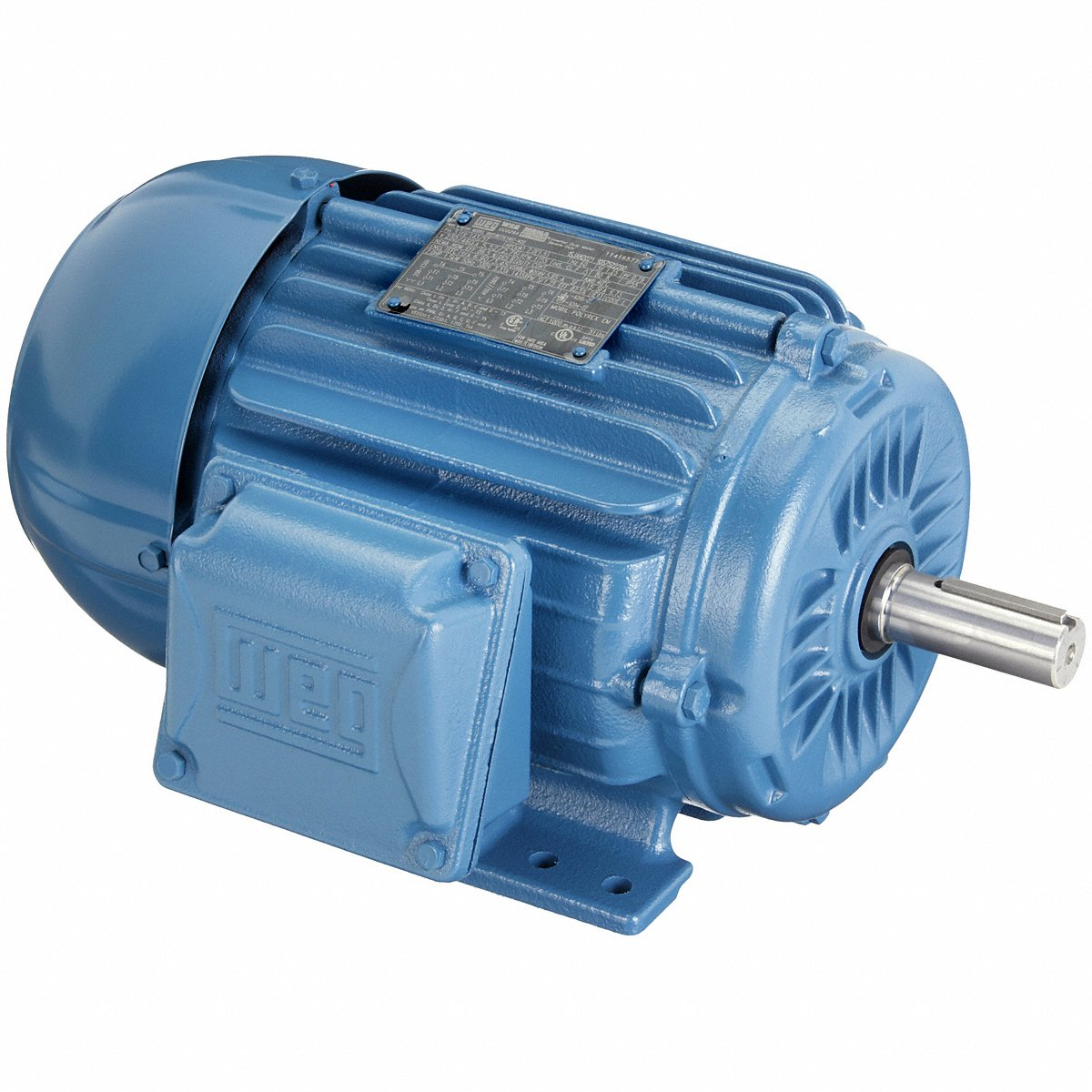

WEG 00218ET3E145T-W22 11416577 General Purpose Motor, TEFC Cast Iron 143/5T Frame, 2 HP, 1450 RPM, 415 V
1800 rpm
2 hp
145T
Get it by Tuesday, Apr 7
5.00% off
€765.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 104°F |
| Base Type | Rigid Base |
| Bearing Cap | No |
| Bearing Type | Ball |
| Breakdown Torque | 320% |
| Cable Press Material | Sem |
| Cc Number | CC029A |
| Connection Cables Quantity | 9 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency | 86.5% |
| Efficiency @ 100% | 86.5% |
| Efficiency @ 50% | 85.5% |
| Efficiency @ 75% | 86.5% |
| Efficiency Group | Premium |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 143/5T , 145T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 2.61/5.22-5.77A , 5.5/2.8A |
| Full Load Amps @ 50hz | 2.56/2.57/3.14/3.22/3.33A |
| Grounding Lugs | Single |
| Hp @ 50hz | 1 1/2 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip and Bake Polyester |
| Ins. Class | Class F |
| Insulation Class | Class F |
| L.r. Amperes | 23.2/46.3A |
| Length Less Shaft | 11 1/8" |
| Locked Rotor Time (cold) | 18 sec. |
| Locked Rotor Time (hot) | 10 sec. |
| Locked Rotor Torque | 270% |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Type | NPT |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 0.1561 lbs.-sq. ft. |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1755 RPM |
| Nema Design | B |
| No Load Amps | 1.63/3.26A |
| No. Of Speeds | 1 |
| Noise | 51 dBA |
| Noise Level | 51 dBA |
| Nominal Efficiency | 86.5% |
| Number Of Poles | 4 |
| Output Hp | 2 hp |
| Overall Length | 13 3/8" |
| Overload Protection | No |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.57 |
| Power Factor 75% | 0.7 |
| Power Factor_100% | 0.78 |
| Product Datasheet | weg-00218et3e145t-w22.pdf |
| Rated Current | 2.79/5.58A |
| Rated Speed | 1750 RPM |
| Rotation | CW/CCW |
| Rpm | 1750 RPM |
| Rpm Range | 1701-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 2.78% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 5.92 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 230/460/380V |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 33.93 |
| Ship width (cm) | 29.21 |
| HS code | 8501516040 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | €914.46 | |
| 00218ET3W100L-W22 | 1 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | €1,095.12 | |
| 00418ET3Y112M-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | €1,177.86 | |
| 00518ET3Y132S-W22 | 1 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | €1,613.01 | |
| 00718ET3Y132M-W22 | 1 | 50 Hz | Totally Enclosed Fan Cooled | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | Totally Enclosed Fan Cooled | 25 hp | 30.6A | 1775 RPM | - | Face/Base | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | Totally Enclosed Fan Cooled | 30 hp | 36A | 1775 RPM | - | Face/Base | €5,926.53 |
